Item No. NBS-395MBg NBS-3100MBg NBS-3105MBg NBS-3110MBg
Mono or Poly Mono
Maximum Power (Wp) 95 100 105 110
Maximum Power Voltage (Vmp) 23.52 23.52 23.52 23.67.
Maximum Power Current (lmp) 4.04 4.25 4.46 4.64
Open circuit Voltage (Voc) 29.02 29.02 29.02 29.02
Short circuit Current (lsc) 4.55 4.65 4.88 5.11
Size of solar cells (mm) 125*125
Number of cells (PCS) 48PCS(6*8)

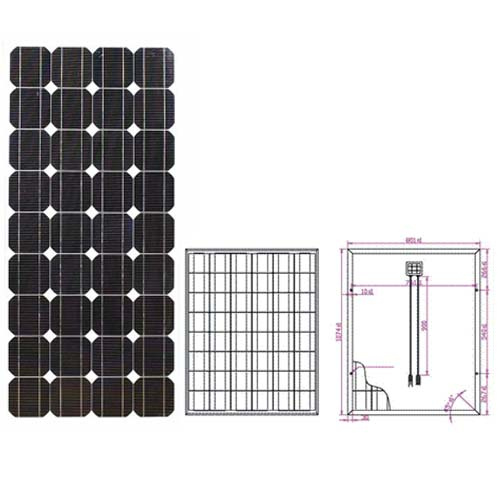

Size of module (mm) 1074*801*35
Weight (kgs) 10
Maximum System Voltage 1000V
Temp. Coefficient Voc -0.38%/c
Temp. Coefficient Isc +0.08%/c
Temp. Coefficient Power -0.6%/c
Operating Temperature -40c~+90c
Maximum Load Capacity 60m/s(200kg/sq. M)
Allowable Hail Load steel ball fall down from 1m height
Frame structure (Material, Corners) Aluminium
Junction Box Type Junction Box with TUV certificate
Length of Cable (mm) 900
Cell Efficiency (%) ≥ 12.3% ≥ 14% ≥ 14.8% ≥ 15.4%
Module Efficiency (%) ≥ 11% ≥ 12% ≥ 13% ≥ 14%
Power Tolerance ± 5%
Standard Test Conditions AM1.5, 1000W/m2, 25c
Warranty 3 years product warranty and 20 years 90% of power, 25 years 80%
Zogo Electronic Science and Technology Co., Ltd. is located in Ningbo, Zhejiang province, China. It is a company of high-tech and specialized in developing, manufacturing and trading crystalline silicon solar panel, solar module, solar engine, solar street light panel and other solar products. Our annual production capacity amounts to 30WM. In order to make sure that our solar products have high performance on stability, durability, sealing and firmness, we employed talented and experienced R&D and management team and are equipped with world-class production and testing equipment. We supply excellent service for customer, we are not only available to supply products with good market, but also, according to customer's requirements, we can develop new items with most reasonable and cost-effective features.
With the growing world energy shortages and increasing greenhouse effect today, solar power as a renewable and green energy definitely becomes the first choice for the 21st century. Having the good will for green fashion, green civilization, Zogo Electronic Science and Technology Co., Ltd. Would like to join hands to promote clean energy to protect our living planet.
