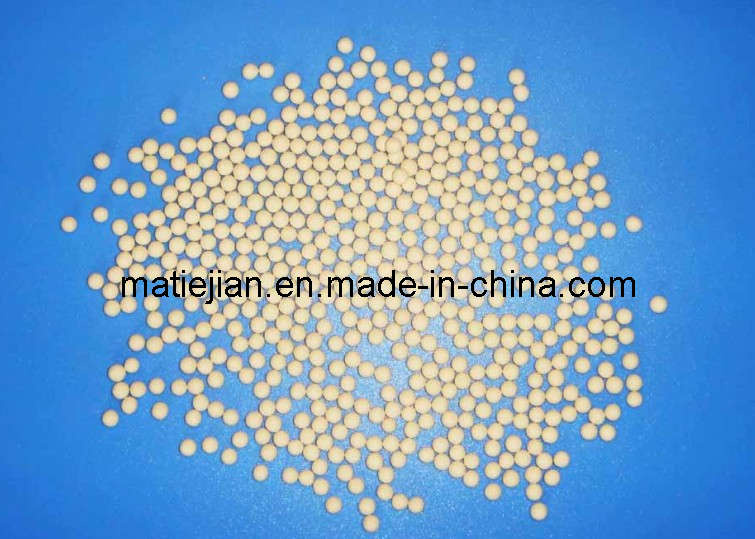

JLOX is the lithium form aluminosilicate with X type crystal structure. And it is specially developed and designed molecular sieve for oxygen production from air with international advanced lever.
Application:
JLOX is mainly used in PSA oxygen concentrator device, with the characteristics of higher N2 adsorption capacity and N2 with O2 selectivity, easy desorption and etc. Its N2 adsorption capacity is 2-3 times larger than A type oxygen making molecular sieve, while the O2 and N2 selectivity is twice of A type oxygen making molecular sieve.
So, it can significantly increase the economic benefits of oxygen production by lowering operating costs and energy consumption.
Packing:
55 gallon air-tight iron drum,
Other packing according to your requirement.
|
Property |
Unit |
Bead |
Note |
|
~ |
JLOX-100 |
JLOX-101 |
JLOX-102 |
JLOX-103 |
|
Diameter |
mm |
1.6-2.5 |
0.4-0.8 |
0.8-1.3 |
1.2-1.6 |
|
N2 Adsorption Capacity |
NL/kg |
≥ 19.5 |
≥ 19.5 |
≥ 19.5 |
≥ 19.5 |
1bar 25degree |
|
N2/O2 Selectivity |
~ |
≥ 6.2 |
≥ 6.2 |
≥ 6.2 |
≥ 6.2 |
1bar 25degree |
|
Crush Strength |
N |
≥ 25 |
~ |
~ |
≥ 15 |
Average |
|
Bulk Density |
g/ml |
0.60-0.68 |
0.60-0.70 |
0.64 |
0.63 |
Settled |
|
Loss on attrition |
%wt |
≤ 0.1 |
≤ 0.3 |
~ |
~ |
~ |
|
Particle Ratio |
%wt |
≥ 97 |
≥ 95 |
≥ 95 |
≥ 95 |
|
|
Loss on Ignition |
%wt |
≤ 1.5 |
≤ 1.5 |
≤ 1.5 |
≤ 1.5 |
575degree, 1h |
Luoyang Jianlong Chemical Industrial Co., Ltd. is a professional producer specialized in Zeolite molecular sieve and sodium silicate synthesis and manufacturing. The product ranges from synthetic zeolite properties A, X and Y, activated Zeolite powder of Properties A and X to quick-dissolving sodium silicate powder. Meanwhile, the company can also provide customized product such as 3A-D, 4A-5, 5A-D, 13X-D and 13X-5 etc. In 2005, Jianlong newly introduced LSX, NaY and CuX to the market.
We hope we can provide a good service to vary industrial field and meet every customer's needs. Our principle is: Promise is Guarantee! In 2004, the company was assesed and registered by NQA against ISO9001/2000.
