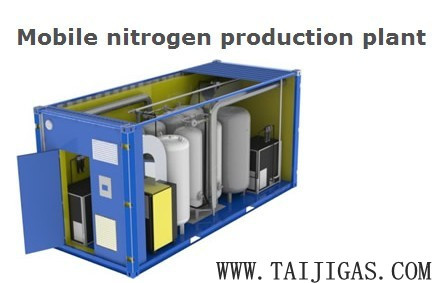

Mobile nitrogen production plant
Mobile nitrogen production plant is an nitrogen generating system built in ISO container.
The nitrogen is produced from compressed air by pressure swing adsorbtion technology. The compressed air system as well as the separation system is integrated in the container.
Features:
1. Transportable (pass for fork-lift and bolt-on ISO corners)
2. Turnkey, plug&play solution
3. Designed for outdoors - the container is an excellent protection against rain and sun
4. Automatic start and stop operation
5. Standard outlet pressure 5barG; Higher pressure available on request
6. Purity range from 95% to 99, 999%
The unit is equipped with surveillance system and audio visual alarm as an option.
Technical Specification: Capacity: 2 to 300 Nm3/h
Purity: 95% to 99.999%(10ppm)
Pressure dew point: -50° C
Operating conditions: -20° C to 40° C (50° C)
ISO container 20ft. (10ft. )
Dimensions: 6.1x2.5x2.6m (3.1x2.5x2.6m)
Power consumption: From 0.21 kW/m3 at 95%
From 0.32kW/m3 at 99.5%
From 1.0kW/m3 at 99.999%
The unit designed for high ambient temperatures is furnished with container insulation and air conditioning; The surface is treated with special coating.
Mobile nitrogen production plant is preferred compact solution design for outdoors, can be placed on the roof of the building or in the remote area. If you have specific requirements, do not hesitate to contact us and we will design you a solution to meet your requirements.
Nitrogen from this containerized nitrogen generating unit is being used in many applications e. G. As inert gas in coal mining or petrochemical industry or cutting gas in laser cutting.
Hangzhou T&J Industrial Gas-equipment Co., Ltd. Is an aggressive and competitive company.
T&J company is a technology enterprise specialized in R&D, design and manufacture of various air separators and cryogenic application equipments. T&J company always insists on taking the technology as the motility, emphasizing technique and products innovation, cooperating with many scientific and research institutes, academic schools which are in the same industry range with us. On the basis of integration into advanced design concept and strict management procedure and the outstanding production technique and give the enthusiastic service support. Decisive adoption of new processes, new technology, the R&D and manufacturing capability of the company is enhanced and the development is oriented to the Saving Energy variety and perfection of the products. We have a development and production base in Hangzhou China, and a network of installation and after-sales service that supports people around the world and provides standard service to every corner of world.
The products of T&J company cover the fields of metallurgy, petrochemical industry, electronics, machinery, construction material, Medicine, New materials which have been well received all over the country and also been supplied to many Asian and African countries. The main products are: The medium and small size oxygen nitrogen plants, liquid oxygen and liquid nitrogen plants, oxygen and nitrogen liquefaction plants, high purity nitrogen generators, molecular sieve pressure swing adsorption plants, PSA (VPSA) oxygen (nitrogen) plants and gas purification drying equipment.
In addition to provide high-quality products, T&J company also undertakes technical consulting, engineering design, equipment installation, technical training and other services, and implementation of the turn-key project. Sincerely welcome your contact and visit to the company.
