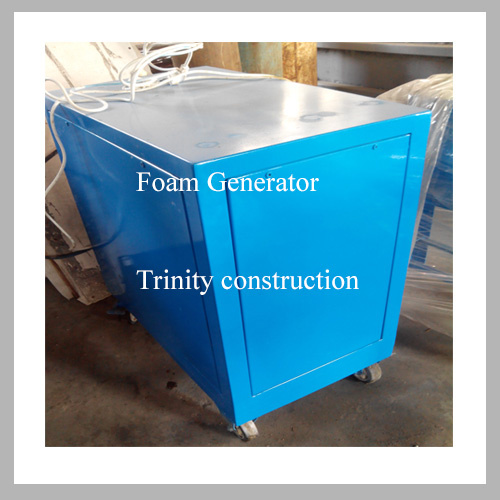

Foaming Generator
FG-20 is a machine that makes foam out of foaming agent.
StructureSmall, and movable with wheels; two buttons finish entire operation.
Features:1. 0.3 m3 per minute and 20 m3 per hour output
2. Small, only needs 0.5m2 space
3. Total weight about 100kg, easy to move up and downstairs
4. Even texture and orderly distributed bubble pore, low water content, low dosage input, and low cost.
5. The Generator works great with good viscosity foaming agent.
6. Top market quality motor, stable quality and performance.
7. New design and folding process, use car paint.
Application Area1. block
2. wall panel
3. Garden stone
4. Exterior Insulation Panel
5. Small scale on-site construction
FG-20 Technical ParameterOutput: 0.3m3/min
Power: 3.5kw
Weight: 120kg
Dimension: 900×600×900mm
Voltage: 380v, 50-60Hz
Foam Diameter: 0.1~2mm
Parts List1. Use & Care Manual
2. Air compressor gasket and piston ring: one set
3. One meter long wire tube
4. Siemens motor one set
Remarks: The Generator reaches its maximum potential with our TM series double shaft mixer.
Trinity Construction, a foam concrete machinery manufacturer and solution provider, is mainly engaged in foam concrete Total Solution machine, foam generator, foam concrete mixer and foaming agent research and fabrication. Its products had been exported to over 20 countries and areas, such as Australia, Canada, Vietnam, Honduras and the Middle East.
Adhering to the principle of "Pragmatic and exquisite, " it actively improves the product quality and service. The employees are dedicated and dependable, always ready to serve each customer with a warm pre-sale, sale and after-saless attitude, eager to supply you with a product that fits your needs.
Trinity Construction is a member of China Foamed Concrete Association and China Internaitonal Chamber of Commerce. Trinitt foam concrete machine had got six patents, and first company to get CE identification.
Now we use new technology and skills for machines, quality is better, types is more modernization.
