Home Generator Products Mixing Tube (HH-M20 - CE Approval)

Mixing Tube (HH-M20 - CE Approval)

Mixing Tube (HH-M20 - CE Approval)
Price: Negotiable
Min Order: 1
Item: Mixing Tube
Model: HH-M20

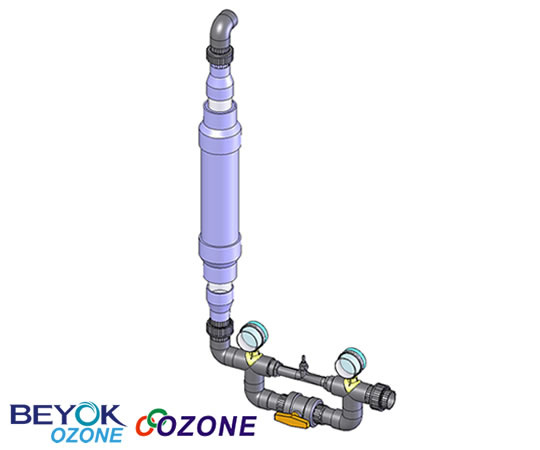

BEYOKozone mixing systems are used for maximum mass transfer efficiency. The injector produces a cavitation effect, enabling the ozone gas to join the water stream in the form of extremely tiny bubbles. These bubbles must be as small as possible in order to increase the ratio of bubble surface area to the amount of ozone entering the water.

Mixing Tube (HH-M20)specifications:
Capacity: 1 GPM @ 15 PSI Inlet Pressure (3-10 ton)
Water Inlet & Outlet Dia: DN63
Suction Port: 1/2-in barb shank & 1/2-in MNPT
Construction Material: PVC tubing, PVDF body, Teflon ball, Kel-F seat, Hastelloy-C spring
Check Valve: Included - in the suction port
Supply Water Requirement: Water temperature between 0º C-60º C, water pH value between 5-11
Dimension (LxWxH): 3.7" x 2.3" x 1.5" (95x58x39 mm)
Net Weight: -lb (kg)
Mixing Tube (HH-M20) features:
Durable PVDF construction
Completely ozone compatible
Check valve included in injection port
Quick installation
If you are interested in the kind of Mixing Tube (HH-M20), please feel free to contact With us.
Prod Model: HH-M20
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Eastern Asia,Western Europe
Size: (Lxwxh): 3.7" X 2.3" X 1.5" (95x58x39 Mm)
Certification: ISO CE
CINH Group Co., limited is a group limited company, has been engaged in the research and development of ozone generators and tools and low voltage electrical for more than fifteen years. With our years of experience of designing and manufacture products, we have been a well-known group company in this industry in China. We have our own professional research institute and several industrial parks and branch companies in different cities in China, the products have obtained VDE, RoHS, CE, cb, UL and GS and kema certificates.

We can design and manufature products according to the customers' special demand. Our products have been exported to many countries, and the amount of products exported to other countries continues to grow, "BEYOK" and "CINH" brand will go to worldwide.

Providing you the customer with high quality, professional products and satisfying service is always our belief. Our technology and experience in ozone industry make it to be reality.

If you need more information please contact us at any time. We will be very glad to hear from you soon.
