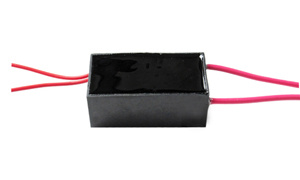

DC high voltage generator
Applicable to security equipment
Produce bright spark
Feature encapsulation techniques providing high reliability and low cost
Adapt epoxy potting to avoid damp, shock and high temperature resistance.
I. Specification
Size(mm): 60 X 33 X 25
Weight(g): 105
Current(MA): 800-1000
Input voltage(VDC): 12
Output voltage(KVDC): 11
Igniting distance(mm): 10
Diameter of the input wire(mm): 2± 0.03
Diameter of the ouput wire(mm): 3.2± 0.03
Length of the output(mm): 300
Length of the input(mm): 550
II. Principle
DC inverter transformer through a small boost to around 10000V AC high voltage.
DC power supply: 2.4V-24V
Output voltage: 2000V-12000V
Professional factory of high voltage igniters
High-voltage igniter for security equipment
We have been engaged into the research and development of various high voltage igniter for security apparatus since foundation, and after over ten years' effort, now we have more than 100 types of product which are extensively used in electric batons, anti-theft doors, anti-theft cases, automobile anti-theft seat mats, bank anti-theft and warning systems, etc home and abroad. After many years' practice, our products have won lots of loyal customers because high voltage output, stable working performance and low damage rate, etc.
High-voltage igniter for eco-friendly equipment
Series TWHB high voltage igniter developed by our plant to satisfy the market demand are respectively applicable for oil fume purification, air purification and water purification. The working principle is that alternating current 110V or 220V is transformed into high voltage alternating current of 15KV above via the high voltage igniter by the unique electronic process and electric field polar plates. A high voltage static electric field is generated by the negative and positive plates and thus corona of oil fume flowing through the field happens. Oil fume particles charged are absorbed on the polar plates by the strong electric field for further removing. The energy output of this series of product is quite large, and two groups of high voltages can be delivered at the same time. The product is integrated with stable performance, high reliability and dual protection from overloading and overheating. The technical content has reached the internationally advanced level, and products are exported to Taiwan, Japan and Europe.
Jiangsu Tianwang Solar Technology Co., Ltd., founded in 1990, produces high-voltage electric products, such as stun guns, electric mosquito swatters, high-voltage generators(ignitor). We have a talented R&D team, capable workers on line and brilliant sales team.
During the past 20 years, we have been persisting in the spirit of "Fine Quality, Science and Technology, Unity, Cooperation". We have well-trained staff working in our company. They are the key of guaranteeing good product quality. We have founded an integrated system of material purchase, reasonable electric circuit arrangement, advanced manufacturing techniques, perfect detection artifice, rigorous quality track and feedback as well as excellent after-sales service. All of these guarantee the realization of "Quality First" and "No Faulted Products". Thereby, our company has won trust as well as support from customers at home and abroad.
We will persist in "Faithful Cooperation" and provide more new products. We would like to try our best to offer excellent services too. We are longing for your cooperation.
