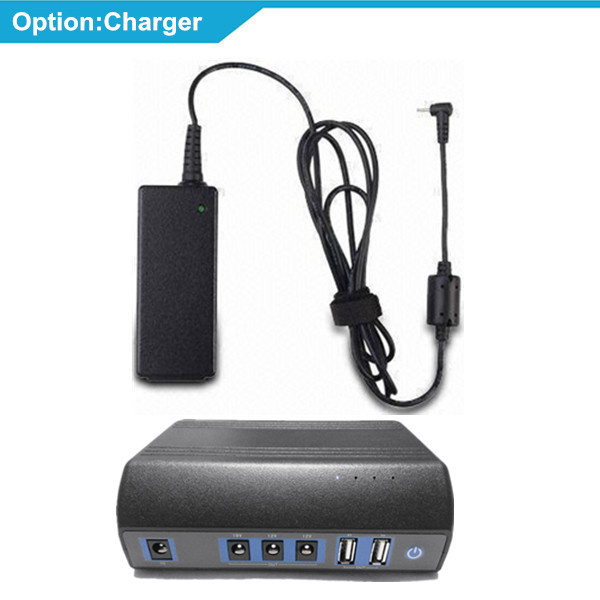

mini solar power box battery energy generator for emergency lighting
Specification:
solar mobile power supply
1.Home use,portable,universal,
2.Over 5 appliance can work in the same time
3.Long back up time.
4.Logo,OEM,ODM welocme
5.Factory price
Product Description
Input | Item | Min | Standard | Max | Unit |
| 1.1 | voltage of solar panel | 18 | 21 | 22 | V |
| 1.2 | current of solar panel | - | 1.3 | 1.5 | A |
| 1.3 | max power point of solar panel | - | 16.8 | - | V |
| 1.4 | power of solar panel | 20 | - | - | W |
| 1.5 | voltage of charger adapter | 18 | 19 | 20 | V |
| 1.6 | current of charger adapter | 1 | - | - | A |
| 1.7 | convert rate of charger adapter | - | 88 | - | % |
Features
Solar Panel Output Characteristics |
| Item | Mini unit | Standard | Max unit |
| Adapter Voltage | 18V | 19V | 22V |
| Adapter charging current | 0.9A | 1A | - |
| Adapter charging transfer efficiency | - | 88% | - |
| Solar panel voltage | 18V | 21V | 22V |
| Solar panel max power point voltage | - | 16.8V | - |
| Solar max output current | - | 1.5A | - |
| Solar panel charging transfer efficiency | - | 80% | - |
| Lithium Battery Storage Output Characteristics |
| Item | Mini unit | Standard | Max unit |
| 19V output port voltage | 18V | 19V | 22V |
| 19V output wave valtage | - | 0.2V | - |
| 19V output current | - | 2.5V | 3.2A |
| 19V output over-current protected rate | - | 3.2V | - |
| 19V output transfer efficiency | - | 85% | - |
| 12V output port voltage | 11.2V | 12V | 12.6V |
| 12V output wave valtage | - | 0.3V | - |
| 12V output current | - | 2A | 2.8A |
| 12V output over-current protected rate | - | 2.5A | 3.2A |
| 12V output transfer efficiency | - | 92% | |
| 5V output port voltage | 4.6V | 5V | 5.3V |
| 5V output wave valtage | - | 0.3V | - |
| 5V output current | - | 3A | 3.8A |
| 5V output over-current protected rate | - | 3.4A | 4A |
| 5V output transfer efficiency | - | 90% | - |
| Inside Power Box Lithium Battery PCB Characteristics |
| Item | Mini unit | Standard | Max unit |
| Over-discharged voltage protection | - | 11.2V | - |
| Over-charged voltage protection | - | 16.8V | - |
| With loading current | - | >10A | - |
Packaging & Shipping
DC Cable | 2PCS |
| 20W Solar panel | 1PC |
| DC Connectors | 8PCS |
| Lithium battery storage | 1PC |
Company Information
Richroc is a manufacturer of producing E-Bike battery pack,verious lithium-ion battery pack,mobile powerbank and 5V/9V/12V UPS, please contact us right now to get more information......
FAQ
Q: What does this 12V mini ups Do?
A: The Router Mini-UPS powers your ADSL modem during power outage; simply plug it into the ADSL modem to keep the router switched-on for up to 3 hours when the power is out.
Q:What are the specifications?
A: Model: UPS12V12A
Capacity: 14.8wh
Input voltage: 12V±5%
Input current:≤1000mA
Output voltage:12V±5%
Output current:≤1000mA
Working temperature:-20°C~65°C
Charging time: 5~8 hours
Weight:≤153g
Size: 111x60x26mm
Q: Can I use it for other devices?
A: The Router Mini-UPS is designed to support the ADSL modem and all 12V/2A electronic products
Q: How can I maintain the device lifetime?
A: When stored, the Router Mini-UPS will self-discharge at a rate that is greatly affected by the ambient temperature. The Router Mini-UPS should therefore be fully charged before being put into storage and if it is to be stored for a long period it should be recharged periodically to prevent it from losing its original capacity. As a guide, the Router Mini-UPS should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the Router Mini-UPS was not used for long time, it is suggested to charge it once every 3~5months
