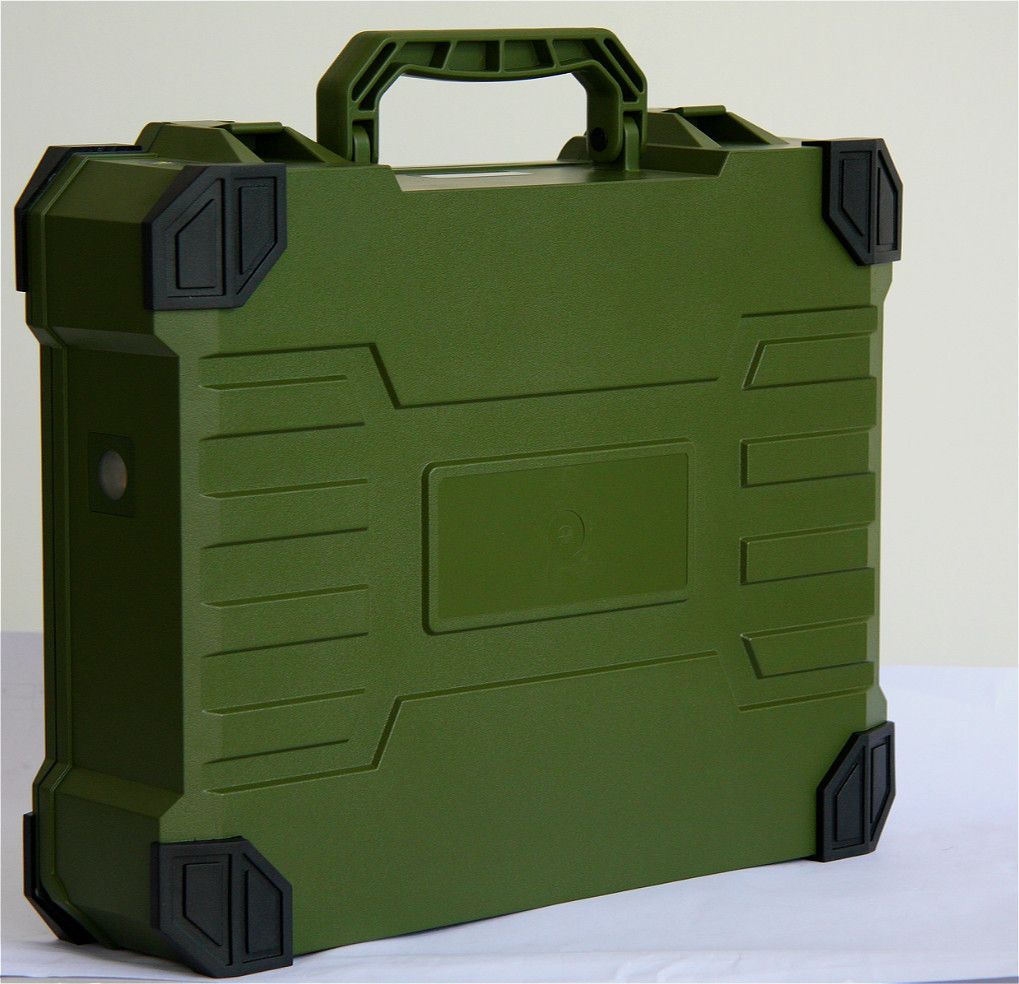

This solar power emergency standby system is designed for the rural areas, health center, farmers and herdsmen, outdoor camping, travel, military and other usage of small ac and dc power supply system. This product operates easily, convenient to carry. Fit for home, office, or the workplace. Being a nice choose for alternative of driving power supply of home appliance. Such as TV, acoustics, game consoles, lighting, fan, notebook computers, mobile phones and electric tools. The system contains Solar panels, controller, inverter and battery, they are all these installed inside the case.
the capacity could be ordered as per customers own requests as well as other data.
normal style are from 20w, 50w, 16AH, 32AH, 48AH.
Packing details:
Unit net weight: 10.5kg
Accessories: AC charging wire
Selectable accessories: 5 meters solar panel extension wire
Case material: ABS
Case size: 452*347*137mm
Packing: 1pc/box,2boxes/ctn
Gross weight for packing: 13kgs/box
1. Construction description:
1. Solar panel
2. 3W LED lamp
3. 3W LED lamp button
4. LCD display
5. Hand shank
6. Master switch
7. Interface of charging and discharging
8. Waterproof safe cap
2. interface of charge and discharge
1. AC switch
2.100~240V AC output
3. 100~240V AC input
4. 12V~23V DC input
5. DC switch
6. 12Vcigarette lighter
7. 12V DC output(5.5*2.5mm)
8. 12V DC output(5.5*2.5mm)
9. 5V USB output
How to`s on charging under the sun light
2 ways:
1) open the power box when under the sunlight, and then you can start charging (battery power capacity indicates up going), please ensure that solar panels could catch the sun as much as possible.
2) connect the power box with an additional solar panels (maximum power 50 w) with ~ 23 v dc 12 v input interface, and put the solar panel right under the sun, ready for charging.Please turn off the power box or remove the solar panels when the LCD indicates the battery capacity being 100% in order to protect the storage battery.
How to`s on charging with the civil public electricity grid
2 ways:
1) connect to the power box 100 v to 240 v ac input interface with a AC charging wire .
2) connect to the public grid with a AC wire at the other end of the wire .
When the battery is full of to 100% , please remove the charging cable.
How to`s on charging with car charger unit
2 ways:
1) connect the car charger wire onto the power box ~ 23 v dc 12 v input interface
2) connect the other end to the car charger and drive the car. Start charging.
When the battery is full of 100%, please remove the charge wire.
Attention:
Because this output rate is larger, there will be slight sparkle occur during larger loading or short-circuit under the condition of output, so, cannot be used in inflammable and explosive gas environment , must be careful when operate, avoid the wrong connection and short circuit operation, connect the AC output to the public electricity grid is Forbidden !
the best storage capacity of this system is being from 50% ~ 50%, so if the system will not be in service for a long time, please leave it as a half capacity charged, and recharge after 2-3 months to be fully charged, then put in service with a half of the capacity, and then stored in a cool and dry place with no direct sun lighting,
in order to ensure the system running smoothly for a long life, do not charge when the capacity used out, suggest to charge when the balance capacity being around 10% remaining
set the system under a cool, well-ventilated place to work. It will stop automatically as starting the overheating protection when the system keep running AC full loading for one hour under 40 ºC ambient temperature, it need wait for around 10 minutes to the next starting.
Packaging
Selling Units: | Single item |
| Single package size: | 45X37X14 cm |
| Single gross weight: | 13.0 KG |
| Package Type: | Unit net weight: 10.5kg Accessories: AC charging wire Selectable accessories: 5 meters solar panel extension wire Case material: ABS Case size: 452*347*137mm Packing: 1pc/box,2boxes/ctn Gross weight for packing: 13kgs/box |
