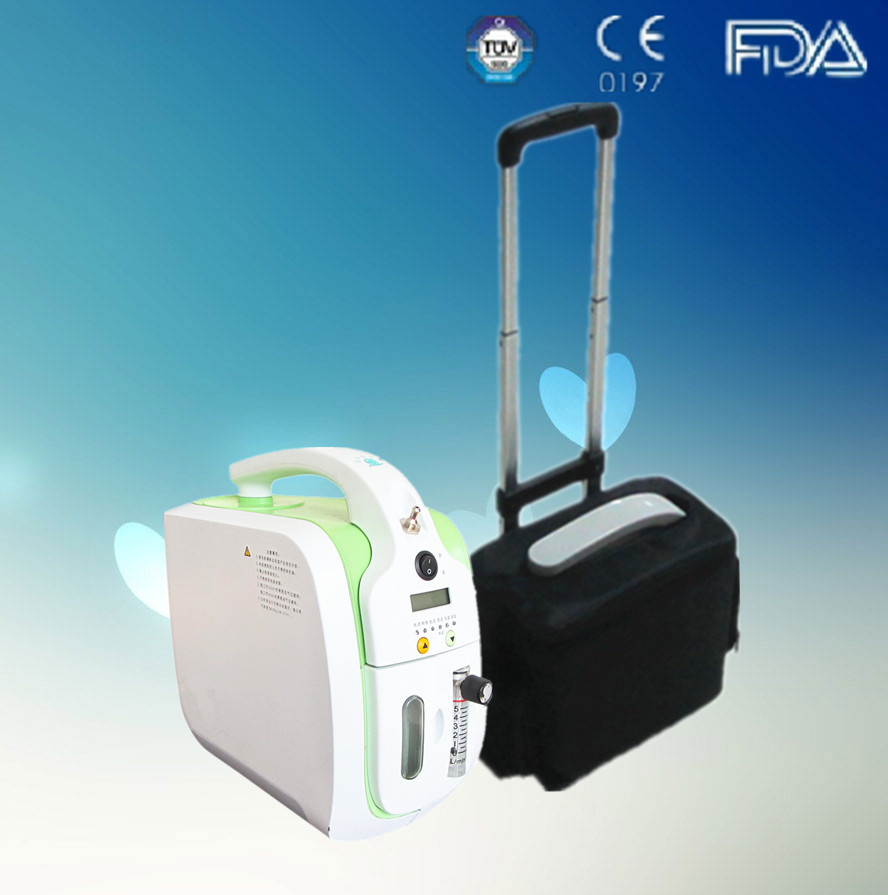

JAY-1 MINI OXYGEN CONCENTRATOR
1-5L/Min Portable Oxygen Concentrator
Our JAY-1 1-5L/min portable oxygen concentrator adopts pressure swing adsorption (PSA) physical technology to produce oxygen thus is safe and economical to use.
Application
Designed with small and exquisite plastic housing, our portable oxygen producing machine can be used while you are out. No matter for young men on business or older people on travel, our oxygen generating machine is an ideal choice. Due to its small size and oxygen concentration which is as high as 90% for 1L oxygen flow, this portable oxygen concentrating machine is also suitable for making cocktail.
Features
1. Free oxygen inhalation time setting: The user can adjust oxygen inhalation time according to practical need.
2. Flexible choice of oxygen concentration: Oxygen concentration can be adjusted in the range of 30%-90%.
3. Free choice of oxygen flow: The oxygen flow of our portable oxygen concentrator can be easily switched from 1L/min to 5L/min through the knob.
4. Transportable and available for being mounted on vehicle: Our oxygen generation plant can work wherever there is air and electricity such as in an automobile.
5. Excellent quality: Since our company is a professional oxygen generator manufacturer, the products we offer are safer and more reliable in quality.
6. Ultralow noise: Thanks to the low-noise design, our product can run stably and only makes noises lower than 40dB while working.
7. Large-area ventilation panel: Our portable oxygen concentrator adopts front-mounted ventilation design which facilitates oxygen concentrating and extending the service life of motor.
Technical Parameter
| 1.Oxygen Flow (L/min) | 1-5 |
| 2.Oxygen Concentration (%) | 90-30 |
| 3.Oxygen Pressure (Mpa) | 0.03-0.07 |
| 4.Noise (dB) | ≤45 |
| 5.Dimension(mm) | 350×190×320 |
| 6.N.W. (kg) | 6kg |
| 7.Rated Power (W) | ≤75 |
| 8.Power Supply(V) | AC220V/110V; |
| 9.Option | DC12V; Trolley bag; Strapped bag |
Longfian Scitech Co., Ltd, located in Longxing Building A(413), 77 Longxing Road, 071051 Baoding China, The company has first-class professional management personnel and research&development technical team, with their own product development capabilities, mainly engaged in medical molecular sieve oxygen concentrator as well as assorting the development of electronic products, now has a variety of standard models and a variety of uses oxygen concentrator, has successfully developed JAY-1, JAY-2, JAY-3, JAY-5, JAY-6, JAY-8, JAY-10 type normal pressure medical oxygen concentrator, JAY-10-4.0, JAY-15-4.0, JAY-20-3.5 with 0.14 ~ 4KG pressure of high-pressure oxygen concentrator, industrial oxygen concentrator and ozone generator etc.; The product has got EU's CE certificate, ISO certificate and FDA certificate, and exported to the United States, France, Spain, Germany, Russia, India, Singapore, Turkey, Thailand etc. More than 60 countries and regions, enjoy a high reputation in Foreign markets
In recent years, the company has joined OEM companies and developed some related medical products for the demands of market, especially for pulse oximeter, SpO2&Blood pressure monitor, SpO2&ECG monitor, syringe pump, infusion pump, etc.
Our goal is "PROFESSIONAL IN QUALITY, FOCUS ON RESPIRATORY PRODUCTS ", to meet the demands of various specialists of medical field and continue to bring you not just the innovative equipment but also the most reliable, long-lasting & quality products.
