Home Generator Products Mini 4000W Solar Generator Sets System (FC-MA4000-A)

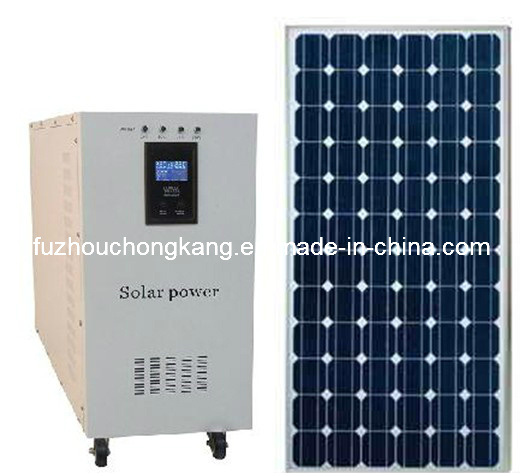

Mini 4000W Solar Generator Sets System (FC-MA4000-A)

Mini 4000W Solar Generator Sets System (FC-MA4000-A)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Western Union
Item No: FC-MA4000-A

Applications:
1) Lighting, Fans, Computer, Printer, Water pump, Refrigerators, Washing, Air-conditioning, Electric cooker, Electric motor, Electric drill, etc
2) Household electricity, Traffic, Communication, Meteorological, Building, Field, Offic, Market, Farm. Etc.

Features:
1. Solar Penal: Module efficiency up to 17.1% achieved through advanced cell technology and manufacturing capabilities. Sealed with high transparency low iron tempered glass, anti-aging EVA, high insulation TPT, with the anodizing (or plating finish), High stability with guaranteed+/-3%power output tolerance, ensuring return on investment, Withstands high wind-pressure and snow load;

2. Solar Battery: High-quality sealed valve-regulated lead-acid batteries, the professional design and technology, excellent deep discharge performance, capacity does not decay, no memory, 3-5 years of life, 2 -year warranty;

3. Solar Controller: The latest process technology, precise over-discharge, overcharge, overload, Temperature compensation, etc., Protection function, exquisite beauty indicator, easy to distinguish the solar system working state.

4. Inverter: Inverter technology of pure sine wave, AC power output equal to the commercial power supply, with high conversion efficiency above 90%(The market a lot of inverter output AC power is not stable, long-term use can damage electrical appliances). Precise protection with a low voltage, high voltage, 200% instant anti overload ability, the operating temperature range -10º C~50º C.

5. Beautiful appearance, Easy to install.


Quality and Safety:
1. Solar Panel: 25-year transferrable power output: 5years/95%, 12years/90%, 18years/85%, 25years /80%. Warrants 6.7% more than the market standard over 25years. 8-year material and workmanship warranty.
2. Rigorous quality control meeting the highest international standards;
3. ISO9001: 2008, ISO1400: 2004(Quality Management System)certified factories manufacturing world-class products;
4. Products meet international standards and through professional testing and certification authority (SGS, IEC612215, IEC61730, CE, TUV).

Recommended Applications:
1. On-grid utility systems;
2. On-grid commercial systems;
3. Off-grid ground mounted systems;
4. Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photovoltaic power plants and other fields.

Quality assurance testing:
1. Thermal cycling test
2. Thermal shock test
3. Thermal/Freezing and high humidity cycling test
4. Electrical isolation test
5. Hail impact test
6. Mechanical, wind and twist loading test
7. Salt mist test
8. Light and water-exposure test
9. Moist carbon dioxide/ sulphur dioxide.
Item No. Specification Specification Parameters
FC-MA4000-A
Photovoltaic off grid system
(Max Output power 4000W)                                                                                               Applications :
Air-conditioning,TV, Refrigerator,Washing machine,Computers, Printers
,Fans, Water pump,Electric
cooker,Electric motor, Induction
cooker,Lighting, etc.
Solar Panel Polycrystalline 1800W/72V (8 year quality warranty)
Solar Battery Sealed Lead-acid 960AH/12V (2 year quality warranty)
Solar Control System Solar Controller 40A/48V
Inverter AC4000W/DC48V
LCD Parameters ACV,DCV,HZ,KW,etc
Control Box Iron painting
Output Voltage Selectable  AC110V/220V/230V/240V
Frequency selectable 50HZ/60HZ
Accessories Installation Operating Instructions
Solar panels dedicated plug
Working temperature Solar panels -40ºC~80ºC
Control system  -10ºC~50ºC
Wooden product  Solar Panel(L.W.H):2100x1100x560mm 1pcs
Control system(L.W.H):580*360*560mm 1pcs
Battery Box(L.W.H):870*750*650mm 1pcs
Gross Weight 570kg
Quality Certification Products through the European CE, TUV quality testing and certification
Optional Configuration Dual power automatic switching function(0.4S only), external battery charging apparatus
Any customizing request, such as sample, your own brand name, logo and package can be made here.
Prod Model: FC-MA4000-A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Solar Panels Size(L*W*H): 2100*1100*560mm
Control Box Size(L*W*H): 580*360*560mm
Battery Box Size(L*W*H): 870*750*650mm
Gross Weight: 570kg
System: Off-Grid system
FuzhouChongKang Electromechanical

Company Profiles:
FuzhouChongKang Electromechanical Co., Ltd. is located in the two rivers surround the PuShang Industrial Zone, Fuzhou, Fujian, since its inception in 2007 dedicated to solar photovoltaic systems and Cummins diesel genset, design, manufacture and sales.
Solar Power System:
Through years of careful research, design and production set for home, office, large-scale photovoltaic power plants in different segments of the solar power generation system, We all use a selection of high-energy ions crystalline silicon solar panels, The most advanced segregate synchronous boost system, In the home and office, the supply of lighting, television, fan, air conditioners, refrigerators, washing machines, water pumps, computers, printers and other different electrical, widely applicable, according to the user's actual electricity demand for scientific data configuration, Scientific production, eliminate waste, to achieve flexible and rational allocation purposes, User local conditions allow, can and commercial power grid connected operation, generating sales, Our high-efficiency solar power systems, stability, security, dominate in the same industry, Have undervoltage, overload, short circuit, overcharge, over discharge, wrong polarity connections etc, Intelligent Protection System, Use of solar energy prospects are vast, inexhaustible, easy maintenance, no noise, no pollution, can guarantee 24-hour day and night electricity, clean environment.
Mature technology, scientific construction, numerous cooperation installation experience is professional and efficient guarantee; Design and installation of all kinds of customers, excellent and stable solar street lights and solar power systems, Long-term for residents in remote areas, mining, communication base stations supply solar street lights and solar power system installation work, products are mainly sold in Europe, America, Southeast Asia, Africa, etc.; Advanced technology and quality in terms of reliability has been unanimously praised by users!

Cummins Genset:
Since its inception the company has been committed to Cummins generator set design, production and sales, strong technology and resource advantages of product quality and market guaranteed. Chongqing Cummins Engine is a Sino-US joint venture, low fuel consumption, low emission, reliable performance, durability won wide acclaim at home and abroad. Our Cummins genset power range 28KW-1343KW, Common type, silent type, mobile trailer type, according to the user 's environment for a reasonable scientific configuration, With overload, short circuit, high temperature, low oil pressure, low speed, speeding, low voltage, high voltage intelligent protection function, safe and reliable, Have remote monitoring, commercial power and generator dual power automatic switching function, if the customer needs. Professional noise reduction of generator room design, installation and after-sales technical teams, product sales to the highways, mines, factories, hotels, communication base stations, ships etc industry, has always been to maintain good relations.

Purpose and Target:
FuzhouCongKang company since its inception, always adhere to market-oriented, quality as the life of enterprise, credit for the company's fundamental, high quality service for eternal pursuit of the company.
