Micro Turbine Generator Unit / Water Turbine / Hydro Turbine
| Price: |
US $ 455-9600/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |

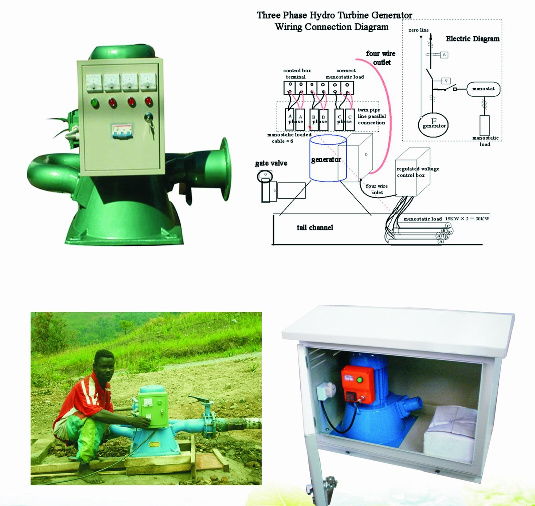

Micro turbine generator unit
The capacity ranges from 300W to 30KW

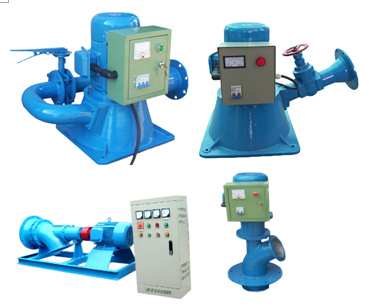

We have single nozzle turgo,Double nozzle turgo ,Horizontal tubular Vertical tubular
Single-Phase, Three-Phase
On-grid type / Off-grid type etc
|
No. |
Generator Model |
Fall |
Flow |
Permanent magnet alternator |
Speed |
Pipe diameter of assembly |
G.W |
Packing size |
Remarks |
|
(m) |
m 3 /s |
(W) |
(r/min) |
(mm) |
(kg) |
(cm) |
|
1 |
XJ14-0.3DCT4-Z |
12-14 |
0.003-0.005 |
300 |
1500 |
50 |
25 |
35×30×37 |
Angular Impulse single phase single-nozzle set |
|
2 |
XJ18-0.5DCT4-Z |
12-18 |
0.005-0.007 |
500 |
1500 |
50-75 |
27 |
38×34×40 |
Angular Impulse single phase single-nozzle set |
|
3 |
XJ18-0.75DCT4-Z |
14-18 |
0.005-0.008 |
750 |
1500 |
75 |
34 |
38×34×42 |
Angular Impulse single phase single-nozzle set |
|
4 |
XJ25-1.5DCT4-Z |
18-25 |
0.008-0.011 |
1500 |
1500 |
125 |
70 |
75×44×52 |
Angular Impulse single phase single-nozzle set |
|
5 |
XJ25-1.5DCTF4-Z |
15 |
0.012-0.018 |
1500 |
1500 |
125-150 |
108 |
88×60×55 |
Angular Impulse single phase twin-nozzles set |
|
6 |
XJ25-3.0DCT4-Z |
25-35 |
0.015-0.019 |
3000 |
1500 |
125-150 |
90 |
79×47×60 |
Angular Impulse single phase single-jet set |
|
7 |
XJ25-3.0DCTF4-Z |
18-20 |
0.018-0.030 |
3000 |
1500 |
150 |
122 |
88×57×60 |
Angular Impulse single phase twin-nozzles twin-valves set |
|
8 |
XJ28-6.0DCT4/6-Z |
28-35 |
0.030-0.038 |
6000 |
1500 |
150-200 |
196 |
88×57×8275 |
Angular Impulse single phase single-nozzle set |
|
9 |
XJ28-6.0DCTF4/6-Z |
18-20 |
0.038-0.050 |
6000 |
1000 |
200 |
255 |
105×75×77 |
Angular Impulse single phase twin-jet twin-valve set |
|
10 |
XJ30-10DCT4-Z |
30-38 |
0.040-0.050 |
10000 |
1500 |
200-250 |
269 |
85×65×85 |
Angular Impulse single phase single-nozzle set |
|
11 |
XJ30-10DCTF4/6-Z |
25-30 |
0.050-0.060 |
10000 |
1000 |
200-250 |
318 |
105×82×82 |
Angular Impulse single phase twin-jet twin-valve set |
|
12 |
XJ30-12SCTF4-Z |
28-35 |
0.050-0.060 |
12000 |
1500 |
200-250 |
325 |
110×85×100 |
Angular Impulse three phase twin-nozzles twin-valves set |
|
13 |
XJ30-15SCTF4/6-Z |
30-40 |
0.060-0.070 |
15000 |
1500/1000 |
200 |
395 |
126×93×98 |
Angular Impulse three phase twin-nozzles twin-valves set |
|
14 |
XJ30-20SCTF4/6-Z |
30-45 |
0.060-0.100 |
20000 |
1500/1000 |
250-300 |
380 |
120×90×115 |
Angular Impulse three phase twin-nozzles twin-valves set |
|
15 |
XJ38-30SCTF4/6-Z |
38-45 |
0.090-0.120 |
30000 |
1500/1000 |
250-300 |
530 |
120×90×115 |
Angular Impulse three phase twin-jet twin-valve set |
|
85 |
62×46×127 |
|
23 |
GD-LZ-12-3.0KW |
11 |
0.045 |
3000 |
1500 |
150 |
140 |
142×65×60 |
vertical shaft extension tubular turbine |
|
16 |
GD-WZ-20-3KW |
4 |
0.136 |
3000 |
1000 |
250 |
330 |
130×65×88 |

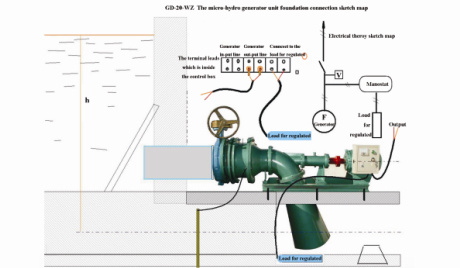

horizontal shaft extension tubular turbine |
|
100 |
60×45×38 |
|
18 |
GD-WZ-20-6KW |
7 |
0.156 |
6000 |
1500 |
300 |
|
|
horizontal shaft extension tubular turbine |
|
20 |
GD-WZ-20-10KW |
11 |
0.165 |
10000 |
1500 |
300 |
|
|
horizontal shaft extension tubular turbine |
|
Notes:XJ-Angular Impulse,QS-xial flow submersible type ,DG-vertical axial flow,GD-horizontal shaft extension tubular,D-single phase,S-three phase, |
|
C-Permanent magnet,T-synchro,W-horizontal,L-verticle,F-twin-jet twin-valve,4-4-stage motor, 6-6-stage motor,Z-balance stabilized voltage. |
|
All the stes are with automatic stabilized voltage device/Delivery time: smaller than 5Kw 1.5months after down payment, others about 2months. According to each order. |
|
Delivery time: smaller than 5Kw 1.5months after down payment, others about 2months. According to each order. |
|
FOB price for each order should add USD100 .00 as China Port ( Shenzhen) charges. |
|
Sample price should be 100% of this quotation list. Payment term: T/T |
