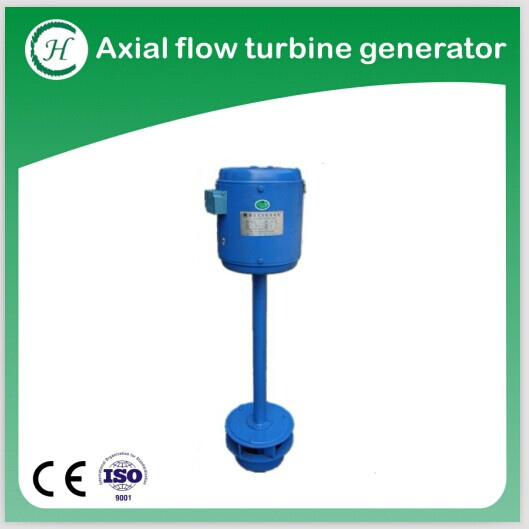

Micro hydro turbine generator:
Features:
1)Rust-Proofing and corrosion resistant with aluminum alloy shell material and copper wire stator coil
2)Long service life
3)Two kinds of the Axial flow water turbine generator:
Fixed blade propeller turbine and Kaplan turbine
Application:
1) Home appliances such as fan, light bulb, TV, electric stove, etc.
2) Powering High-power appliances such as computer, fridge, washing machine, etc when the generator working with an automatic voltage controller. Automatic voltage controller.
|
Picture |
Items |
Parameters |
|
HC-S04 |
Water turbine |
|
Power Output (w) |
300 |
500 |
600 |
1000 |
1500 |
2000 |
3000 |
5000 |
|
Rated Head (m) |
1-2 |
1-2 |
1.2-2.5 |
1.5-3 |
1.5-3 |
2-4 |
2-4 |
2.5-5.5 |
|
Rated Flow(cbm/s) |
0.021-0.030 |
0.023-0.035 |
0.025-0.038 |
0.03- 0.04 |
0.04-0.045 |
0.09- 0.11 |
0.09- 0.14 |
0.116-0.156 |
|
Blade Diameter(cm) |
10 |
10-12 |
13 |
15 |
15 |
18 |
18 |
20 |
|
Generator |
|
Type |
Permanent magnet |
|
Power Output (w) |
300 |
500 |
600 |
1000 |
1500 |
2000 |
3000 |
5000 |
|
Voltage(V) |
220V AC |
220V AC |
220V AC |
220V AC |
220V AC |
220V AC |
220V AC |
220V AC |
|
Current(A) |
1.36 |
2.27 |
2.73 |
4.55 |
6.82 |
9.09 |
13.64 |
22.73 |
|
Frequency(HZ) |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
Rotary Speed(RPM) |
500-1500 |
500-1500 |
500-1500 |
500-1500 |
500-1500 |
500-1500 |
500-1500 |
500-1500 |
|
Phase |
single |
single |
single |
single |
single |
single |
single |
single |
|
Weight(kgs) (without packing) |
12 |
13 |
26 |
29 |
32 |
42 |
52 |
120 |
|
Packing |
Length(cm) |
23 |
23 |
24.5 |
28 |
28 |
33 |
33 |
34 |
|
Width(cm) |
23 |
23 |
24.5 |
28 |
28 |
33 |
33 |
34 |
|
Height(cm) |
78 |
78 |
79 |
82 |
85 |
98 |
118 |
145 |
Located in Nanning Guangxi, Hecong is specialized in exporting water turbine generator to worldwide.
Our company has many years experience on agricultural machinery,as a professional supplier of agricultural machinery, we can supply rice mill and grinder machine, oil press machine,water turbine generator,mini harvester, package machines, gasoline & diesel generator,water pump,mini cultivator, and so on.
