Micro Hydro Turbina / Micro Water Turbine / Small Hydro Turbine
Price: |
US $ 280-9600/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
T/T |

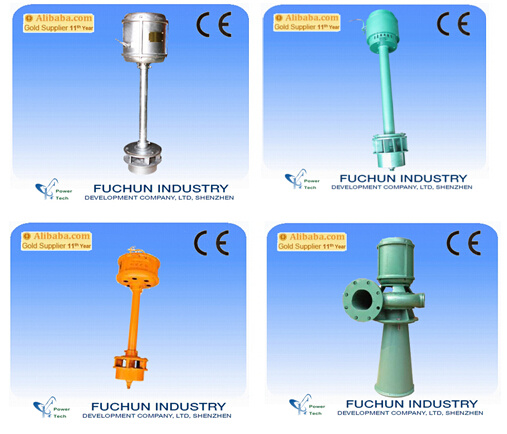

Micro turbine generator unit
The capacity ranges from 300W to 50KW
We have single nozzle turgo,Double nozzle turgo ,Horizontal tubular Vertical tubular
Single-Phase, Three-Phase
On-grid type / Off-grid type etc
Data, price and packing size of Micro-hydro turbine(50Hz)range |
Pleas noted:
The advantage of the following type: wide range of application / Low price |
No. |
Generator Model |
Fall |
Flow |
Permanent magnet alternator |
Speed |
Pipe diameter of assembly |
Remarks |
(m) |
m 3 /s |
(KW) |
(r/min) |
(mm) |
1 |
XJ2-1-0.6 |
9-18 |
0.0079-0.012 |
0.6 |
500-1500 |
80 |
Angular Impulse single phase single-nozzle set
permanent magnet |
2 |
XJ2-1-1.0 |
10-25 |
0.009-0.015 |
1 |
500-1500 |
90 |
Angular Impulse single phase single-nozzle set
permanent magnet |
3 |
XJ2-1-1.5 |
12-28 |
0.01-0.018 |
1.5 |
500-1500 |
90 |
Angular Impulse single phase single-nozzle set
permanent magnet
permanent magnet |
4 |
XJ2-1-2 |
15-30 |
0.0114-0.023 |
2 |
500-1500 |
100 |
Angular Impulse single phase single-nozzle set
permanent magnet |
5 |
XJ2-1-3 |
18-40 |
0.0124-0.0135 |
3 |
500-1500 |
100 |
Angular Impulse single phase single-nozzle set
permanent magnet |
6 |
XJ2-1-5-01 |
20-40 |
0.012-0.0156 |
5 |
500-1500 |
150 |
Angular Impulse single phase single-nozzle set
permanent magnet |
7 |
XJ2-1-5-02 |
30-35 |
0.012-0.0156 |
5 |
1500 |
150 |
Angular Impulse single phase single-nozzle set
excitation type |
8 |
XJ2-1-5-03 |
20-25 |
0.012-0.0156 |
5 |
1000 |
150 |
Angular Impulse single phase single-nozzle set
excitation type |
|
9 |
ZD-1-0.6 |
1.2-2.5 |
0.025-0.038 |
0.6 |
500-1500 |
|
Kapalan turbine
Concerte case
permanent magnet |
10 |
ZD-1-1 |
1.5-3 |
0.03-0.04 |
1 |
500-1500 |
|
Kapalan turbine
Concerte case
permanent magnet |
11 |
ZD-1-1.5 |
1.5-3 |
0.04-0.045 |
1.5 |
500-1500 |
|
Kapalan turbine
Concerte case
permanent magnet |
12 |
ZD-1-2 |
2-4 |
0.09-0.11 |
2 |
500-1500 |
|
Kapalan turbine
Concerte case
permanent magnet |
13 |
ZD-1-3 |
2-4 |
0.09-0.14 |
3 |
500-1500 |
|
Kapalan turbine
Concerte case
permanent magnet |
14 |
ZD-1-5-01 |
2.5-5.5 |
0.116-0.156 |
5 |
500-1500 |
|
Kapalan turbine
Concerte case
permanent magnet |
|
|
|
|
|
|
|
|
15 |
ZD-2-0.6 |
5-10 |
0.025-0.038 |
.0.6 |
500-1500 |
160 |
Kapalan turbine
metal case
permanent magnet |
16 |
ZD-2-1 |
5-10 |
0.03-0.04 |
1 |
500-1500 |
160 |
Kapalan turbine
metal case
permanent magnet |
17 |
ZD-2-1.5 |
5-10 |
0.04-0.045 |
1.5 |
500-1500 |
160 |
Kapalan turbine
metal case
permanent magnet |
18 |
ZD-2-2 |
5-10 |
0.09-0.11 |
2 |
500-1500 |
160 |
Kapalan turbine
metal case
permanent magnet |
19 |
ZD-2-3 |
5-10 |
0.09-0.014 |
3 |
500-1500 |
160 |
Kapalan turbine
metal case
permanent magnet |
20 |
ZD-2-5-01 |
5-10 |
0.116-0.156 |
5 |
500-1500 |
250 |
Kapalan turbine
metal case
permanent magnet |
21 |
ZD-2-5-02 |
5-10 |
0.116-0.156 |
5 |
1500 |
250 |
Kapalan turbine
metal case
excitation system |
22 |
ZD-2-5-03 |
5-10 |
0.116-0.156 |
5 |
1000 |
250 |
Kapalan turbine
metal case
excitation system |
All the sets are with automatic stabilized voltage device |
Turbine unit of above turbine units are 230V / 380V 50HZ , if voltage and frequncy need to be special made, the unit price need to add 10%. |
|
|
|
|
|
|
|
Delivery time: smaller than 5Kw 1.5months after down payment, others about 2months. According to each order. |
FOB price for each order should add USD100 .00 as China Port ( Shenzhen) charges. |
Sample price should be 100% of this quotation list. Payment term: T/T |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Founded in 1978, Fuchun Industry Development Co., Ltd was moved to Shenzhen in 1998. In 2005, in the process of state-owned enterprise reform, our company has conglomeration and merger with GANZHOU COMPLETE SETS OF POWER GENERATING EQUIPMENTS MANUFACTURE Co., Ltd, dealing with all export projects, especially Complete Sets of Power Generating Equipments including design, manufacture, and installation and operation supervision, training.
Our factory has over 60 years experience in hydro power equipment manufacturing activities. We continue to hold the Fuchun's philosophy-adding product value, keeping good quality and providing good service.
Nowadays the company's business not only engages in manufacturing of small power equipment, but also covers engineering, design, procurement and construction of small and medium size hydro power plants (10kw-50MW) and coal-fired (biomass) power plants (200kw-25MW). We either wholly own or jointly own with other partners to have invested several factories in the power equipment industry, such as Jiangxi Ganzhou etc. We also dealing with small wind power generator and solar power plants, power substations, supply of power related equipment and machines of boiler, fan, pump, environment equipment (smoke flux treatment, water treatment), coal excavation facilities, dust and slag handling equipment, thermal power generation turbines, driving turbines, hydro turbines, wind turbines, generators, transformers, power cables, weight scales, cranes, bull dozers, analysis facilities and so on. Our company is also willing to take the contract of small and medium power generation factory consulting business because we have strong technical force of engineers and technicians.
In 30 years of the company history, we designed and manufactured a large mount of hydro turbine generators, not only for domestic China but also export to more than 30 counties, such as Guatemala, Ecuador, Congo, Pakistan, USA, Canada, Cuba, Germany, Austria, Turkey, North Korea, Viet Nam, Burma, Nepal, Norway, Denmark, Belgium, Uruguay, Russia, Georgia, Bulgaria, Bhutan, France, UK, Italy, etc.
Our company sincerely welcomes all clients, partners, and friends from all over the world to contact us for business co-operation. We believe that our efforts will bring you and us a win-win situation.
