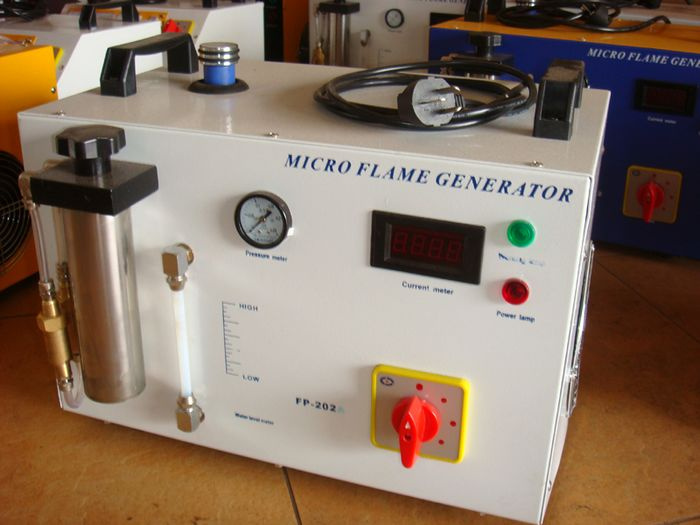

Micro Flame Generator/HHO Gas Generator:
1. Introduces:
It electrolyze water into hydrogen and oxygen, then we can use hydrogen for flame processing.
Flame generator or HHO gas generator is widely used in jewelry industry and resently acrylic ads display. Its micro size flame makes acrylic products polishing possible where difficult holes, corners, edges and areas traditional polishing machines are able to reach. 2800 0C high temperature micro flame rapidly makes acrylic products edges crystal clear and silky smooth. It is an ideal polishing machine and hence the term " flame polisher".
Our micro flame generator produces the high temperature micro flame by combustion of hydrogen which is generated by electroly water.
2. Characteristic;
1) "Fuel" is water (distilled) which is easy to obtain and safe.
2) Polished surface is clean without any residue.
3) Objects do not get over heated due to its micro size flame.
4) Use of high quality parts for reliability and durability.
5) Special low vlotage and automatic cut-off for safety and energy saving.
6) Combustion produces only steam(water) make it a real environment friendly machine.
3. Applications
1) Polish uneven and hard-to-reach area of acrylic products.
2) LED dies welding.
3) Computer wires trimming
4) Metal welding (Gold, silver, copper...etc. )
5) Metal parts partial heat treatment.
6) Micro parts cutting & welding
7) Repair of sand holes of gears
8) Enamel wires lead trimming.
|
Model |
Voltage |
Walt |
Water Consume |
Gas produce |
Solvent Consume |
Dimension |
Net Weight |
|
SANHO80 |
220V
50~60HZ |
400W |
25 c. c/hour |
80 Liter/h |
3 c. c/hour |
35*20*28cm |
16 Kg |
|
SANHO100 |
220V
50~60HZ |
500W |
30 c. c/hour |
100 Liter/h |
3.5 c. c/hour |
35*20*28cm |
18 Kg |
|
SANHO200 |
220V
50~60HZ |
800W |
40 c. c/hour |
200 Liter/h |
6 c. c/hour |
44*23*28cm |
29 Kg |
|
SANHO250 |
220V
50~60HZ |
1000W |
50 c. c/hour |
250 Liter/h |
7 c. c/hour |
44*23*28cm |
33 Kg |
|
SANHO350 |
220V
50~60HZ |
1300W |
60 c. c/hour |
350 Liter/h |
8 c. c/hour |
48*28*33cm |
35 Kg |
Guangzhou Santi Electro-mechanical Equipment Co., Ltd, as one of the main suppliers of inverter welding and cutting machines in China, We are specializing in Inverter Welding & Plasma Cutting Machines for 10 years. With high technology & development capacity, our product range covers inverter MMA, TIG, MIG/MAG, PULSE TIG, AC/DC TIG, PLASMA CUTTING digital controlled flames series. Quality is reliable and price is reasonable.
Our new machine Hydrogen Oxygen Generator consumes water and electricity and electrolyze water into H2 and O2 as the fuel. This kind of product not only save energy but also protect environment. It can be used for welding, cutting, glass processing and jewelry processing.
Generally speaking, Guangzhou Santi Electro-mechanical Equipment Co., Ltd has been endeavoring to make perfect products for customers. Welcome to cooperate with Santi.
