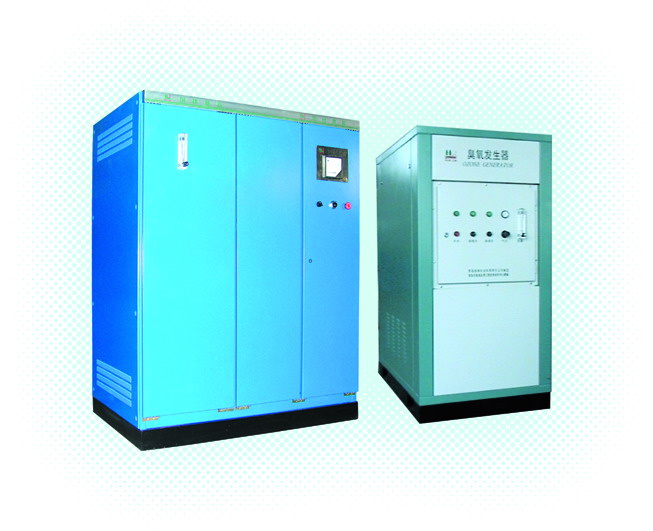

The device base on vitreous enamel or not glass discharge medium, which can created high concentration of ozone gas.
Technical parameter:
ozone output: from 100g/hr to 2000 g/hr
The input voltage: 380V/3ph/50Hz or 220V/50Hz
ozone concentration : 80 mg/L~100 mg/L
Available Voltage: 4.5kv
Available frequency: 800Hz
Power consumption: 8-10kW/kgO3
gas inlet flow: 10-13m3/hkgO3
feed gas dew point: -45 centigrade
gas inlet temperature: 20 centigrade
Cooling water inlet flow: 1.7-2T/hkgO3
Cooling water temerature: below 30 centigrade
Available working pressure: 0.05-0.15MPa
Kolen Technologies is a pioneer in the field of high-technologies and consumer electronics etc since 1980.
Since now, we grow up to a company group. The business expand to Industrial use for water and air, TV, Mobile phone, notebook computer etc.
Our products are fully inspected and CSA, UL, or ETL approved for your safety. Our factories are inspected (surprise inspections! ) by the authorities 4 times per year to ensure that our Quality Controls remain in place.
We will insisted it's road and provide quality product and satisfy service better and better.
