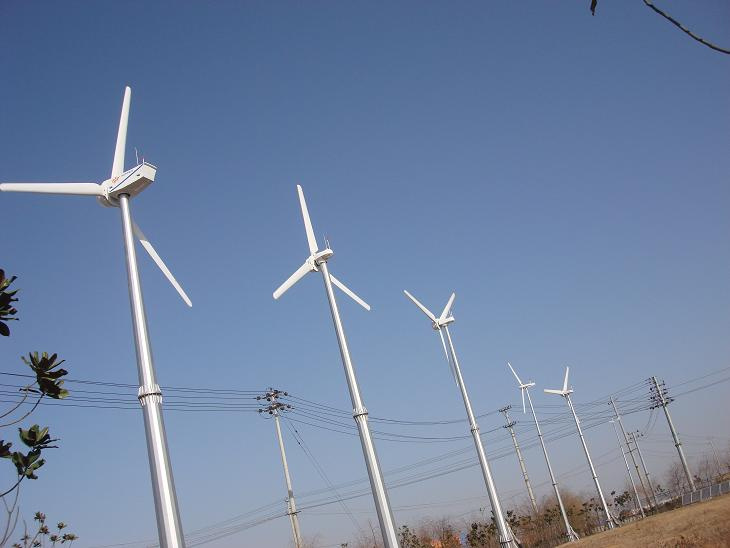

Medium and small scaled wind generators Hummer 400W to 100KW wind generator
400W/600W wind-solar hybrid street light sytem
500W-100kw off grid wind generator system
1kw-100kw on grid wind genreator system/grid tied wind generator system
Wind-solar hybrid generating system
Wind-diesel hybrid generating system
Wind-diesel-solar hbyrid generating system
Hummer advtanges:
I. Professional supplier
Anhui Hummer Dynamo Co., Ltd., has been the leading manufacturer and supplier of the medium and small sized wind turbines in China for over a decade, which provides a complete product selection from 400W to 100kW and has its own professional R&D team. The factory and the marketing center together cover the complete industrial chain from manufacturing, to supplying and after-sale service of Hummer wind turbines.
II. Patented technologies
Hummer adopts the SCF generator technology which won a golden award in the 37th Salon Eureka in Brussels thanks to its 7 core patented technologies. Hummer wind turbine is lighter and smaller. It swifts up faster and is more efficient comparing to the traditional ones.
III. R&D team
Hummer's R&D team is composed of experts supported by special government allowances. They have made remarkable progresses in the domains such as the application of the amorphous soft magnetic material and the permanent magnetic material in wind turbines. Their researches in the generator's magnetic circuit and structures have been granted with several patents.
IV. Worldwide application
Hummer's products have been exported worldwide during the past six years, and have been installed in 91 countries and areas. They are mainly applied in all sorts of off-grid wind power systems such as the wind-solar hybrid streetlight system, the domestic wind power system, the highway monitoring system, the weather monitoring sites, the radio and transmission base stations, etc., and as well as the grid-tied system too.
V. Responsible warranty
Hummer provides its customers with the responsible warranty service to its wind turbines.
| Model | H1.25-400W | H1.25-600W | H2.7-500W | H3.1-1KW | H3.8-2KW | H4.6-3KW | H6.4-5KW | H8.0-10KW | H9.0-20KW | H10.0-30KW | H12.0-50KW | H20.8-100KW |
| Rated power(W) | 400 | 600 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 | 20000 | 30000 | 50000 | 100000 |
| Maximum output power (W) | 600 | 800 | 1000 | 2000 | 3200 | 4500 | 7500 | 15000 | 30000 | 45000 | 75000 | 120000 |
| Battery bank voltage (Vdc) | 12 | 24 | 24V | 60V | 120V | 180V | 240V | 240V | 240V | 360V | 400V | 400 |
| System output voltage(Vac) | DC12V | DC24V | Single phase AC 110V-240V | Single phase AC110V-240V Three phase AC380V-420V | Three Phase AC380V to 420V |
| Start-up wind speed (m/s) | 2.5 | 2.5 | 3 | 3 | 3 | 2.5 | 2.5 | 3 | 3 | 2.5 | 3.0 | 3.0 |
| Rated wind speed (m/s) | 11 | 11 | 7 | 9 | 9 | 10 | 10 | 10 | 11.5 | 11 | 11.5 | 11.5 |
| Working wind speed (m/s) | 3-25 | 3-25 | 3-25 | 3-25 | 3-25 | 3-25 | 3-25 | 3-25 | 3-25 | 3-25 | 2.5-25 | 2.5-25 |
| Survival wind speed (m/s) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Rated rotating rate (r/min) | 800 | 800 | 600 | 500 | 450 | 265 | 240 | 200 | 180 | 160 | 140 | 100 |
| Generator efficiency | >0.80 | >0.80 | >0.78 | >0.8 | >0.8 | >0.8 | >0.8 | >0.85 | >0.85 | >0.92 | >0.9 | >0.93 |
| Wind energy utilizing ratio | 0.4 | 0.4 | 0.48 | 0.45 | 0.45 | 0.4 | 0.4 | 0.4 | 0.4 | 0.42 | 0.42 | 0.42 |
| Generator type | Permanent Magnet Alternator |
|
| Generator weight (kg) | 5.5 | 7 | 6.5 | 15 | 25 | 71.8 | 147 | 287 | 496 | 800 | 1200 | 2400 |
| Blade material/ quantity | Nylon/ 3 | Nylon/ 3 | GRP/ 3 |
| Blade diameter (m) | Ø1.25 | Ø1.25 | Ø2.5 | Ø3.1 | Ø3.8 | Ø4.8 | Ø6.4 | Ø8.0 | Ø9.0 | Ø10.0 | Ø12.0 | Ø20.8 |
| Tower heigh t(m) | / | / | 6/8 | 8 | 10 | 12 | 12 | 12/15 | 16 | 18 | 18 | 24 |
| Speed regulation method | Yawing + Electromagnetism Braking | Yawing + Electromagnestism Braking (Hydraulic Braking is available upon request) | Yawing + Electromagnetism Braking + Hydraulic Braking |
| Shutting down method | Manual Operation + Automatic |
Anhui Hummer Dynamo Co., Ltd. is a professional wind generators manufacturer with high-tech in the field of wind energy.
We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.
There are more than 200 employees in the company including 40 R&D staff. And the factory covers over 30, 000 square meters with the workshop more than 7.5 Acres. There are more than 100 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.
All Hummer small-sized wind generators including wind generator from 400W to 200KW, which have acquired CE certificate. Meanwhile, Hummer' S wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.
Hummer' S wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional' S. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.
Hummer aims to be a worldwide influential enterprise as well as the best domestic manufacturer and service provider.
