Range of capacity: 3 to 200 Nm3/hr; Purity: 90% to 96%; Outlet pressure: 0.2-0.3Mpa(also can be changed by the buyer's demand) Product presentation:

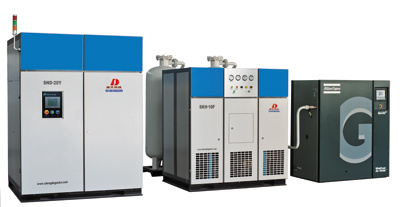

Our company is engaged in the molecular sieve variable Pressure Swing Adsorption technology (Pressure Swing Adsorption, abbreviation PSA) research for nearly 20 years of history, and based on this, my company combining foreign advanced technology idea, with a PSA domestic professional institute for close cooperation, full consideration of our hospital for medical oxygen status and demand, especially developed SND - Y series medical molecular sieve oxygen generator.
System uses the overseas famous brand air compressors, energy-conserving high-efficient, continuously provide the compressed air raw material for oxygen system.
Operating principle
Shengda medical molecular sieve oxygen equipment, it is the application of advanced variable pressure swing adsorption (PSA) technology, the new equipment to make extract oxygen from air. It use air as raw material, with zeolites molecular sieve as adsorbent, in room temperature under low pressure, use of oxygen and nitrogen zeolites selective adsorption, absorption capacity with adsorption pressure increases and with the decrease of the reduced pressure adsorption properties. In pressurized conditions adsorption nitrogen, oxygen enrichment, pressure conditions desorption nitrogen, meanwhile regeneration molecular sieve, circular alternant, thereby separating out oxygen. The specific work process is to compress air and it is cleaned by air dryer and by switching valve into adsorption tower. In adsorption tower, nitrogen gas is adsorbed by molecular sieve, Oxygen in treating the buildup of adsorption by oxygen tanks entered, then after divide peculiar smell, dusting and aseptic filtration, namely be qualified medical oxygen. The whole process of oxygen for physical adsorption process, no chemical reaction, free from pollution to the environment
The oxygen generation equipment in strict accordance with the YY/T0298-1998
design and manufacturing, through the devices to produce oxygen fully comply with USA USP - 23 edition oxygen standards.
Product main technical indices
Oxygen flow: 3 to 60 Nm³ /h
Oxygen concentration: 93± 3 %
Oxygen pressure: 0.3 to 1.0 MPa( adjustable)
Dew point: ≤ - 48 ° C (ordinary pressure)
Product selection table
Modal and size
Oxygen output
Installed power
Applicable beds
SND- 3Y
3
5
≈ 100
SND- 5Y
5
7
≈ 150
SND- 8Y
8
11
≈ 250
SND-10Y
10
15
≈ 300
SND-15Y
15
22
≈ 500
SND-20Y
20
30
≈ 600
SND-25Y
25
30
≈ 750
SND-30Y
30
37
≈ 1000
SND-38Y
38
45
≈ 1250
SND-45Y
45
55
≈ 1500
SND-60Y
60
75
≈ 2000
Remarks:
In this table listed data to 0.6 MPa pressure of compressed air, elevation raw 0 meters and relative humidity 80% for design benchmarks.
System installation spot for indoor none explosion-proof area, working environment temperature 3-45, well ventilated.
Power system is 220V / 380V, 50Hz
System operation noises are in 68dB bleow
Applicable beds, offer reference only. All data if there is a change, press later to provide the data shall prevail
With medical oxygen system, can single unit configuration, also can dual unit configuration
We will according to the hospital on the daily or months with oxygen to recommend the following solutions.
Hangzhou Shengda High-Tech Mechanical & Electrical Co., Ltd. is a national key high-tech enterprise, located beside the beautiful Fuchun River, with pleasant weather, picturesque surrounding and convenient transportation. We have a total area of more than 80 acres, with more than 20, 000 square meters of manufacturing and assembly workshops, advanced production, processing and testing equipment and large-scale gas testing kits.
Over the past 20 years, our company has been dedicated to the technology research, design and production of medical gas, industrial gas and other gas separation purification equipment.
Our company has a good reputation in the industry. "Shengda" is a famous trademark in Zhejiang.
As a provincial high-tech enterprise, our company has been rated as "AAA Grade Credit Enterprise" and "Honoring Contract Enterprise" for eight years. Our company is the member unit of China Industrial Gas Association. Our products have passed ISO9001 & YYT0287 management system certifications. Our company has built a provincial level "PSA Gas Technology Research Center", greatly enhancing technological innovation capability. Our company has 83 independent intellectual property rights, 3 national invention patents, 2 National Torch Program Products and 4 provincial-level high-tech products.
Our main products are medical PSA oxygen generators, plasma air purification and disinfection machines, medical compressed air purification systems, nitrogen, PSA nitrogen and oxygen purifiers, air purification dryers, refrigeration dryers, no heat regeneration dryers, micro-heat regeneration dryers, filters, industrial valves and so on. Our products are widely used in health care, food, pharmaceuticals, bio-environmental protection, petroleum chemical, machinery and electronics, metallurgy, smelting, coal, electric power, military and aerospace fields.
Design and Research Institute works closely with national professionals and universities to develop high-tech products, continuously take technological innovation, and improve product performance and product quality.
We uphold the core concept of "integrity, efficiency, professionalism, innovation" to provide customers with better quality and more reliable and energy-efficient products to create grand first-class brands.
