1. Application ranges

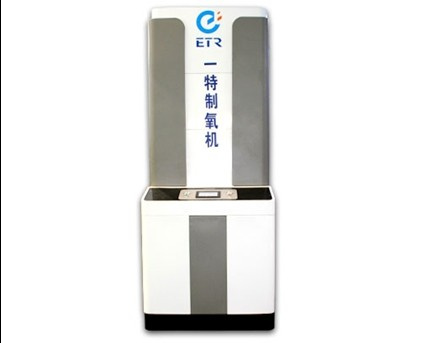

Eter Oxygen Generator is mainly used in medical gas systems, operating rooms, emergency rooms, hyperbaric oxygen chambers, high altitude area, massive oxygen bars, medical places, and other places that need oxygen.
2. Working Principle
Eter Oxygen Generator gains the high concentration of standard medical oxygen by the method of PSA ( Pressure Swing Adsorption ), by which the oxygen and the nitrogen are separated from the air, meantime, the harm materials are filtered.
3. Main Technical Parameters
Type: ETO- A30
O2 Output: 30m³ /h by single machine set (Meet common O2 demand)
Total Power: 64KW (Power supply has some more allowance in design to assure enough oxygen supply. )
Work Voltage: AC 380V / 220V
O2 Purity: 93± 3%(V/V)
Output Pressure: 0.35-0.55MPa (Adjustable, it can be met without force pump and back surge tank. )
Physiochemical index: Conform to YY/T0298-1998 standard.
Noise: Conform to YY/T0298-1998 standard.
Alarm Sound Intensity: Conform to YY/T0298-1998 standard.
Equipment Weight: Around 4.6 Ton
Equipment Height: 4000mm
Equipment Room Area: Around 50m2 (Make equipment layouts according to the site situation of the hospital equipment room. )
Designed life span: More than 100 thousand hours.
4. Advantages and Features
4.1 The molecular sieve, core element, is imported with original package from USA.
4.2 With fully automatic control by Japanese Mitsubishi PLC.
4.3 Using precise magnetic valve that imported from Japanese SMC.
4.4 With automatic pressure controller, the machine can automatically adjust on start up and shut down. The oxygen can be directly supplied to common ward area without pressurizing due high output pressure.
4.5 With pressure indicators for intake air, circulation, oxygen output.
4.6 With remote computer control system.
5. Services
5.1 Offer installation service, can send engineers and work team to worksite.
5.2 Offer after sale service, including equipment debugging and adjustment, instructions on malfunctions, maintenance.
5.3 Offer further services on engineering of hospital gas system, we can design and construct the hospital oxygen and suction system, etc.
5.4 All important spare parts are available at least in 5 years.
Hunan Eter Electronic Medical Project Tock Co., Ltd. is a high-tech enterprise located in Torch Town in High-tech Development District, Changsha. It was founded in July 2003 with registered capital of one million. Now, its registered capital has increased to 12.06 million. The company specializes in development, production and sales of hospital nursing products.
