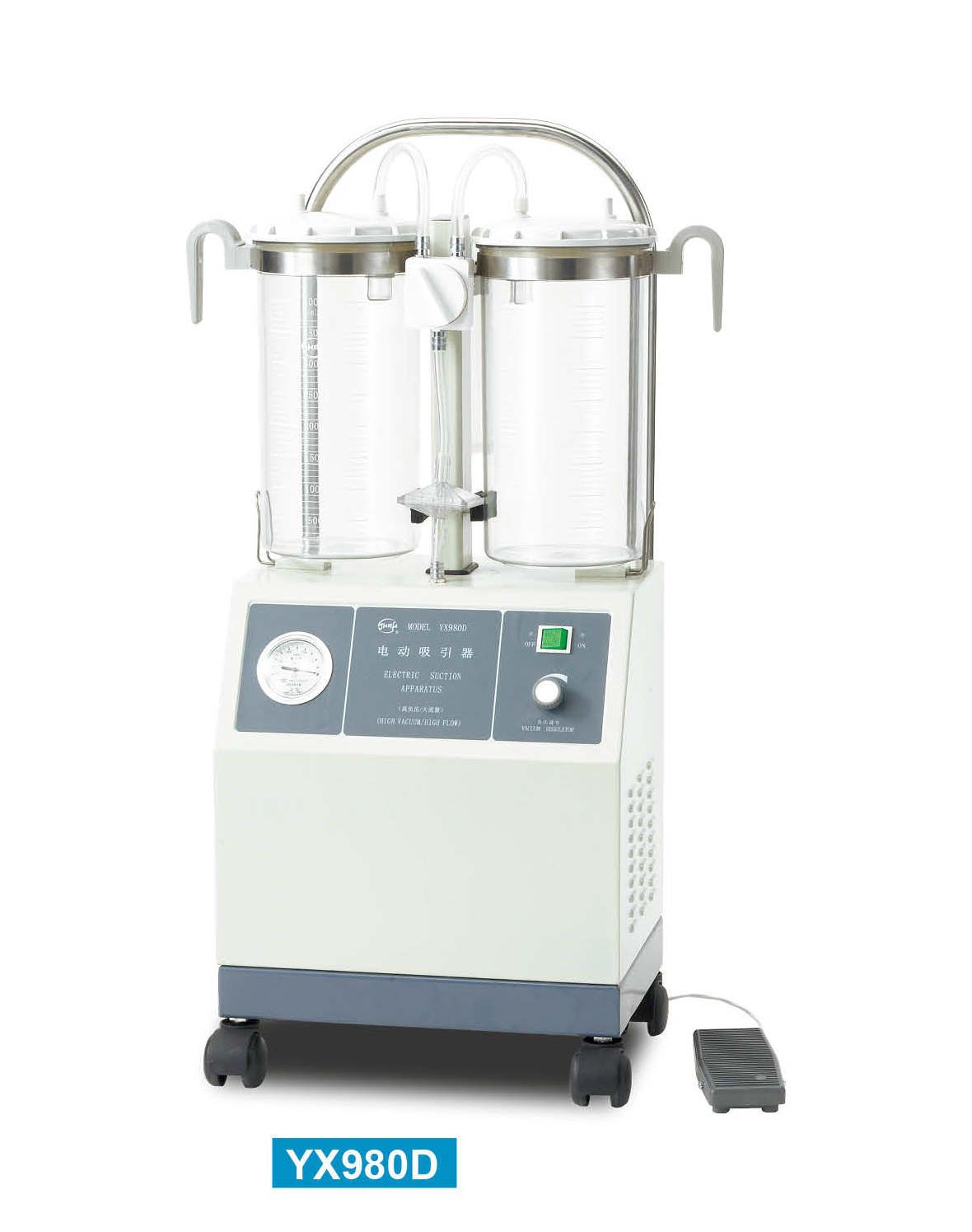

Medical Equipment Electric Suction Apparatus ModelYX980D
Electric Suction Apparatus ModelYX980D
Medical Equipment Model YX980D Electric Suction Apparatus offers high vacuum and high flow with double piston cylinders. It rapidly builds up a powerful vacuum, and is especially used for surgical operations where large quantities of fluid must be suctioned out quickly. Advanced design idea as well as a perfect configuration performs satisfactory functions.
Medical Equipment Model YX980D Electric Suction Apparatus FEATURES
1. Providing extremely high flow and efficient vacuum generation - the required vacuum is available within seconds; Oil-less vacuum source and maintenance -free.
2. The level of vacuum required is controlled by the vacuum regulator and showed on the vacuum meter.
3. The overflow protection device prevents liquid or solid particles from entering the intermediate tubing and pump; The bacterial filter for single use can eliminate airborne contamination.
4. Two transparent unbreakable jars graduated 4000 ml made of polycarbonate (PC) can be autoclavable.
5. Change-over valve offers for manual selecting collection jar rapidly; The rinsing-cup is used for placing catheter before or after operation.
6. The comfortable handle made of stainless make it easy to move about; The accessory-box back of the case is ready for laying foot-switch and power cord during movement or storage.
Model? YX980D? Electric Suction Apparatus SPECIFICATIONS
1Max vacuum: ≥ 0.09MPa (680mmHg)
2 Adjustable vacuum range: 0.02MPa~0.09MPa
3 Flow rate: ≥ 80L/min
4 Noise: ≤ 60dB(A)
5 Jar: 4000mL× 2
6 Power supply: AC220/50Hz
7Input power: 280VA
8Dim: 49cm × 39cm× 94cm
9G. W. /N. W.: 27/24kg
