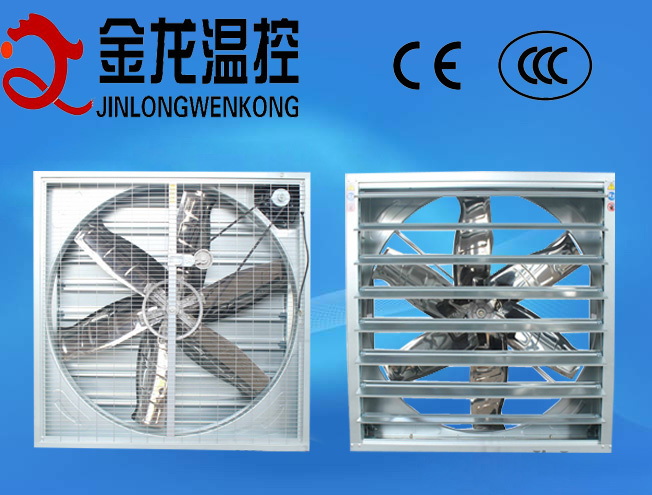

Mechanical Ventilation Cooling System for Poultry Farm
| Price: |
US $ 136/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Pig farming heavy hammer exhaust fan cooling equipment for sale low price
| Model | Diameter
blades(mm) | Blades
rotational
speed
(rpm) | Motor
rotational
speed(rpm) | Air flow
(m3/h) | Total
pressure(Pa) | Noise
| Import
power(W) | Rated
voltage(V) | High
(mm) | Width
(mm) | Thick
(mm) |
| JLF(c)-620 | 500 | 1400 | 1400 | 5700 | 55 | ≤70 | 250 | 380 | 620 | 620 | 400 |
| JLF(c)-780 | 710 | 960 | 1400 | 18000 | 75 | ≤70 | 370 | 380 | 780 | 780 | 400 |
| JLF(c)-800 | 720 | 660 | 1400 | 20000 | 60 | ≤60 | 550 | 380 | 800 | 800 | 400 |
| JLF(c)-900 | 750 | 630 | 1400 | 22000 | 65 | ≤65 | 370 | 380 | 900 | 900 | 400 |
| JLF(c)-1000 | 900 | 610 | 1400 | 30000 | 70 | ≤70 | 750 | 380 | 1000 | 1000 | 400 |
| JLF(c)-1100 | 1000 | 600 | 1400 | 32500 | 70 | ≤70 | 750 | 380 | 1100 | 1100 | 400 |
| JLF(c)-1220 | 1100 | 460 | 1400 | 38000 | 73 | ≤70 | 750 | 380 | 1220 | 1220 | 400 |
| JLF(c)-1380 | 1250 | 439 | 1400 | 40000 | 56 | ≤70 | 1100 | 380 | 1380 | 1380 | 400 |
| JLF(c)-1530 | 1400 | 325 | 1400 | 55800 | 60 | ≤70 | 1500 | 380 | 1530 | 1530 | 400 |
1. Frame: Galvanized steel sheet, anti-corrosive and durable. Thickness: 1.0mm for the top and 0.8 for the other sides
2. Blade: 6 pieces of mirror finished stainless steel blades, attractive and durable with big air volume, passing the homeostasis test to ensure the air volume keeping the same as the very beginning during the operational life span, low noise, no distortion, no broken, Thickness: 1.2mm.
3. Motor: Siemens motor or Chinese motor, high efficient and energy-saving with CCC certificate. Protection class: IP55, Insulation class: F. The voltage, power, Hz and phase can be customized.
4. Shutter: Made of high strength hot-galvanized steel sheet, dust-proof and waterproof.
Thickness: 0.45mm

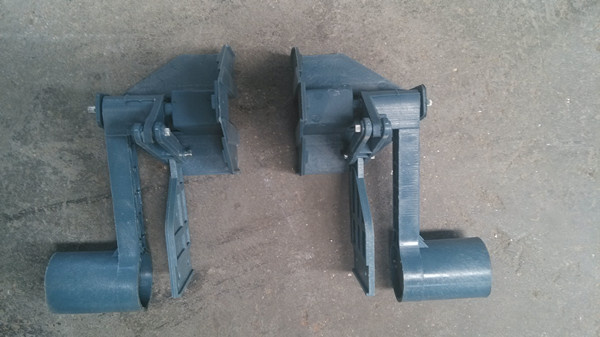

5. Swung drop hammer: Made of high quality nylon, stable performance, guaranteeing the shutters open and close flexibly.
6. Protective net: Made of hard-drawn wire, designed as door-type, which is convenient for maintaining.
7. Belt impeller: Made of aluminum magnesium alloy by injection moulded, adopting more stiffening rib, processed by sandblasting, eliminating the internal stress, high intensity, low noise, long service life.
8. Belt Pulley: Made of aluminum-magnesium alloy by injection moulded, reducing the weight of blade and impeller, high corrosion resistance. Blast-sanding treatment for attractive appearance, eliminating internal stress to improve its own rigidity and stability, high strength.
9. Belt tensioner: Made of high quality nylon or aluminum-magnesium alloy, avoiding belt loosening or dropping off, extending service life and avoiding distortion, waterproof
10. Belt: China famous brand belt, Mistubishi belt
| Prod Model: |
50'' |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Brand: |
Laoyite/Siemens/Wenbao |
| Belt Brand: |
Sanlex&Mitsubishi |
| Size: |
20"/28"/29"/30"/36"/40"/44"/50"/56" |
| Air Flow: |
20000-55800m3/H |
Qingzhou JINLONG Temperature-controlled Equipment Co., Ltd is a professional livestock machinery manufacturer in Shandong province, China, which is a high technology enterprise composed with design, production, sale and after-sales service.
Our company has advanced machining equipment and strong technical force. We introduced advanced quality control equipment, static and dynamic balancing machine and hydraulic repressive machinery. The main products include ventilation fans, air circulation fan, roof fans, wall fans, cooling system, evaporative cooling pad, air cooler, automatic feeding and drinking system, automatic oil-burning and coal-burning hot blast stove, totally more than 30 kinds, which have absorbed the quintessences of similar products home and abroad, made of high quality materials by advanced technology.
The products are all energy saving, smooth operation, low noise, stable performance, solid and durable with elegant appearance, and widely used in the fields of agriculture, flowers and plants, livestock, textile, mining, chemical, pharmaceutical and timber. Our company always insists on the tenet of "survive with quality, develop with credibility". We provide first-rate products and service for customers with the enterprise spirit as "keep faithfulness, and race to the top ". Our products have been exported to Southeast Asia, Middle East, West Europe, Canada and Australia and get favorable comments.
