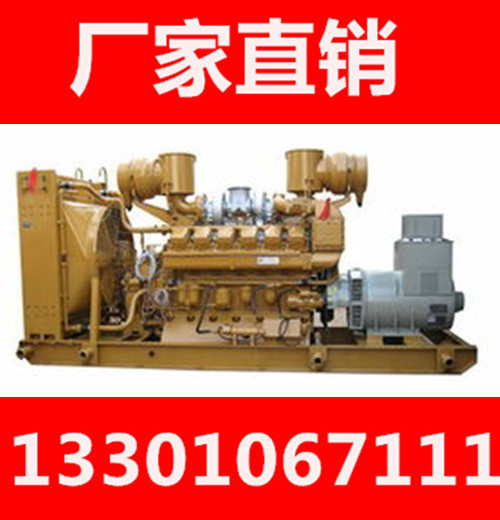

Domestic Marine 800KW diesel generator set
The basic configuration and technical parameters
First, the domestic diesel generator set technical parameters
1, Rated Power: 800KW
2, rated speed: 1500r / min
3, the full load fuel consumption: 200g / kw ? h
Second, the diesel models: Z12V190BCI
1. Power: 882KW / 12h
2. Rated speed: 1500r / min
3. Rated current: 1440A
4. 5. Lubrication: Pressure and splash lubrication
6. Start: gas motor electric motor
7. The cylinder diameter: 190mm
8. piston stroke: 215mm
9. Piston displacement: 73.15 (97.53) L
10. Steering: Counterclockwise
Third, the generator (Wuxi Siemens / Stanford) Model: 1FC2 563-4
1. Power: 1570KW / 1962KW
2. Voltage: 230V / 400V
3. Current: 2880A
4. Frequency: 50HZ
5. Dimensions: 5960 * 2000 * 2820
6. Total weight: 18000Kg
Accessories:
1. Diesel random parts of a box (including special tools and some wearing parts)
2. 200AH storage battery 2, cylinders 2.
3. The muffler 2
4. Battery cable 1 set
5. Diesel Manual 1
6. generators Manual 1
7. Generator Manual 1
8. "Three Guarantees" service data 1 set ("Three Guarantees" service cards, technical service cards, resume)
The company is mainly engaged in Cummins, Volvo, Yuchai, the wood and Weichai series silent diesel generator sets and mobile power station, the main specifications are 30KW-1200KW. Mute trailer unit and low noise units is our strength. Welcome to negotiate!
