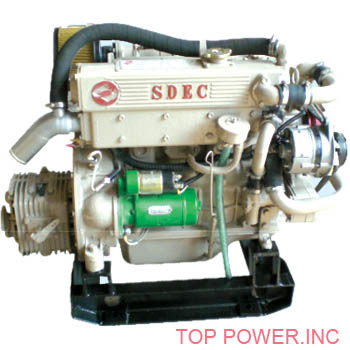

N485caba marine propulsion unit
30kw/1595r/min
N485caba marine propulsion unit is a newly developed product of Shanghai diesel engine Co., Ltd(sdec). The product is adopted direct combustion chamber; Coolant cooled exhaust manifold; Raw water pump with self priming capacity, long distance electro monitoring device, and possess excellent service economy and dynamic performance. It is an ideal power unit for small boats used in inland rivers and coastal region such as work boats, pleasure araft, fishing boats, transport boats, etc.
Feature:
High rallability
High riability
High safety
Excellent economy
Low noise
Low emission
Basic parameter:
Rated power/speed: 27.4 kw/1548r/min
Weight: 250kg
Overall dimensions: 974× 516× 695
Max. Torque: 103.3n. M/1170r/min
Max. Power/speed: 30kw/1595r/min
Outline and mounting drawing:
Basic configuration
Available options
Diesel engine
Coolant-cooled exhaust manifold;
Elastic supports;
Heatexchanger;
Sump drain pump;
Expansiontank;
Front pulley
Raw water pump electro monitoring device;
Marine classification society approval
Long distance electro monitoring device;
Marine air cleaner;
Raw water filter;
Coolant-cooled exhaust elbow
Marine reversing gearbox
Multiple-dise servo-automatic clutch
Clamp coupling joint
