Marine Industrial Small Single Cylinder Water Cooled Diesel Engine (JC170A)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T |
4.5HP Industrial Small Single Cylinder Water Cooled Diesel Engine (JC170A)
We are professional manufacture of diesel engine(2-35HP), diesel generator(3-5KW), diesel water pump(2-4INCH) and so on.
Just send us your inquiry with what u need, we will highly appreciate it!
| Model | JC170A |
| Type | Single-cylinder, four-stroke |
| Bore*stroke(mm) | 70*70 |
| Combustion systerm | swirl combustion chamber |
| Compression ratio | 22±1 |
| 1-hour rated output(KW/R/MIN) | 3.64/3000 |
| 12-hour rated output(KW/R/MIN) | 3.31/3000 |
| Specfic fuel consumption(g/kw.h) | ≤294.2 |
| Specfic lube oil consumption(g/kw.h) | ≤4.76 |
| lubrication system | Splashing |
| Starting method | Hand crank |
| Net Weight(kg) | 50 |
| Method of power output | Output of flywheel end |
| Overal dimensions(mm) | 570*354*416 |
| Prod Model: |
JC170A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Single-Cylinder Four-Stroke |
| Combustion System: |
Swirlcombustion Chamber |
| Borexstroke(Mm): |
70×70 |
| 1-Hour Rated Output(Kw/R/Min): |
3.64/2600 |
| 12-Hour Rated Output(Kw/R/Min): |
3.31/2600 |
| Cooling System: |
Hopper Water-Cooled |
| Starting Method: |
Hand Crank |
| Net Weight(Kg): |
50 |
| Overall Dimensions(Mm): |
570×354×416 |
| Fuel: |
Diesel Engine |
| Speed: |
2600rpm |
Jintan Diesel Engine Co., Ltd. Was founded in 1952, is one of designated and backbone enterprises which is specialized in the production of single cylinder diesel engine. The main products are 2~32 horsepower single cylinder wind and water-cooled diesel engine what brand are Swan and Chang jin. It possesses the production capacity of annual 500000 units. The company started developing diesel engine in 1969 than is the first company that export small single cylinder of air-cooled diesel in China. It join to Changchai Co., Ltd. In December 1995, then restructuring into private enterprise -Jintan Diesel Engine Co., Ltd in October 2003. The company covers 180000 square meters, and possesses the whole process of the development and production capacity from the design, casting, heat treatment, machining to assembly test on the diesel engine, micro tillage machine, power generation units, water pump unit. It have the strong technical force, advanced process equipment, detection means complete, reliable product quality, and offer prompt and reliable after-sale service.
"Swan" brand is famous trademarks in China, the company won the "jiangsu province contracts and keep promise enterprise", "high-tech enterprise of jiangsu province", " advanced unit in jiangsu province management according to law" and "national farm machinery circulation outstanding contribution unit". It leaded through the ISO9001 and TS16949 international quality system certification in 1996. It has exported and imported more than 18 year since we get import and export enterprise qualification in 1995.

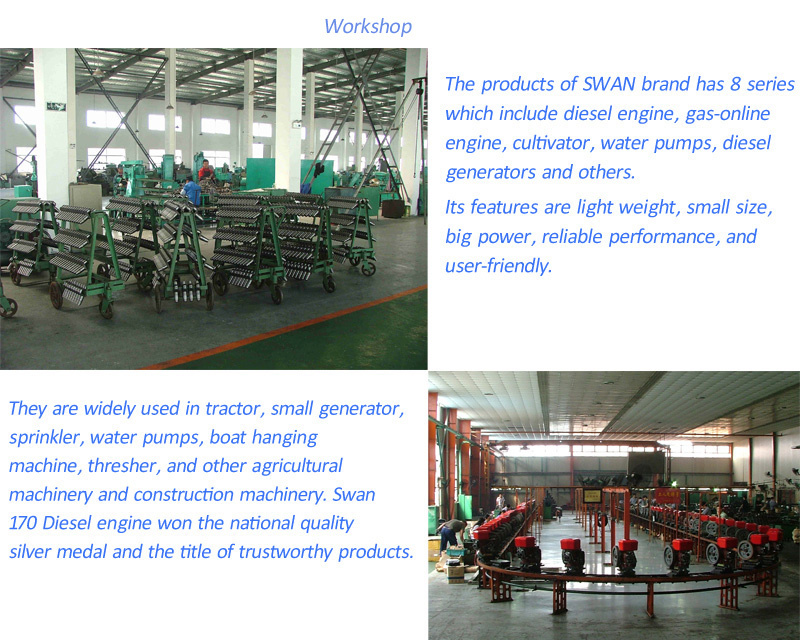

The products of Swan brand has 8 series which include diesel engine, gasoline engine, cultivator, water pumps, Diesel generators and others. Its features are light weight, small size, big power, reliable performance, and user-friendly. They are widely used in tractor, small generator, sprinkler, water pumps, boat hanging machine, thresher, and other agricultural machinery and construction machinery. Swan 170 Diesel engine won the national quality silver medal and the title of trustworthy products. Swan brand 160F, 165FA, JC170, JC175, JC75N, JC80N and other products are the first domestic developed, filling the domestic blank.
Swan brand products enjoy a high reputation at home and abroad markets. They were sold well in China, Southeast Asia, South America, and so on, more than 50 countries and regions. Its sales is always in the lead position in the domestic similar enterprises. Company uphold the "unity, serious" management philosophy, with "quality first, customer first" business purpose, and is willing to cooperate sincerely with domestic and foreign customers, to create a better future.
