Marine genset

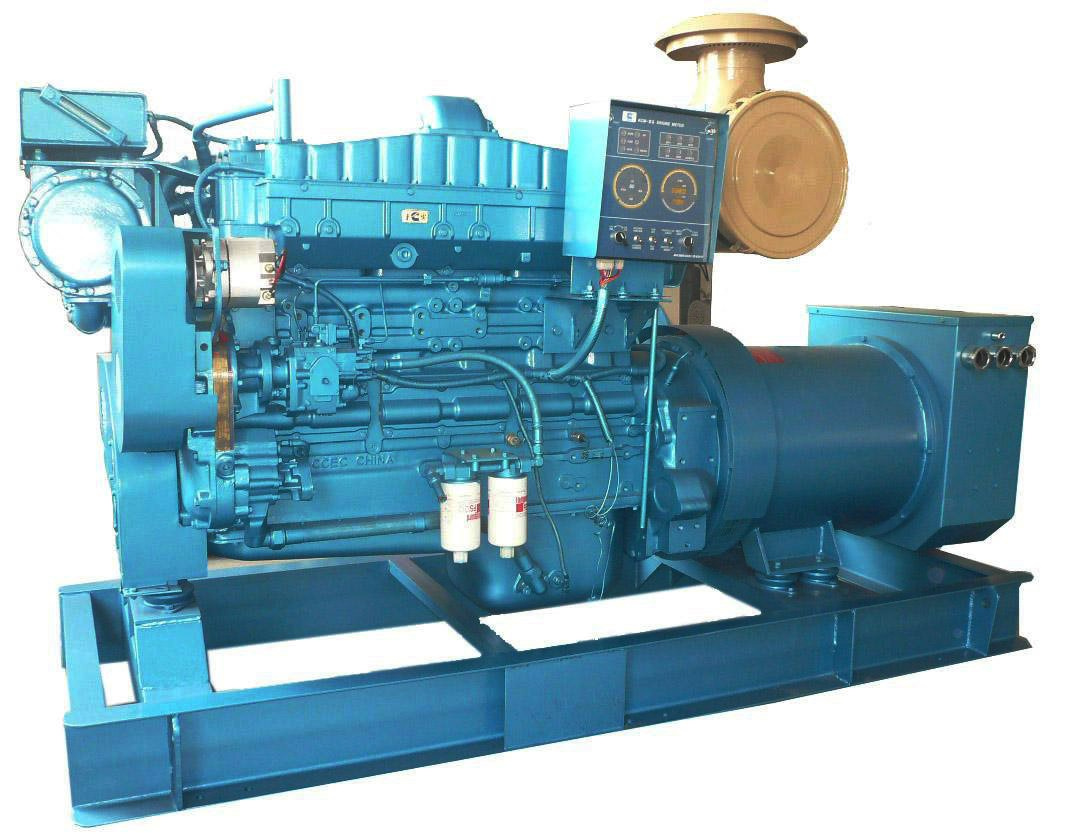

200KW/250KVA Cummins marine generator set
Engine: NTA855-DM
Alternator: Marathon/Stamford.
1)Powered by cummins engine
2)CCS/BV/ABS Certificate
3)CE Certificate
4)ISO9001: 2008
5)Coupled with Cummins diesel engine and Marathon Alternator
6)24V DC start motor
7)Brushless, Self-excited, IP23, insulation class H alternator
Generator Model |
CCFJ200-J |
Prime Power |
200KW/250KVA |
Standby Power |
220KW/275KVA |
Voltage |
400/230V |
Frequency |
50HZ/1500 rpm |
Power factor |
0.8 |
Overall Dimension |
2700 × 1000 × 1850mm |
Weight |
3100kg |
Relative Humidity |
60% |
Overload |
10% MAX. |
Governor type |
Electronic |
Engine |
Standby rating |
Prime rating |
Manufacturer |
Cummins |
Model |
NTA855-DM |
Configuration |
4 cycle, 6 cylinder in Line |
Aspiration |
Turbocharged / AftercooleD |
Output |
264KW/330KVA |
240KW/300KVA |
Bore and Stroke |
140× 152mm |
Rated Speed, rpm |
1500 |
Displacement |
14L |
Compression ratio |
14.5: 1 |
Starting method |
24 Voltage DC, electric |
Rotation |
Counterclockwise facing flywheel |
Alternator |
Standby rating |
Prime rating |
Manufacturer |
Marathon |
Model |
MP-H-200-4 |
Capacity |
220KW/275KVA |
200KW/250KVA |
Voltage |
400/230V |
Frequency & speed |
50HZ / 1500rpm |
Power factor |
0.8 |
Design |
Brushless, self-exciting |
Ambient temp. |
-15 ° C -55 ° C |
Phase and wire |
3 phase and 4 wires |
Excited type |
Self Excited |
Isolation level |
H/H |
Auto voltage regulators(AVR) |
An Electronic AVR with 3 phase, sensing for regulations of 0.5% or better and improved
Performance is need, following control to be included in the AVR.
a)Voltage drop
b)Voltage level
c)Voltage gain
d)Shut down indicators
|
Protection class |
IP23 |
Rotation(seen from flywheel end) |
clockwise |
Taizhou Fengde Mechanical & Electrical Manufacturing Co., Ltd has been established for over 18 years, reformed from a national military industrial enterprise. Fengde owns a experienced and professional staff group, as well as senior engineer, technician and salesman; Now is known as a leading manufacturer in supplying of diesel generator (for both industrial and marine use) and Vessel Switchboard in China.
We have been authorized by CE and the Quality management system of ISO9001: 2008, and have been appointed as a vessel inspection unit by the China Classification Society CCS. Our marine generator and vessel Switchboard can be approved by CCS, ABS, BV, DNV, GL, LR, GL, RS etc. With steady quality, quick and professional service, Fengde gains general recognition from users domestic and abroad.
We are sincerely looking forward to establishing the business relationship with you for our mutual benefit. We are at your service!
