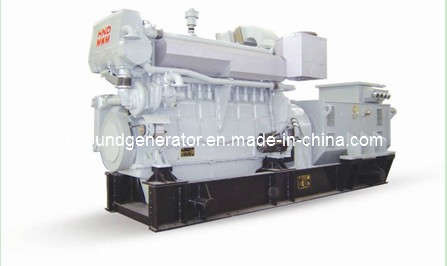

Fengde MWM marine diesel generator set adopt Deutz MWM series engine, a world famous engine with its advanced technology, high reliability and long time service.
Feature:
Economical: MWM series marine diesel gensets is one of the lowest fuel consumption
Gensets in the world.
High reliability and long life for use
Perfect starting ability: Can be start successfully at -10 Celsius degree without any accessories
Perfect low load condition: The air inlet system choose HALLO technical to impores burning performance and reduces fuel consumption.
Convenient maintenance: Simple and reliable structure and L line cylinders provides
Convenient maintenance and inspection.
Meet the needs of IMO for NOx request.
Can provide ABS, BV, DNV classification certificate.
|
Engine Model |
TBD604BL6 |
|
Number of Cylinders |
6 cylinders in line |
|
Cycle |
4 stroke |
|
Aspiration |
Turbocharged and after cooled |
|
Bore× Stroke |
170 x195 mm |
|
Displacement |
26.58 L |
|
Compression ratio |
14: 1 |
|
Prime Power/Speed |
450KW/1500rpm |
|
Speed Governor |
electrical |
|
Cooling System |
By heat exchanger |
|
Fuel Consumption at 100% Load |
197 g/kw. h |
|
Starter Motor |
DC24V, |
|
Voltage |
HZ |
Phase |
P. F
|
Output
(KW) |
|
400/230V |
50 |
3 |
0.8 |
450 |
|
Alternator Model |
MX-H-450-4 |
|
Prime power |
450KW |
|
Frequency/speed |
50HZ/1500rpm |
|
Exciter type |
Brushless, Self-excited |
|
Power factor |
0.8 |
|
Insulation Grade |
H |
|
Protection Grade |
IP23 |
|
Phase / wire |
3 phase 4 wires |
