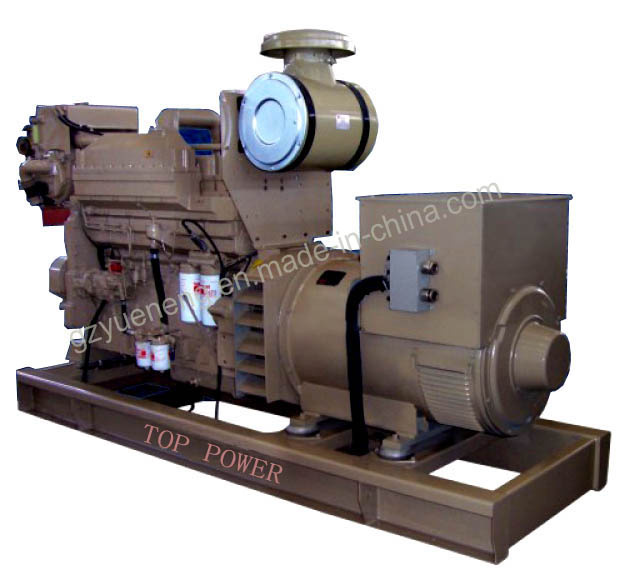

The Marine Generator Sets Powered by Cummins Engine
30-900kW marine generator sets which adopts the American cummins series marine diesel engine(CCS Certificate), equipped with some famous brushless excitation alternators. (Marathon, Stamford, etc. )
The diesel generator set has auto protective device, it can control and protect the water temperature, oil temperature, oil pressure, and the speed.
It has many advantages such as automatic speed regulation, automatic voltage regulation, good dynamic performance, stable fluctuation form of voltage, high efficiency, excellent reliability, long service life, etc.
It can provide other Marine Classification Society Approval if needed.
|
Genset Model |
Engine Model |
Alternator Model |
Power Output |
Cylinders |
Bore x Stroke (mm) |
Fuel Consumption (L/kwh) |
Lubricant Capability (L) |
Dimension (mm) |
Net Weight (kg) |
|
50Hz |
L |
W |
H |
|
kW |
kVA |
|
TMS-75MC |
6BT5.9-GM80 |
MP-H-75-4 |
75 |
94 |
6 |
102X120 |
<18 |
30 |
2200 |
970 |
1580 |
1650 |
|
TMS-120MC |
6CTA8.3-GM155 |
MP-H-120-4 |
120 |
150 |
6 |
114X135 |
<30 |
30 |
2200 |
970 |
1580 |
1750 |
|
TMS-250MC |
NTA855-G2M |
MP-H-250-4 |
250 |
313 |
6 |
140X152 |
<60 |
40 |
3100 |
1000 |
1583 |
3300 |
|
TMS-350MC |
KTA19-G3M |
MX-H-350-4 |
350 |
438 |
6 |
159X159 |
<84 |
50 |
3400 |
1030 |
1913 |
4800 |
|
TMS-400MC |
KTA19-G4M |
MX-H-400-4 |
400 |
500 |
6 |
159X159 |
<96 |
50 |
3400 |
1030 |
1913 |
4900 |
|
TMS-500MC |
KT38-GM |
MX-H-500-4 |
500 |
625 |
12 |
159X159 |
<120 |
55 |
4500 |
1540 |
2164 |
8510 |
|
TMS-600MC |
KTA38-G2M |
MX-H-600-4 |
600 |
750 |
12 |
159X159 |
<145 |
55 |
4500 |
1540 |
2164 |
8620 |
|
TMS-800MC |
KTA38-G5M |
MX-H-800-4 |
800 |
1000 |
12 |
159X159 |
<193 |
55 |
4500 |
1540 |
2164 |
8800 |
Guangzhou Top power equipment Inc. Was established in 2005, with its headquarters in Guangzhou, China, Our factory is located in Panyu industrial Zone, Guangzhou, which was one of the pioneer of generator sets business in China.
At present, we have a modern factory which covers 18, 000 square meters, and can mass produce various generator sets from 15kw to 1500kw, such as soundproof gensets, trailer mounted gensets, vehicle carried gensets, automatic parallel control panel, auto transfer switch panel(ATS), high voltage gensets, marine gensets with Marine Classification Society Approvals.
We have set up a long-term cooperation relationships with several worldwide famous engine and alternator manufacturers since 2005.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon. For more information, please contact us directly.
