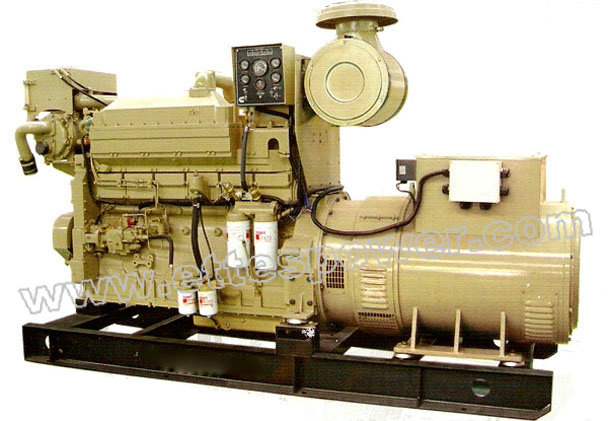

Ettes Power Marine Diesel Genset (ship's auxiliary equipment) can be powered by famous marine diesel engines of Cummins or SDEC 135 Series, power ranging from 20kVA upto 1000kVA. With several years of development and research, we can provide high-quality and pollution-free marine gensets to the clients. We can satisfy the different demands from our clients. Now, the products has been used as the main power or standby power of all kinds of boats, such as, various kinds of large ships, river navigation fishing boat, transport ship, luxurious yachts, and so on.
Ettes Power Marine Gensets passed CCS Certificates, and we also can supply BV, ABS, DNV classification certificates according to your clients' special requirements. They must be shipped together with the above listed certification marks and certifications of proof while leaving the factory. This will provide a reliable guarantee for your ship products, and Ettes power marine generators are one of your best choices in selecting auxiliary equipment for all kinds of ships.
Cummins series marine diesel generating sets are composed of 4BT, 6BT, 6CT, NT, KT marine engines produced by Chinese Cummins joint venture, (D683 series engine is made By Shanghai Diesel Engine Co., Ltd) Company and Stamford or Marathon series brushless 3 phase generators.
The gensets possess closed cooling water system and protection features for high water and oil temperature, low oil temperature and over~speed. The rotor of generator is designed of non~salient pole type and provide damping windings and brushless THYRIPART excitation system.
Engine collection:
Fresh~sea water cooling system; Heat exchange; Fresh, sea water pump; Expansion tank; Water cooled manifold(For D683 engine)
Both engine and alternator are mounted on common steel structural base frame. With isolators installed.
Features of 50Hz/60Hz CUMMINS MARINE GENSETS:
24V DC electric system with battery
Control panel with voltage, ampere, frequency, oil pressure, water temperature, hour meter, emergency stop button
Air cleaner
Captive 4~point mounting system with vibration isolator mounts. Structural steel skid with convenient 4~point lifting arrangement.
Engine protecting system: High speed, High water temperature, Low oil Pressure
|
Cummins Marine Generators (50KVA-1000KVA @50HZ, 1500RPM) |
|
Model |
Prime Power |
Standby Power |
Engine Model |
Alternator |
No. of Cylinders& Type |
Bore×
Stroke (mm) |
Displacement (L) |
Fuel Consumption
(m3/h) |
Overall dimension (L*W*H)(mm) |
Weight (kg) |
|
KW/KVA |
KW/KVA |
Cummins |
Marathon or Equal |
|
ECM-50 |
40/50 |
44/55 |
4BTA3.9-GM47 |
MP Series |
4. in Line |
102/120 |
3.9 |
≤ 210 |
1500× 750× 1320 |
1100 |
|
ECM-63 |
50/63 |
55/69 |
6BT5.9-GM83 |
MP Series |
6. in Line |
102/120 |
5.9 |
≤ 210 |
1850× 820× 1350 |
1200 |
|
ECM-80 |
64/80 |
70/88 |
6BT5.9-GM83 |
MP Series |
6. in Line |
102/120 |
5.9 |
≤ 210 |
1850× 820× 1350 |
1280 |
|
*ECM-88 |
70/88 |
77/96 |
6BT5.9-GM83 |
MP Series |
6. in Line |
102/120 |
5.9 |
≤ 210 |
1850× 820× 1350 |
1280 |
|
ECM-94 |
75/94 |
82/103 |
6BTA5.9-GM100 |
MP Series |
6. in Line |
102/120 |
5.9 |
≤ 210 |
1900× 850× 1400 |
1350 |
|
*ECM-100 |
80/100 |
88/110 |
6BTA5.9-GM100 |
MP Series |
6. in Line |
102/120 |
5.9 |
≤ 210 |
1900× 850× 1400 |
1350 |
|
ECM-113A |
90/113 |
99/124 |
6BTAA5.9-GM115 |
MP Series |
6. in Line |
102/120 |
5.9 |
≤ 210 |
1900× 850× 1400 |
1700 |
|
ECM-113B |
90/113 |
99/124 |
6CT8.3-GM115 |
MP Series |
6. in Line |
114/135 |
8.3 |
≤ 210 |
2100× 900× 1500 |
1900 |
|
*ECM-125A |
100/125 |
110/138 |
6BTAA5.9-GM115 |
MP Series |
6. in Line |
102/120 |
5.9 |
≤ 210 |
1900× 850× 1400 |
1750 |
|
ECM-125B |
100/125 |
110/138 |
6CT8.3-GM115 |
MP Series |
6. in Line |
114/135 |
8.3 |
≤ 210 |
2100× 900× 1500 |
1900 |
|
ECM-150 |
120/150 |
132/165 |
6CTA8.3-GM155 |
MP Series |
6. in Line |
114/135 |
8.3 |
≤ 210 |
2100× 900× 1500 |
1900 |
|
ECM-188A |
150/188 |
165/207 |
6LTAA8.9-GM200 |
MP Series |
6. in Line |
114/135 |
8.9 |
≤ 210 |
2100× 900× 1500 |
2200 |
|
ECM-188B |
150/188 |
165/207 |
NT855-M |
MP Series |
6. in Line |
140/152 |
14 |
≤ 210 |
2860× 1300× 1850 |
2900 |
|
*ECM-225A |
180/225 |
200/250 |
6LTAA8.9-GM |
MP Series |
6. in Line |
114/135 |
8.9 |
≤ 210 |
2200× 900× 1500 |
2200 |
|
*ECM-225B |
180/225 |
200/250 |
NT855-M |
MP Series |
6. in Line |
140/152 |
14 |
≤ 210 |
2860× 1300× 1850 |
2900 |
|
ECM-250 |
200/250 |
220/275 |
NTA855-DM |
MP Series |
6. in Line |
140/152 |
14 |
≤ 210 |
2860× 1300× 1850 |
3100 |
|
ECM-313 |
250/313 |
285/344 |
NTA855-DM |
MP Series |
6. in Line |
140/152 |
14 |
≤ 210 |
2860× 1300× 1850 |
3180 |
|
ECM-350 |
280/350 |
308/385 |
NTA855-DM |
MP Series |
6. in Line |
140/152 |
14 |
≤ 210 |
2860× 1300× 1850 |
3250 |
|
ECM-375 |
300/375 |
330/413 |
KTA19-DM |
MP Series |
6. in Line |
159/159 |
19 |
≤ 210 |
3100× 950× 2080 |
3750 |
|
ECM-438 |
350/438 |
385/481 |
KTA19-DM |
MP Series |
6. in Line |
159/159 |
19 |
≤ 210 |
3150× 1000× 2150 |
3850 |
|
ECM-500 |
400/500 |
440/550 |
KTA19-DM |
MP Series |
6. in Line |
159/159 |
19 |
≤ 210 |
3150× 1000× 2150 |
3950 |
|
ECM-625 |
500/625 |
550/688 |
KT38-DM |
MP Series |
12. Vee |
159/159 |
38 |
≤ 210 |
4100× 1650× 2200 |
6200 |
|
ECM-750 |
600/750 |
660/825 |
KTA38-DM |
MP Series |
12. Vee |
159/159 |
38 |
≤ 210 |
4100× 1650× 2200 |
6300 |
|
ECM-900 |
720/900 |
800/1000 |
KTA38-DM |
MP Series |
12. Vee |
159/159 |
38 |
≤ 210 |
4100× 1650× 2200 |
6300 |
|
ECM-1000 |
800/1000 |
880/1100 |
KTA38-DM |
MP Series |
12. Vee |
159/159 |
38 |
≤ 199 |
4200× 1700× 2350 |
7000 |
|
Kindly Notice: above gensets are with CCS Certificate as standard excluding some models marked with * |
