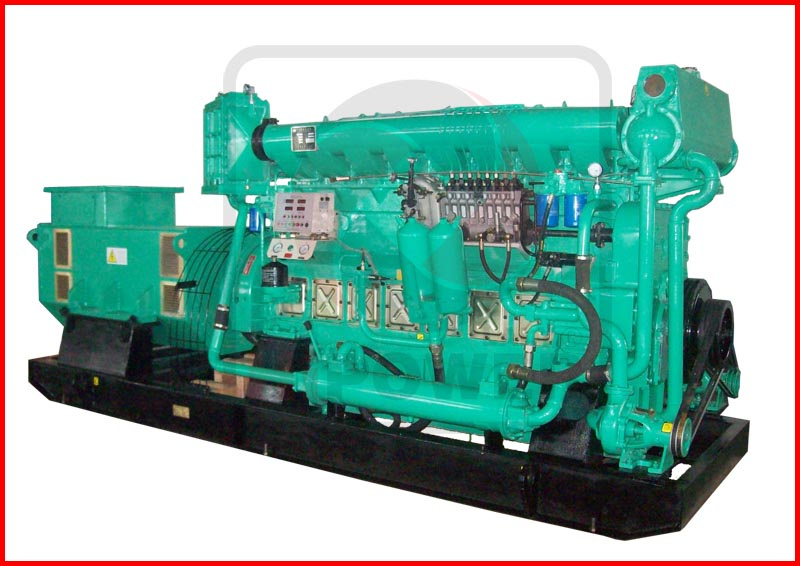

Marine generator specifications:
1) Output range: From 30kW (37.5KVA) up to 800kW (1000KVA)
2) Quality proof: Won Chinese Register of Shipping (CCS), Chinese Fisher Inspection Bureau (ZY) certificates
3) Alternator model: GM / MP
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) Sound-proof canopy is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current output
9) Frequency: <3%
10) Frequency at stable state: <0.5%
11) Frequency deviation at instantaneous state: ≤ +10%
12) Frequency return time: ≤ 3s
13) Voltage deviation at stable state: ≤ ± 1%
14) Voltage deviation at instantaneous state: ≤ +20%
15) Voltage return time: ≤ 4s
16) Voltage modulation: ≤ 0.3%
17) Standard configuration of gensets:
A) Engine: Cummins series produced by joint ventures in China
B) Engine type: Water-cooled, in line four-stoke, Humit cylinder liner, direct injection
C) Alternator: Marathon brushless alternator
18) Control system:
A) Automatic alarm system: The unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
B) Operation display:
I) Unit voltage, tri-phase load current and frequency display
Ii) Water temperature, oil pressure display
Iii) Fuel level, fuel temperature display
Iv) Audible and visual alarm lamps and buzzers
19) Starting system: DC alternator is used to start engine
20) Short circuit protection: MCCB air switch
21) Cooling system: Combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40° C
22) Filter system: Oil, fuel and air filter
23) Accessories: Exhaust elbow, bellow, muffler
24) Supply standard collocation:
A) Diesel engine with all accessories, 3 filters, electric systems
B) Alternator
C) Steel structure
D) Fan and water tank cooling system
E) Flange connector
F) 12 / 24V starting motor and charge engine
G) Air cleaner, fuel cleaner, oil cleaner
H) On-board control panel
I) MCCB air conservation switch
J) 12 / 24V starting accumulator and Battery line
K) Set shock absorber
L) High-efficient silencer
Weifang Laly Generating Equipment Co., Ltd. is located in Weifang of Shandong China that has the praise of "Power City", is national-level key enterprises of new high-tech industry, export export-oriented key enterprises. We engaged in the development and production and management mainly for ship diesel generating set and land diesel generating set and automatic water pump set. Weifang LALY Generating Equipment Co., Ltd. 's generating set and automatic water pump set are from 10KW to 1000KW. We select CUMMINS, RICARDO etc. International or domestic famous diesel engine and Generator, Stamford, marathoon, etc. National best or the joint-venture or importing generator.
With reasonable design, advanced craft, low noise, weak librations, quick startup, and creditable capability, our products can be widely used in such fields as factories, mines, banks, hospitals, ships, posts and telecommunications, oil, high-rise, and field construction etc. Diesel generator for ship won Chinese Register of Shipping (CCS), Chinese Fisher Inspection Bureau (ZY) certificates. Weifang LALY Generating Equipment Co., Ltd. has right of exporting, establish firm cooperation with domestic 28 province, municipality directly under the Central Government, autonomous region, and more than 10 countries in Asia, Africa, America, Europe.
