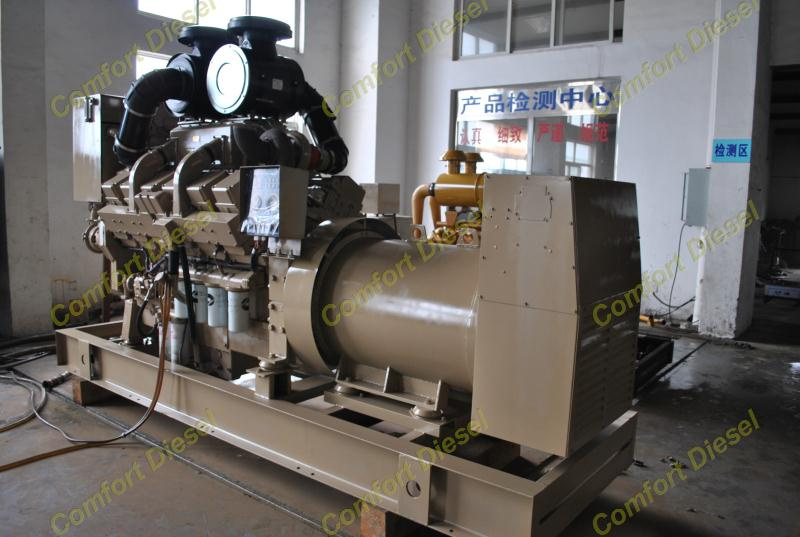

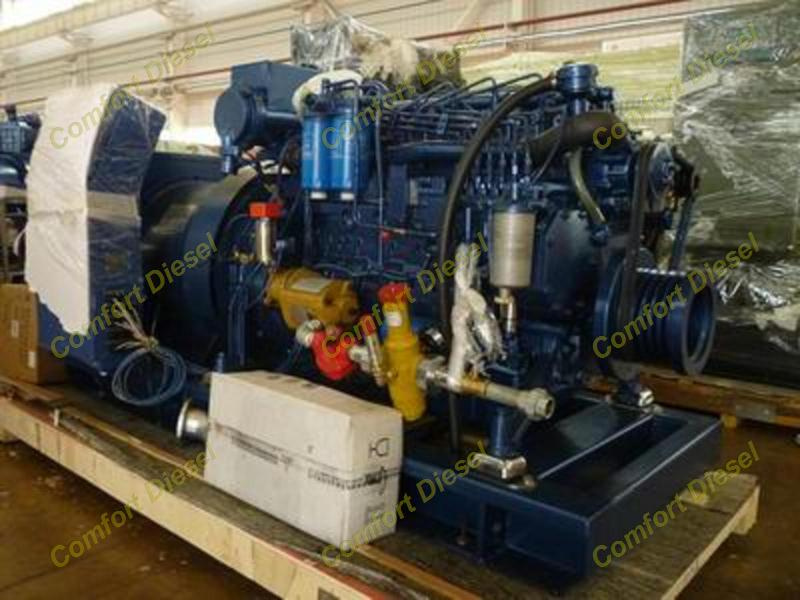

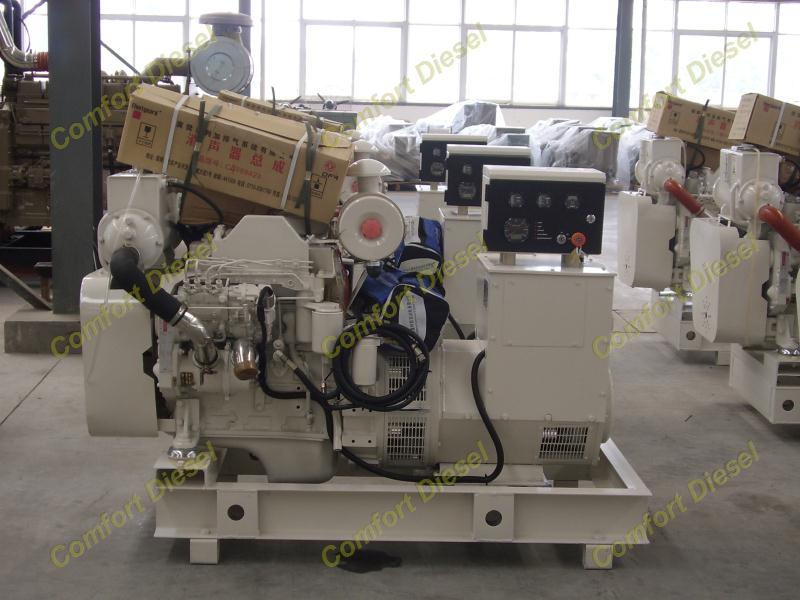

Our marine diesel generator have features of compact structure, large power , low oil consumption , low discharge, low noise, reliable performances, and long services life .Its professional service networks are spread across the country and world , which can provide 24 hours after service and assure the supplying of accessories in time .
Feature:
Gen-set can use for marine diesel generator, Marine emergency gen-set or Harbor gen-set.
We use the marine synchronouse Alternator with the brands of Stamford , Maraphon and Simens marine Alternator etc. Also can be supplied at the request of customers'.
Parallel connection: Two and more normal marine generating sets can transfer loading without stoping , and can realize parallel.
Protection function :Thare are over-limit alarming for speed , oil pressure, cooling water temperature and oil temperature.
Can provide CCS, BV , ABS, DNV classification certificate.
Wide power range for choosing
Model | Rated Power KW | Rated Current A | Frequency/Speed HZ/rpm | Engine Model | Overall Dimension (L×W×H)mm | Weight Kg | CCFJ40J-Y | 40 | 72 | 50/1500 | 4BTA3.9-GM47 | 1500×750×1320 | 1000 | CCFJ50J-Y | 50 | 90 | 50/1500 | 6BT5.9-GM80 | 1850×820×1350 | 1100 | CCFJ64J-Y | 64 | 115.2 | 50/1500 | 6BT5.9-GM80 | 1850×820×1350 | 1200 | CCFJ75J-Y | 75 | 135 | 50/1500 | 6BT5.9-GM80 | 1850×820×1350 | 1250 | CCFJ90J-Y | 90 | 162 | 50/1500 | 6BTA5.9-GM100 | 1900×850×1400 | 1350 | CCFJ100J-Y | 100 | 180 | 50/1500 | 6CT8.3-GM115 | 2100×800×1360 | 1650 | CCFJ120J-Y | 120 | 216 | 50/1500 | 6CTA8.3-GM155 | 2100×800×1360 | 1700 | CCFJ140J-Y | 140 | 252 | 50/1500 | 6CTA8.3-GM155 | 2100×800×1360 | 1750 | CCFJ150J-Y | 150 | 270 | 50/1500 | NT855-GM | 2550×980×2250 | 2900 | CCFJ200J-Y | 200 | 360 | 50/1500 | NTA855-G1M | 2580×980×2290 | 3100 | CCFJ250J-Y | 250 | 450 | 50/1500 | NTA855-G2M | 2620×980×2290 | 3180 | CCFJ280J-Y | 280 | 504 | 50/1500 | NTA855-G4M | 2650×1000×2300 | 3250 | CCFJ300J-Y | 300 | 540 | 50/1500 | KTA19-G2M | 3100×950×2080 | 3750 | CCFJ350J-Y | 350 | 630 | 50/1500 | KTA19-G3M | 3150×1000×2150 | 3850 | CCFJ400J-Y | 400 | 720 | 50/1500 | KTA19-G4M | 3150×1000×2150 | 3950 | CCFJ500J-Y | 500 | 900 | 50/1500 | KT38-GM | 4100×1650×2200 | 6200 | CCFJ600J-Y | 600 | 1080 | 50/1500 | KTA38-G2M | 4100×1650×2200 | 6300 | CCFJ800J-Y | 800 | 1440 | 50/1500 | KTA38-G5M | 4200×1700×2350 | 7000 |
|
|
|
If you have any demand for marine diesel generator set, please feel free to contact us.
