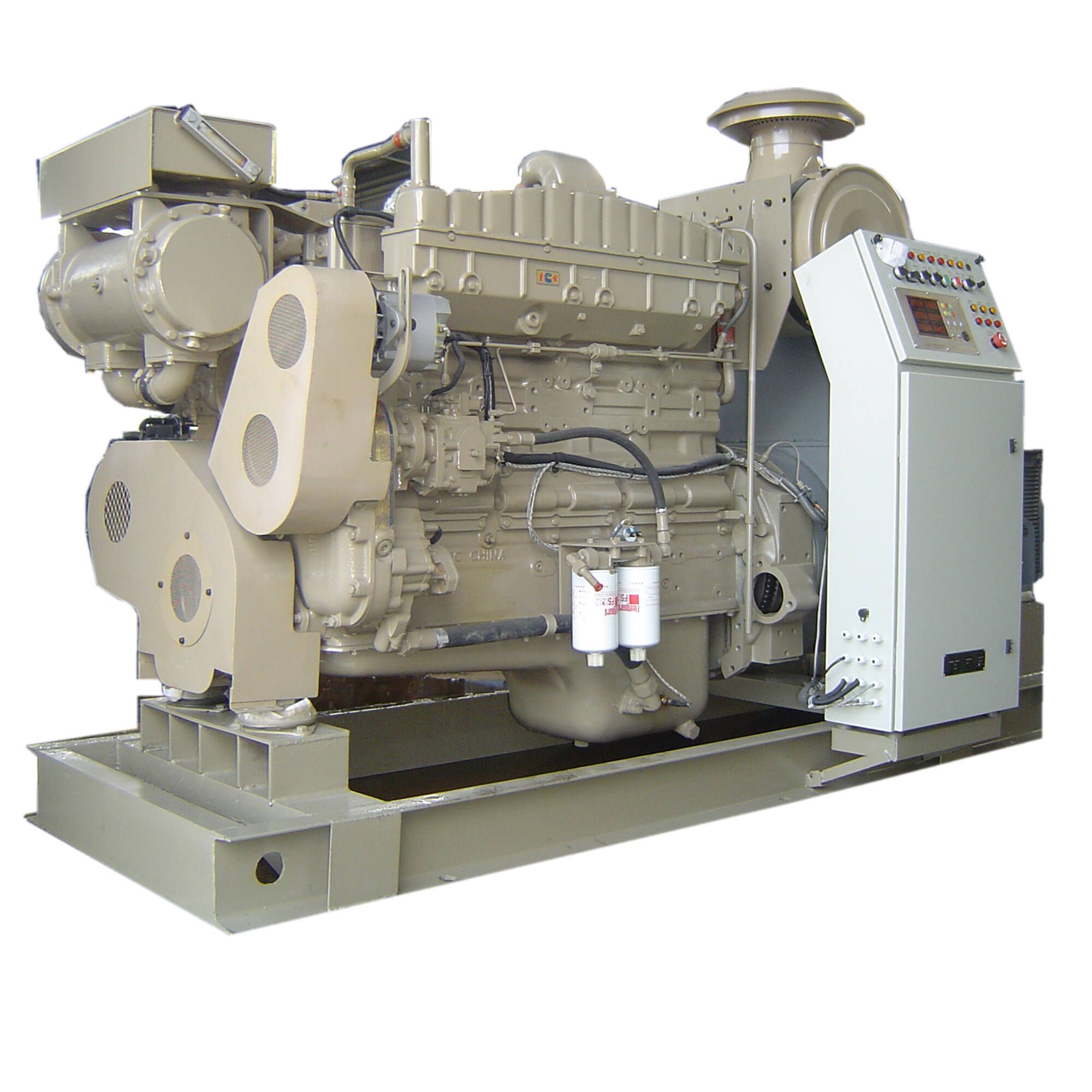

Marine Diesel Generator Set (GFM Series)

Marine Diesel Generator Set (GFM Series)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Contact Supplier
Jiangsu Hengtong Generator Manufacture Co., Ltd.
Showroom Product Company Profile
Alternator Information
Brand: Hengjiu (HJI Series)
Type: Stamford Brushless
Manufacturer: Jiangsu Hengtong Generator Manufacture Co., Ltd.
Output Type: AC Three-Phase
Frequency: 50/60 Hz
Rated Power (kVA): 25-2, 356 kVA
Insulation Class: H
Bearing Number: Single/ Double
Protection Class: 23
Powerful Robust and Universal Brushless Alternator, technology authorized by Shanghai Stamford with 100% Copper Wires and 100% Rated Power Guarantee.

Diesel Engine Information
Optional Marine Diesel Engine: Cummins, Volvo Penta, Deutz, Styer, Daewoo, Chinese Weichai, Shangchai, Wudong, Paou and Jichai.
Output Type: 1500RPM 24V Electrical Start
Rated Power (kVA): 30- 2, 500kVA
Cylinder No.: 4- 16
Bore * Stroke (mm):
Discharge (L):

Generator Set Information
Brand: Hengjiu or OEM
Type: GF20C
Output Type: AC 400V 50Hz Three-Phase Four-Wire
Controller Basic Control System
Normal Power (kVA):
Standby Power (kVA):
Rated Current (A):
Cooling System:
Weight (Kg): 560
Dimension (mm):

Test before shippment
1, Each Generator Set shall be put into commission more than 4 hours totally, tested on idle load, fully load and 10% overload.
2, Noise level shall be tested.
3, All of the meters on the control panel shall be tested.
4, The appearance of the Set and the label, nameplate shall be tested. "
Voltage available: 50Hz: 380-400-415V/ 220-230-240V; 60Hz: 220-380-416-440-480V/ 110-208-220-240V. Any special voltage is also available as cilent's request.

Packing & Warranty
Packing: Wooden, Plywood or Metal Case.
Delivery Time: Less than 25 working days after receiving prepayment.
Warranty: One year or 1, 000 hours from the date of shippment
(15 Months or 1, 200 hours for Alternator Part).
Our warranty standard is higher than most manufacturers for about 25%, because we are confident in our strict test and quality management during each step of manufacture.

Generator Set with Silent Canopy:

The silent generator set produced by Hengtong is scientifically designed, in which such advanced technologies in the field of acoustics and airflow science are adopted, thus casuing its noise reduced to 68-75dB (An average value measured at 7 meters away from the set), It is applicable to the places, where there are high requirments for the noise, such as hospital, residential quarters and office buildings.

Control System:

Basic control system, the basic type control system is provided with a current meter, a volmeter, a frequency meter, an oil pressure guage, a water thermometer and indicator lights on the control cabinet and 4 additional protection fuctions are to be provided as required by customers.

Optional AST & ATS Control System:

AST (Automatic Start Type Control System), Optional Automatic Start Type System is provided with a 101A control module or a DACT704 module with LCD display. When there is an interruption in the commercial power supply (or there is a start signal in other generator sets), this generator set will, subject to time delay acknowledgement (0-30 S adjustable), be automatically started (1-8 times adjustable). In addition, it is provided with a basic protection function and digital or meter indication of voltage, current, frequency and rotation speed parameters.

ATS (Automatic Transfer System), The optional system is provided with a fully automatic transfer switch, a control electric apparatus and an indicator light on the control panel and is coordinated with an automatic type contral cabinet, thus serving the fuction of automatic changeover between the power supplied by the grid and the power generated by the genset.
Parameters of Hengjiu Cumins Diesel Generator Set
Type Parameters of Generator Set
(400V Three-Phase, Four-Wires)		 Parameters of Engine
(24V Electric Start)
Power of Output (KVA) Rated Current
(A)		 Net Weight
(KG)		 Dimensions (MM) Type Power
(KVA)		 Cylinders No. Bore*Stroke
(MM)		 Displacement
(L)		 Fule Consumption
(100% load L/H)
Prime Power Standby Length Width Height
GF20C 25 28 36 560 1, 600 720 1, 300 4B3.9-G1 30 4 102*120 3.9 6.3
GF30C 38 41 54 650 1, 600 720 1, 300 4BT3.9-G1 45 4 102*120 3.9 6.9
GF50C / 63 90 690 1, 750 750 1, 300 4BTA3.9-G2 63 4 102*120 3.9 12.6
GF80C 100 110 144 1, 100 2, 150 850 1, 300 6BT5.9-G1 115 6 102*120 5.1 20.5
GF100C 125 138 180 1, 200 2, 250 820 1, 350 6BTA5.9-G2 138 6 102*120 5.1 24.0
GF120C / 150 216 1, 350 2, 300 850 1, 400 6BTAA5.9-G2 150 6 102*120 5.9 27.4
GF150C 188 206 270 1, 700 2, 400 900 1, 600 6CTA8.3-G2 204 6 114*135 8.3 37.5
GF180C / 225 324 1, 950 2, 500 1, 000 1, 600 6CTAA8.3-G2 229 6 114*135 8.3 40.0
GF200C 250 275 360 2, 100 2, 600 950 1, 650 6LTAA8.9-G2 275 6 114*135 8.9 59.0
GF200Ci 250 275 360 2, 400 2, 800 1, 000 1, 750 NT855-GA 289 6 140*152 14.0 57.0
GF250C 313 344 450 2, 700 3, 100 1, 100 1, 650 NTA855-G1A 326 6 140*152 14.0 67.5
GF250Ci 313 344 450 2, 700 3, 100 1, 100 1, 650 MTAA11-G2 353 6 125*147 10.8 67.5
GF300C / 375 540 2, 900 3, 100 1, 100 1, 850 NTA855-G2A 391 6 140*152 14.0 72.0
GF300C / 375 540 2, 900 3, 100 1, 100 1, 850 NTAA855-G4 396 6 140*152 14.0 76.3
GF360C / 450 648 3, 300 3, 300 1, 160 1, 850 NTAA855-G7A 509 6 140*152 18.9 87.0
GF360Ci / 500 648 4, 100 3, 400 1, 360 2, 000 KTA19-G3 504 6 159*159 18.9 94.0
GF400C 500 550 720 4, 200 3, 400 1, 360 2, 000 KTA19-G4 560 6 159*159 18.9 105.0
GF500C / 625 900 4, 500 3, 600 1, 570 2, 050 KTAA19-G5 694 6 159*159 18.9 113.0
GF500Ci 625 688 900 5, 500 3, 500 1, 500 2, 000 KTAA19-G7 763 6 159*159 18.9 121.0
GF520C 650 713 936 4, 650 3, 750 1, 600 2, 100 QSKTAA19-G5 718 6 159*159 18.9 143.0
GF600C 750 825 1, 080 8, 900 4, 600 1, 900 2, 350 KTA38-G2 830 12 159*159 37.8 153.0
GF700C / 875 1, 260 7, 000 4, 550 2, 060 2, 430 KTA38-G2B 889 12 159*159 37.8 170.0
GF800C / 1, 000 1, 440 7, 150 4, 550 2, 060 2, 430 KTA38-G2A 1, 016 12 159*159 37.8 153.0
GF800Ci 1, 000 1, 100 1, 440 7, 500 4, 800 2, 060 2, 430 KTA38-G5 1, 100 12 159*159 37.8 203.0
GF1000C / 1, 250 1, 800 8, 000 5, 000 2, 200 2, 500 KTA38-G9 1, 361 12 159*159 37.8 221.0
GF1000Ci 1, 250 1, 375 1, 800 10, 000 5, 500 2, 200 2, 500 KTA38-G3 1, 371 16 159*159 50.3 258.0

Parameters of Hengjiu Volvo Penta Diesel Generator Set
Type Parameters of Generator Set
(400V Three-Phase, Four-Wires)		 Parameters of Engine
(24V Electric Start)
Power of output(KW/KVA) Rated Current(A) Weight of set (Kg) Dimensions of set (MM) Type Power (KW) Cylinders No. Bore *stroke (mm) Compression ratio Air discharge(L) Fuel Consumption
(100% load g/kwh)		 Volume of Lub. oil(L) Volume of coolant(L)
Main Standby Length Width Height
GF68V 68/85 75/94 123 1100 2080 720 1450 TD520GE 83 4 108*130 17.5: 1 4.76 215 13 22
GF80V 80/100 88/110 145 1150 2080 750 1450 TAD531GE 98 4 108*130 18.0: 1 4.76 218 13 19.7
GF100V 100/125 110/135 181 1250 2080 750 1450 TAD532GE 125 4 108*130 18.0: 1 4.76 214 13 20.2
GF120V 120/150 132/165 217 1560 2400 870 1450 TAD731GE 148 6 108*130 18.0: 1 7.15 215 20 23.8
GF150V 150/187.5 165/206 270 1600 2550 1050 1500 TAD732GE 179 6 108*130 18.0: 1 7.15 216 34 37.1
GF180V / 180/225 270 1800 2600 1050 1770 TAD733GE 197 6 108*130 18.0: 1 7.15 216 34 37.1
GF200V 200/250 220/275 360 2400 2650 1120 1590 TAD734GE 241 6 108*130 17.0: 1 7.15 204 29 32
GF260V 260/325 280/350 468 2700 3000 1120 1590 TAD941GE 308 6 120*138 17.4: 1 9.36 202 35 41
GF300V 300/375 330/412.5 540 2810 3100 1100 1630 TAD1241GE 354 6 131*150 17.5: 1 12.13 198 35 44
GF360V / 360/450 648 3000 3100 1100 1630 TAD1242GE 387 6 131*150 17.5: 1 12.13 202 35 44
GF360V 360/450 400/500 648 3800 3300 1160 2000 TAD1640GE 431 6 144*165 17.5: 1 16.12 200 48 60
GF400V 400/500 440/550 720 4150 3300 1270 2030 TAD1641GE 473 6 144*165 16.5: 1 16.12 199 48 60
GF450V 450/562.5 800/625 810 3850 3300 1160 2000 TAD1642GE 536 6 144*165 16.5: 1 16.12 201 48 60
GF500V 500/625 550/687.5 900 4050 3400 1400 1950 TAD1643GE 596 6 144*165 16.5: 1 16.12 199 48 128

Parameters of Hengjiu Deutz Diesel Generator Set
Type Parameters of Generator Set
(400V Three-Phase, Four-Wires)		 Parameters of Engine
(24V Electric Start)
Power of output(KW/KVA) Rated Current(A) Weight of set (Kg) Dimensions of set(MM) Type Power(KW) Numbers Bore x stroke (mm) Compression ratio Displacement(L) Fuel Consumption
(100%load g/kwh)
Main Standby Length Width Height
G24 24/30 26/32.5 44 620 1690 600 1450 D226B-3D 33 3 105*120 15.5: 1 3.12 ≤ 208
GF30 30/37.5 33/41.2 54 680 1700 600 1450 TD226B-3D 49.5 3 105*120 15.5: 1 3.12 ≤ 208
GF40 40/50 44/55 72 720 1700 600 1450 TD226B-3D 49.5 3 105*120 15.5: 1 3.12 ≤ 208
GF50 50/62.5 55/68.8 90 750 2200 600 1450 TD226B-4D 66 4 105*120 15.5: 1 4.16 ≤ 208
GF80 80/100 88/110 144 1150 2400 800 1600 TD226B-6D 99 6 105*120 15.5: 1 6.23 ≤ 208
GF100 100/125 110/137.5 180 1500 2460 800 1650 TD226B-6D 132 6 105*120 15.5: 1 6.23 ≤ 208
GF120 120/150 132/165 216 1600 2500 800 1600 TD226B-6D 145 6 105*120 15.5: 1 6.23 ≤ 205
*GF100 100/125 110/137.5 180 2200 2600 970 1400 WD615.61D-15 129 6 126*130 16: 01 9.726 ≤ 205
*GF120 120/150 132/165 216 2300 2650 970 1450 WD615.64D-15 150.7 6 126*130 16: 01 9.726 ≤ 197
*GF150 150/187.5 165/206.3 270 2300 2650 970 1450 WD615.68D-15 187 6 126*130 16: 01 9.726 ≤ 197
*GF200 / 200/250 360 2550 2800 1000 1540 WD615.46D 225 6 126*130 16: 01 9.726 ≤ 197
*GF220 200/275 242/302.5 396 2700 3200 1290 1830 WD618.42 258.5 6 126*130 16: 01 9.726 ≤ 197

Prod Model: GFM Series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jiangsu Hengtong Generator Manufacture Co., Ltd.Is located in Yangzhou city, (3 hours distance by car from Shanghai) which is established in 1986.As a manufacturer, we offer quality Brushless Alternator and Generator Set for Domestic and Overseas Market for more than 20 years.Up to now the total area of factories and offices is almost to 80, 000 M2 and 180 staffs work in our company.

Hengtong started the research and manufacture of 6.5-1760KW brushless AC Synchronous Alternator at 2004 and we've already developed the annual production to 10, 000 sets.Hengtong also produces quality Generator Sets with world class diesel engine such as Cummins, Volvo, Perkins, Daewoo, Styer, Deutz, Shangchai, Wudong, Paou, Jichai, Weichai and so on.Because of stronger research and engineers' hard working, Our Generator sets are applicable as normal and backup power source to communication project, oil industry, airport, air defense, highway and real estate industry.

Our brand "Hengjiu" has been awarded as a Yangzhou famous brand at 2006 which encourages all Hengtong people to offer a better service for our worldwide customers.

For advantaged equipment, standard workshop and high skilled workers, our company has got CE, ISO, CQC, CCS Certificates and other honors.Furthermore, Hengtong has professional sales and after-sales service team for Domestic and Overseas Markets.Under the guidance of the core philosophy "Customer and Service First", Hengtong Generator does provide top quality products and perfect service for all customers.
