Our experts in application engineering and project management are the key to achieving very short construction times, builds turn-key power plant with an output up to 60MW as base load power plant, peaking power plant or industrial self-captive power plant in cement, textile, mining or oil and gas industries etc. The power fuel can be diesel oil, bio-diesel, heavy fuel oil (HFO) or bi-fuel.
Not only the turnkey supply of diesel power plant, but also the individual service, including:
1. Engineering
2. Diesel engine with accessories
3. Mechanical auxiliaries: Fuel oil system, lube oil system; Primary and secondary cooling water system; Cpmpressed air system; Combustion air /exhaust system; etc
4. Electrical and I&C part: Alternator system; Transformers; Outdoor swithchyard; Plant control system, etc
5. Civil and building works
6. Commssioning
7. Training
8. Operation and maintenance
|
Gen-set |
TYPE |
5000GF1 |
5000GF3 |
|
Rated output |
kW(kVA) |
5000(6250) |
|
Rated voltage |
kV |
6.3 |
10.5 |
|
Rated current |
A |
573 |
343 |
|
Rated frequency |
Hz |
50/60 |
|
Rated speed |
rpm |
600 |
|
Power factor |
|
0.8(lagging) |
|
Phases and connection |
|
Three phases, six wires |
|
Overall dimensions |
l×w×h, mm |
11950×3450×3480 |
|
Net weight |
t |
105 |
|

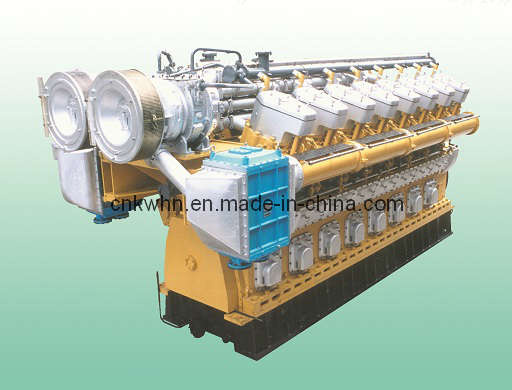

diesel |
Model |
|
X16V320ZD |
|
Type |
|
V model, 4 stroke, turbocharged, intercooled, for generating application |
|
Intersection angle |
|
45° |
|
Cylinder bore |
mm |
320 |
|
Piston stroke |
mm |
380 |
|
Total displacement |
L |
489 |
|
Rated output |
kW |
5588 |
|
1h power |
kW |
6146 |
|
Rated speed |
rpm |
600 |
|
Min. steady speed at zero load |
rpm |
232 |
|
Fuel consumption |
g/kWh |
196 |
|
Oil consumption |
g/kWh |
1.36 |
|
Mean piston speed |
m/s |
7.35 |
|
Compression ratio |
|
12.5 |
|
Mean effective pressure |
MPa(kgf/cm 2 ) |
2.37(23.25) |
|
Max. explosion pressure |
MPa(kgf/cm 2 ) |
15.5(152) |
|
Boosting pressure |
MPa(kgf/cm 2 ) |
0.33-0.34(3.24-3.34) |
|
Exhaust temperature |
C |
≤450C |
|
Gas temperature before turbine |
C |
≤600C |
|
Rotation direction |
|
Counter-clockwise
(viewing from flywheel end to free end) |
|
Ignition order |
|
Right side: 1-6-2-4-8-3-7-5
Left side: 8-3-7-5-1-6-2-4 |
|
Air pressure for start |
MPa(kgf/cm 2 ) |
1.18-2.94(12-30) |
|
Overall dimensions |
l×w×h, mm |
7570×3240×3480 |
|
Height of space for lifting the cylinder liner |
mm |
2425 above the crankshaft |
|
Net weight |
t |
65 |
|
Generator |
Model |
|
TFW950 |
|
Rated output |
kW |
5000 |
|
Rated voltage |
kV |
6.3 |
10.5 |
|
Rated current |
A |
573 |
343 |
|
Rated frequency |
Hz |
50/60 |
|
Rated speed |
rpm |
600 |
|
Number of poles |
|
10/12 |
Wuxi Kangwei Environment and Energy Equipment Co., Ltd, like a shining pearl, located alongside the beautiful sight of TaiHu lake and Lingshan Buddha in Wuxi city; Our company have mature technology and manufacturing workshop, such as welding, sheet metal, machining, assembling, polishing, electrical and inspection, through joint venture, our company have already engaged in designing and manufacturing centrifuges, marine boiler and large power diesel engine generator for many years
All equipments which designed and manufactured by us apply to the fuel oil system of diesel engine of marine and land power plant, Our company has passed the quality system identification, such as ISO14001and ISO9001, specialize in manufacturing diesel engine generator sets, oil booster unit, different type of oil filter including control by manual and automatic, oil separator unit, hot well unit, heat exchanger, exhaust oil damping heater exchanger unit, jacket water heating unit, injector cooling unit, silencer, oily water separator, sewage treatment plant, heavy fuel oil and diesel oil transition unit, oil pump unit, oil cooling unit and other auxiliary equipment which all. Most of product with good reputation in the market and have recognized by classification society home and abroad, such as CCS, BV, ABS
Considering the demand of diesel engine market, our company also have designed and manufactured kinds of filter with our own proprietary intellectual property rights; According to the way of control, the filter include control by manual, semi-automatic and automatic;
We will positively persist in promoting the healthy and good development of China's marine equipment, expect to build up good business cooperation with you in the future with our high quality and favorable price
