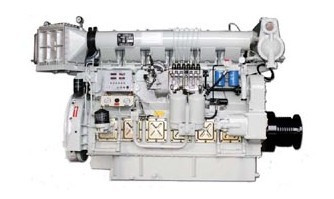

Marine diesel engine Z6170
Type: Straight, Four-stroke, Direction Injection, Supercharged, Air Intercooling
No. Of cylinders: 6
Bore/Stroke: 170/200 mm
Rated speed: 1000/1200/1350/1500 r/min
Continuous output: 220-450 KW
Fuel oil consumption: 200 g/KW. H
Lube oil consumption 1.0 g/KW. H
Rotation direction of crankshaft: The left engine resolves right, the right engine resolves right. To look from the flywheel side to the free side, to turn right is clockwise.
The left engine resolves left, the right engine resolves left. To look from the flywheel side to the free side, to turn left is counter-clockwise.
Starting method: Air motor, electric motor
Cooling method: Closed water cooling
Lubricating method: Pressure lubricating
Height of lifting piston from crankshaft: 1260 mm
Overall dimension: 2570*1340*1838 or 2570*1435*1838 mm (different model)
Net weight: 3200 kg
