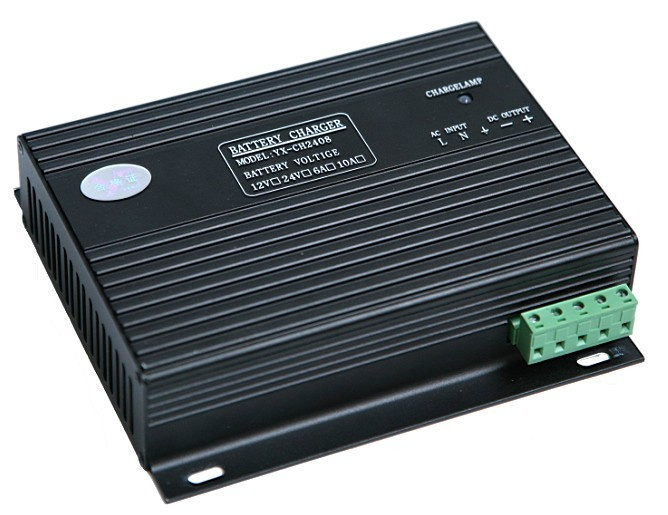

GENERATOR CHARGER(GENERATOR CHARGER(12V/24V 6A~10A))
1. Specifications;
Power Input
Voltage 160 ~ 250VAC
DC Output
Voltage 13.8 VDC/Current 6A ~10A
Voltage 27.6 VDC/Current 6A ~10A
Voltage and Current logo on the panel.
Charge Mode
Float
Environment:
Ambient temperature -40° C ~ 50 ° C.
Relative humidity in used 90% MAX.
Protection
Fixed voltage, current limited, auto-feedback.
Fuse protected
Short-circuit protected.
2.2. OPERATION PROCEDURE
2.1 Make sure you are using the correct battery charger.
2.2 Check for correct input voltage on the battery charger.
2.3 Connect power to lines N & L.
2.4 The indicate LED marked "CHARGELAMP" on the panel should be illuminated when switch power on. The DC output voltage should be as follow: 13.8± 0.2VDC or 27.6± 0.2VDC
