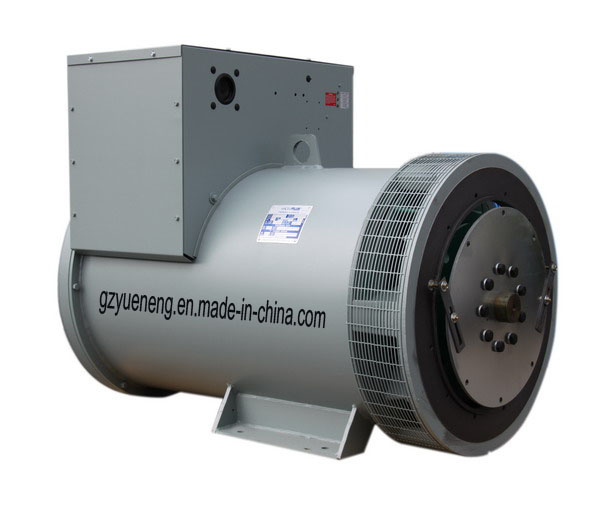

TOP Power Marathon Alternator (8~350 KW)
MP series three-phase AC brushless 500 base in the Marathon synchronous generator is the Electric company (Electric Marathon U. S. A) based on MAGNAPLUS drawings, improving the design of new development new brushless generator.
MP series diesel engine and generator 500 base component fixed or mobile power, it is suitable for various occasions, but also can be used as emergency power supply. The design is unique, generator series MP advanced structure, good performance, reliable operation, easy to use, suitable for various applications and climate conditions, the current international advanced level.
Excellent electrical properties
1 steady-state voltage rate ≤ 1%
2 the normal pressure rate + 20-15% In Un (60%) cos φ ≤ 0.4 lag)
3 voltage adjustment range > ± 10% in the Un
4 line pressure waveform distortion sinusoidal sex rate < 5%
GM & MP SERIES: |
|
Model | Rated Power | Rated Voltage | Rated Current | Frequency |
|
GM-8.6-4 | 8.6 | 400V | 15.5 | 50Hz |
|
GM-12-4 | 12 | 400V | 21.7 | 50Hz |
|
GM-16-4 | 16 | 400V | 28.9 | 50Hz |
|
GM-20-4 | 20 | 400V | 36.1 | 50Hz |
|
GM-24-4 | 24 | 400V | 43.3 | 50Hz |
|
GM-30-4 | 30 | 400V | 54.1 | 50Hz |
|
GM-32-4 | 32 | 400V | 57.5 | 50Hz |
|
MP-40-4 | 40 | 400V | 72.2 | 50Hz |
|
MP-48-4 | 48 | 400V | 86.6 | 50Hz |
|
MP-50-4 | 50 | 400V | 90.2 | 50Hz |
|
MP-58-4 | 58 | 400V | 104.6 | 50Hz |
|
MP-64-4 | 64 | 400V | 115.5 | 50Hz |
|
MP-70-4 | 70 | 400V | 126.3 | 50Hz |
|
MP-75-4 | 75 | 400V | 135.3 | 50Hz |
|
MP-80-4 | 80 | 400V | 144.3 | 50Hz |
|
MP-90-4 | 90 | 400V | 162.4 | 50Hz |
|
MP-100-4 | 100 | 400V | 180.4 | 50Hz |
|
MP-104-4 | 104 | 400V | 187.6 | 50Hz |
|
MP-120-4 | 120 | 400V | 216.5 | 50Hz |
|
MP-140-4 | 140 | 400V | 252.6 | 50Hz |
|
MP-150-4 | 150 | 400V | 270.6 | 50Hz |
|
MP-160-4 | 160 | 400V | 288.4 | 50Hz |
|
MP-180-4 | 180 | 400V | 324.8 | 50Hz |
|
MP-200-4 | 200 | 400V | 361 | 50Hz |
|
MP-217-4 | 217 | 400V | 391.5 | 50Hz |
|
MP-220-4 | 220 | 400V | 396.9 | 50Hz |
|
MP-240-4 | 240 | 400V | 433 | 50Hz |
|
MP-250-4 | 250 | 400V | 451 | 50Hz |
|
MP-270-4 | 270 | 400V | 487.2 | 50Hz |
|
MP-300-4 | 300 | 400V | 541.3 | 50Hz |
|
MP-320-4 | 320 | 400V | 577 | 50Hz |
|
MP-350-4 | 350 | 400V | 631.5 | 50Hz |
|
Guangzhou Top power equipment Inc. Was established in 2005, with its headquarters in Guangzhou, China, Our factory is located in Panyu industrial Zone, Guangzhou, which was one of the pioneer of generator sets business in China.
At present, we have a modern factory which covers 18, 000 square meters, and can mass produce various generator sets from 15kw to 1500kw, such as soundproof gensets, trailer mounted gensets, vehicle carried gensets, automatic parallel control panel, auto transfer switch panel(ATS), high voltage gensets, marine gensets with Marine Classification Society Approvals.
We have set up a long-term cooperation relationships with several worldwide famous engine and alternator manufacturers since 2005.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon. For more information, please contact us directly.
