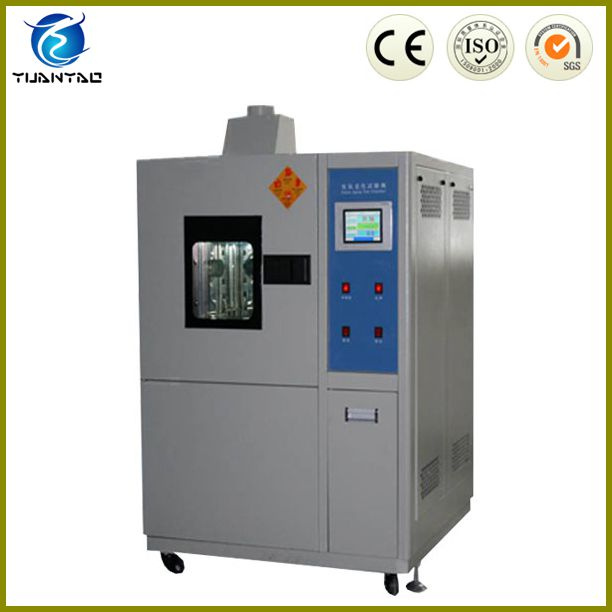

Masterly Ozone Resistance Test Machine
Introduction&Application:
Rubber tester, Aging ozone resistance test machine, Manufacture ozone resistance test machine, Precision test ozone resistance test machine, Customization ozone resistance test machine, Good quality ozone resistance test machine, Well performance ozone resistance test machine, Exquiste ozone resistance test machine are particularly prone to ozone attack and exposure can cause a crazing effect on uncovered surfaces, eventually leading to cracking and facture. Ozone attack can also bring additives to the surface and cause the rubber compounds to separate. Many test methods exist for testing rubber in the form of ASTM, BS or ISO standards. Here materials are placed in a chamber containing a ozone-rich atmosphere for a period of time, after which they are assessed for damage or tested for physical properties such as strength. Ozone Resistance Tester simulates and strengthens the conditions of ozone, study the effects of ozone on rubber, and then take effective anti-aging measures to improve the life of rubber products.
Feature:
1.5.5'' Touch panel controller, simple and friendly menu
2. Unprecedented uniform exposure of all specimens using a rotating carousel
3. Closed-loop servo control ensures highly stable ozone concentration levels
4. Integrated ozone destructor with built-in safety interlocks
5. Ozone resistant wetted materials
6. With castors
7 Best after sales service: One year free parts maintenance.
8 Meet international test standards.
9 Customization is available & welcomed.
Technical parameters:
Please see the label.
More details about the specification, please contact Vickey Huang, thanks for your attention.
Except Ozone Resistance Tester, Rubber tester, Aging ozone resistance test machine, Manufacture ozone resistance test machine, Precision test ozone resistance test machine, Customization ozone resistance test machine, Good quality ozone resistance test machine, Well performance ozone resistance test machine, Exquiste ozone resistance test machine, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
We assure you of our best services at all times. We wuold be delighted if we could make an deal.
|
Model |
YOT-080 |
YOT-150 |
YOT-225 |
YOT-408 |
YOT-800 |
YOT-1000 |
|
Inner chanber size W*H*D(mm) |
400*500*400 |
500*600*500 |
500*750*600 |
600*850*800 |
1000*1000*800 |
1000*1000*1000 |
|
Exterior chanber size W*H*D(mm) |
900*1550*910 |
950*1500*1050 |
950*1650*1150 |
1050*1750*1350 |
1450*1900*1350 |
1450*1900*1550 |
|
Temperature Range |
RT to 80ºC |
|
Humidity Range |
45%RH´98%RH |
|
Performance |
Temp.& Humi fluctuationn |
±0.2ºC,±0.5%RH |
|
Temp. & Humi uniformity |
±1.5ºC,±2.5% RH when RH is ≤75%,±4%RH when RH is ≥75%(tested with the empty chamber, 30minutes after stabilization) |
|
Temp. & Humi Resolution |
0.01ºC,0.1% RH |
|
Ozone concentration |
0 to 1000PPHM |
|
Ozone control accuracy |
±10% |
|
Generating method |
Static emissions |
|
Sample rotating speed |
1time per minute |
|
Material |
Exterior chamber material |
Stainless steel plate+Powder Coated |
|
Interior chamber material |
SUS#304 stainlass steel plate |
|
Insulation |
PU & Fiberglass wool |
|
Ozone analyzer |
Imported ozone density analyzer |
|
Ozone generator |
Silent discharge type ozone generator |
|
System |
Wind Circulation |
Sirocco fan |
|
Heating system |
SUS#304 stainless steel high-speed heater |
|
Humidifying |
Surface evaporating system |
|
Cooling |
Imported compressor, finned type evaporator, air-cooling condenser |
|
Dehumidifying |
ADP critical dewpoint cooling/dehumidifying method |
|
Controller |
Digital electronic indicators+S.S.R.With PID automatic calculation capability |
|
Other components |
Vacuum glass inspection window, cable port(50mm),control status indicator lights, chamber lamp, loading shelves(2pcs for free) |
|
Safety Devices |
Overheating circuit-breaker, compressor overload protection, control system overload protection,humidifying system overheating protection, breakdow indicator light. |
|
Power supply |
220V;380∨´ 60/50Hz |
|
Customization |
Customization of inner chamber size, temperature & humidity range etc. |
Founded in 2009, Dongguan Yuanyao Electronics Technology Co., Ltd. Has become a leading manufacturer of environmentally friendly test chambers.
Our main products include Programmable Temperature & Humidity Chambers, Thermal Shock Testers, Walk-In Environmental Test Rooms, LCM (LCD) Aging Chambers, Salt Spray Testers, Aging Ovens, Vibration Combined Test Chambers, Steam Aging Testers, etc.
We have helped companies in a wide range of industry sectors including photo electricity, electronic communication, semi-conductor, electric appliance and machine, spaceflight, automobile, locomotive, telecommunication, food and pharmacy and academic institutions realize their climate test objectives.
We have developed rapidly these years. The commitment of our experienced team of engineers has been and continued to be excellence - excellence in engineering and design, excellence in manufacture and excellence in the service that we provide for our ever increasing lists of customers.
Our resources and expertise enable us to supply high quality equipment ranging from simple benchtop chambers to major "turnkey" projects. We can produce equipment according to customers' Exact requirements, from conception to completion.
We will take an active role to ensure that our equipment proposed will not only meet the specifications but also will be made as per the budget. We also provide timely delivery.
