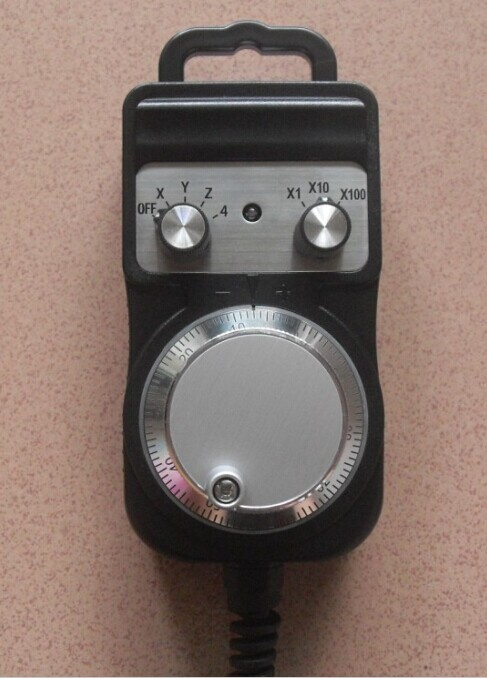

Manual Pulse Generator
Characteristics description:
(1). USES the high quality encoder, dish, metal yards scale accurate, high precision, simple sense of good, feel is good
(2). The DC 5 V or 12 V power system can be chosen.
(3). Provide 25 or 50 PPR PPR pulse output number.
(4). Output interface type: Voltage (single end), differential two output to choose from, and cooperate with all kinds of application.
(5) work LED indicator light (attached, when shaken the handwheel, LED lights flashing, stop shaking, LED lamp).
6 wire tensile life guarantee 200000 times.
Simple installation, high compatibility behaved.
8). Low cost solutions.
3. Model shows
For the brand, said the new macro chang wireless technology products
L for cable connection mode; W for wireless connection
PG for product name: Representative general electronic handwheel
XX said product parameters: Product output driver parameters by the way, work voltage etc. Different working voltage, The output of the corresponding to different driving mode, suitable for different systems.
01: 5 V power supply, the output pulse 50 PPR; Phase output for A, / A and B, / B; Mining
Use TTL output, drive ability +-20 mA;
Suitable for system: To compare, PC_BASE system suitable for general
02: Power supply, the output pulse DC12V 25 PPR, phase output for A, B; Drive signal, flooding Move ability, 20 mA.
Suitable for system: Japan mitsubishi MELDAS M64, M65 etc MELDAS system (for
DC12V power supply, and the output for DC5V), Italy SELCA etc.
Four selection guidelines.
General wired or wireless electronic handwheel
Parameters: 5 V power supply, the output pulse 50 PPR; Phase output for A, / A and B, / B; The driver can output, TTL Force +-20 mA;
Suitable for system: To compare, PC_BASE system suitable for general, typical system such as: Taiwan M600 M500 M520I T300 treasure yuan
Series, Taiwan's new generation SYNTEC system, Hyde union Higerman, the sea that g HANUC, guangzhou nc GSK, Open CNC, Kane emperor KND numerical control system, etc.
Foreign system: Siemens, NUM, Spanish law case FAGOR (NEW, 8055 I), etc.
General wired or wireless electronic handwheel
Parameters: Power supply, and the output pulse DC12V 25 PPR, phase output for A, B; Drive signal, drive ability, 20 mA.
Suitable for system: Japan mitsubishi MELDAS M64, M65 etc MELDAS for power supply system (DC12V, output DC5V), for Italy SELCA etc.
