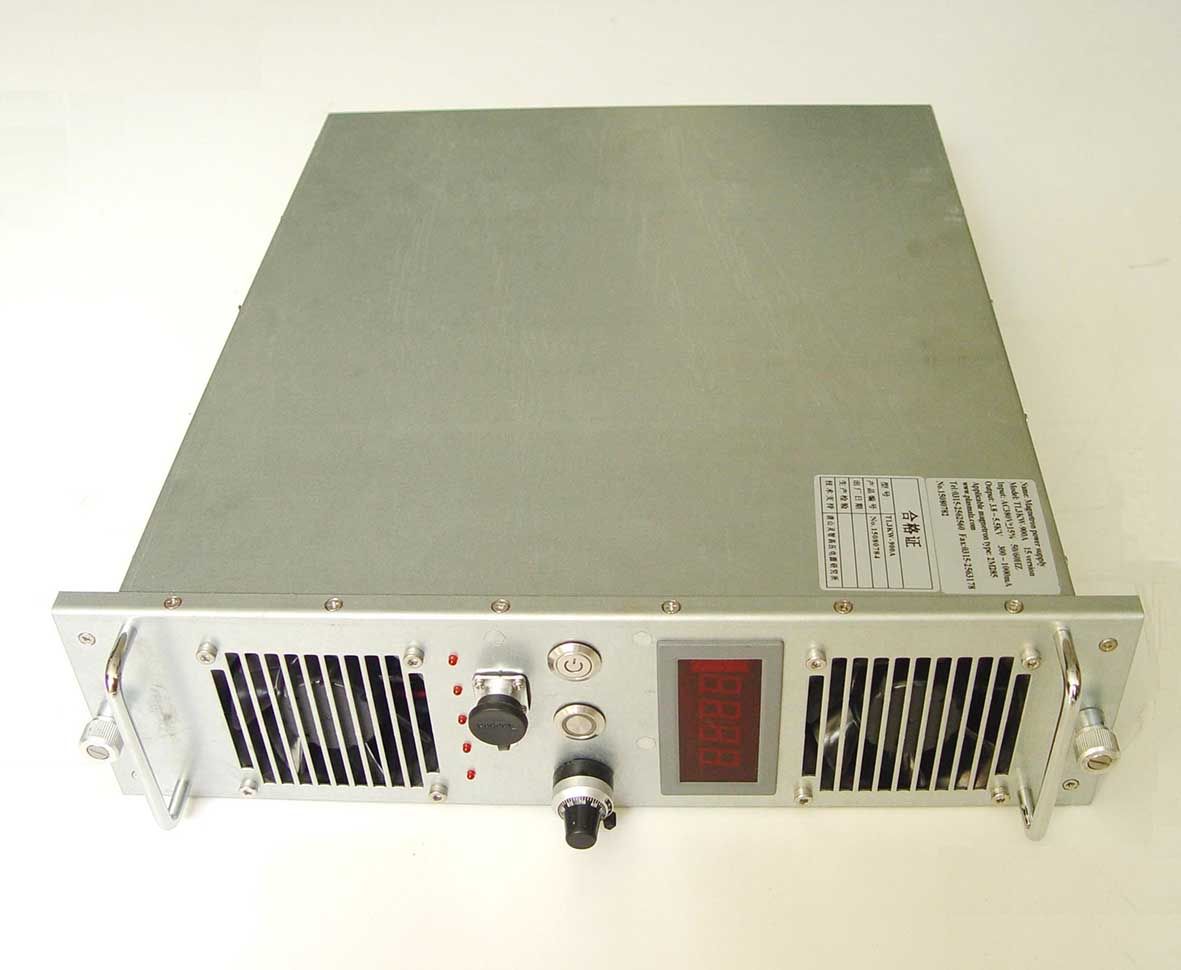

Model TL3KW-A1000
Input power limit 7.0KW
Rated input voltage/current Three-phase AC380V+15% 8A-10A
Power Factor 500mA-1000mA >0.95 (Full power range>0.85)
Rated output voltage 3.8KV-5.5KV n>95%
Rated output current 1000mA
Output current adjustment range 300mA --1000mA
Anode Current Precision <±4% 24h
Anode current rump-up time 10s
Filament supply (single) DC20A n>88%
Voltage Mode: 0V-5.0V (analog control)
Current Mode: 0-20mA(analog control)
Operating ambient temperature -20ºC ~ 45ºC
Manual control 1. ON-OFF control 2.Power control:DC 0V-5.0V or 0-20mA
Cooling 2 pcs adjustable temperature cooling fan:80×80mm
I/O interface 9 pin communication interface,analog output/analog input
Grounding method Housing ground and connect to cathode of magnetron
Design life time 30,000h
Standby consumption <5W
Testing load condition KPL 910 clopper road
Overall size and weight 44.0 (L)×36.6(W)×99 (h)mmWeight:11.40kg
Quality assurance One year warranty
