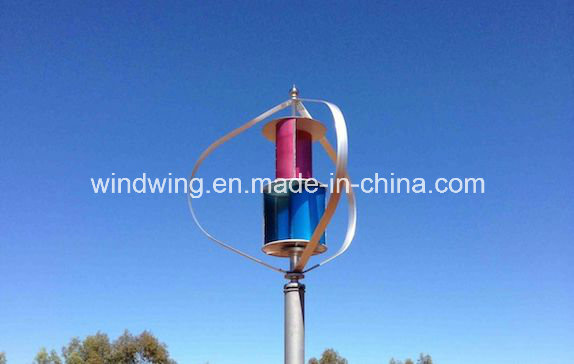

Maglev Wind Turbine for Bts

Maglev Wind Turbine for Bts
Price: US $ 1/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Western Union

Vertical axis wind turbine

 Lowest cut-in wind speed
  1 m/s for power production

No noise, no vibrations
 (sound level< 25 dB at 7 m/s from 10 m distance)

Adaptable for hybrid solutions
  with solar and other sources of energy

Permanent power supply
  from wind/solar and continuous battery charging

Technically advanced Maglev generator
  No mechanical friction

Best price-performance ratio All weather resistant
  (rain, ice, heat, salt, sand)

Independent of wind direction

Suitable for roof fixation

Maintenance-free

Safety for people and nature


Project









PARAMETERVERTICAL WIND TURBINE MODEL NUMBER
WKV- 1000
Rated Power1KW
Size(Height / Diameter)2.1/2(M)
Blades Materialaluminum alloy
Start-up Wind Speed1m/s
Minimum Power Generation Wind Speed2m/s
Cut-in wind speed3m/s
Rated Wind Speed13m/s
Cut out Wind Speed15m/s
Survival Wind Speed60m/s
Generator TypeAC, 3 phases
Controller Output Voltage24V/48V
Controller Braking System3-Phase short circuit  by NFB brake
Ambient Temperature.-30 ~ 50 °C
Prod Model: WKV-1000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Noise: <25dB
DC Output: 24VDC/48VDC
Number Of Blade: Three Blade
Rotating Shaft: Vertical
Stress Way Of Blade: Resistance
Phase: Three Phases
Certification: CE&RoHS
Hefei Wind Wing Energy Technology Co., Ltd. is the earliest one of the R & D wind energy generation equipment in China. Our company develops under the support of Chinese Wind Power Association, depends on Chinese Academy of Sciences Institute of Automation the long-term technical guidance and the close cooperation. We take the "the national initiative energy crisis subject" as our development goal. Now we have a strong R&D group, and researched and developed a profession leading WIND AND SOLAR SUPPLEMENT new energy generating system.

People are paying attention to our products, for the features: Green energy, environmental protection, regenerative and natural energy, etc. Our systems have widely applied in so many fields: City view, communication station, military army, science & education, weather department, fishing vessel, irrigation, oil well, seawater desalination, open country inspection, and so on.

As the first domestic enterprise developing the WIND AND SOLAR SUPPLEMENT new energy, we have passed ISO9001: 2000 quality and management system certification and EU CE certification. Our WIND AND SOLAR SUPPLEMENT new energy range systems are faithful and popular in the domestic and foreign clients, becoming the profession leading enterprise.

We always persist in the enterprise culture of "being a creditable person, live a worth while life", we insist on providing vast customers with the first-class goods, the top-notch technology heart and soul. We heartedly wish to intensively co-operate with old and new customers for greeting together with the challenge WIND AND SOLAR SUPPLEMENT new energy spring arrival!
