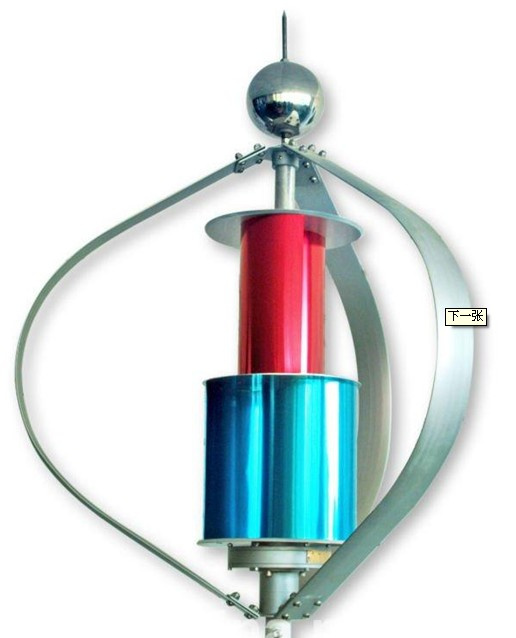

Maglev Vertical Axis Windmill Generator 1000W (SP-1000)

Detailed Product Description

Maglev vertical axis windmill generator 1000W
1. Minimum power wind speed: 2m/s
2. Wind speed start: 1m/s
3. High quality
4. CE

Maglev vertical axis windmill generator 1000W

Description:

Rated Power: 1000W
Wind wheel diameter: 2.0M/2.1
Weight: 160KG Blade Material: Aluminum Alloy
The number of blade: 3
Minimum wind speed start: 1m/s
Minimum power wind speed: 2m/s
Minimum charge wind speed: 3m/s
Rated wind speed: 13m/s
Maximum cut off wind speed: 15m/s
Resistant to wind speed limit: 60m/s
The type of Generator: Three-phase AC maglev wind turbine

Controller output voltage: 24V
Controller output current: <50AMP
Controller brake system:
Over speed automatic Three-phase short-circuit braking
Normal operating temperature: -30~50 ° C

(1) Safe in operation:

A. Due to the darrieus design and aluminium alloy blade are based on maglev generator,
When wind in different directions blows on the wheel,
The series products are rotating very easily at 1 m/s (starting wend speed).
Morever, its blades will not be able to fall down, broken or thrown far away.
B. With sensitive two colors on wind turbine boxes, birds issues have rarely been a concern.
It can be easily seen by birds or bats.

(2) Noise:
The way of blades turning is clockwise that meets the aerodynamic principles.
Therefore, the series make noise less than 40 dB in operation. (HAWT: 100dB)

(3) Capacity of wind resistance:
Due to the advantage of darrieus design, turbines suffered in stronger wind force is minimized.
Once in a higher wind speed more than 65 meters/per second, such as hurricane, turbines would need to be
Shutdown gradually for safety reasons.
