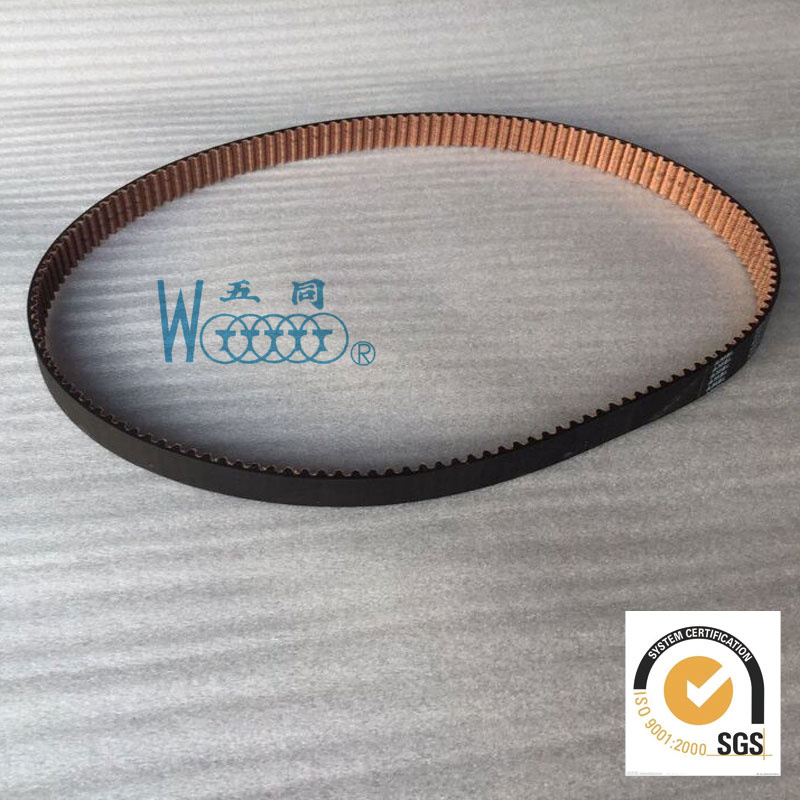

Character: WuTong synchronous belt's advantages are transmission and conveyor of high efficiency, good heat resistance and chemicals resistance, good shock resistance, transmission without noise, good static conductivity and flexing performance.
Purpose: It is the same with the working conditions of high power and speed, wide center distance, high temperature and transmission precision. For example, automobile, tobacco, machinery, textile, chemistry etc...Especially, equipment for export, improved and types of new equipment.
Type: Module synchronous belt, arc tooth synchronous belt, special synchronous belt, synchronous belt for automobile and double sided synchronous belt.

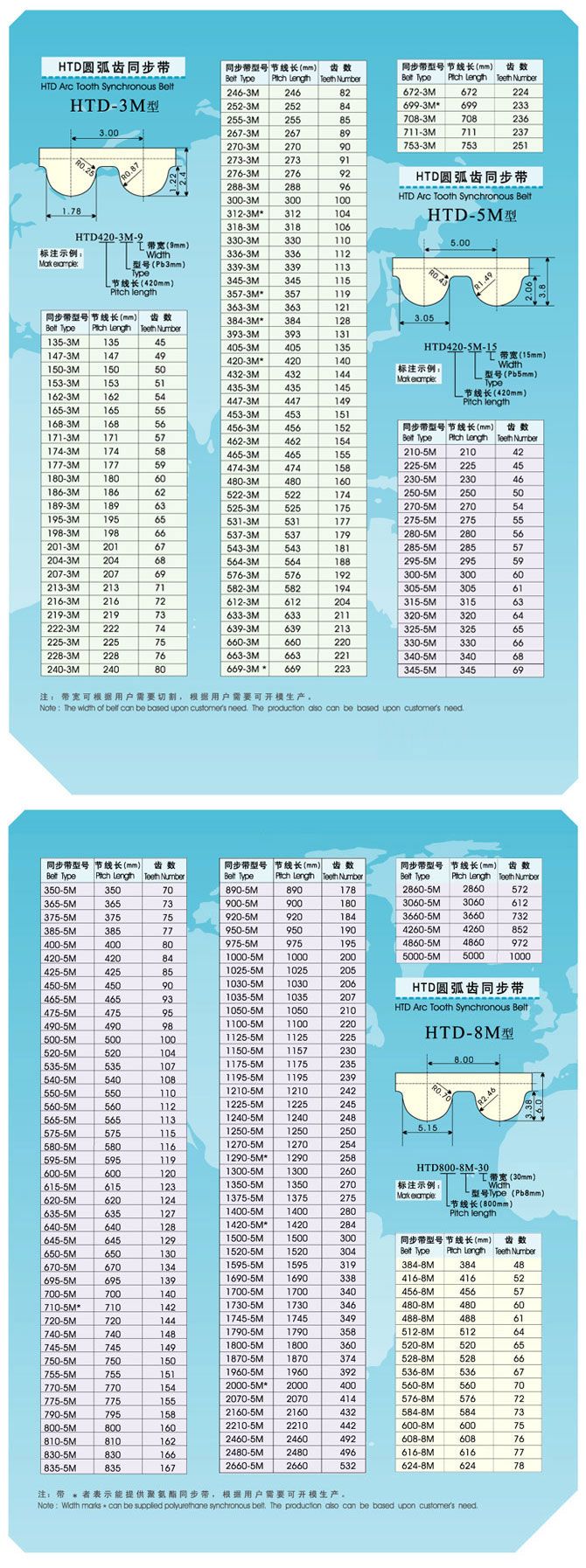

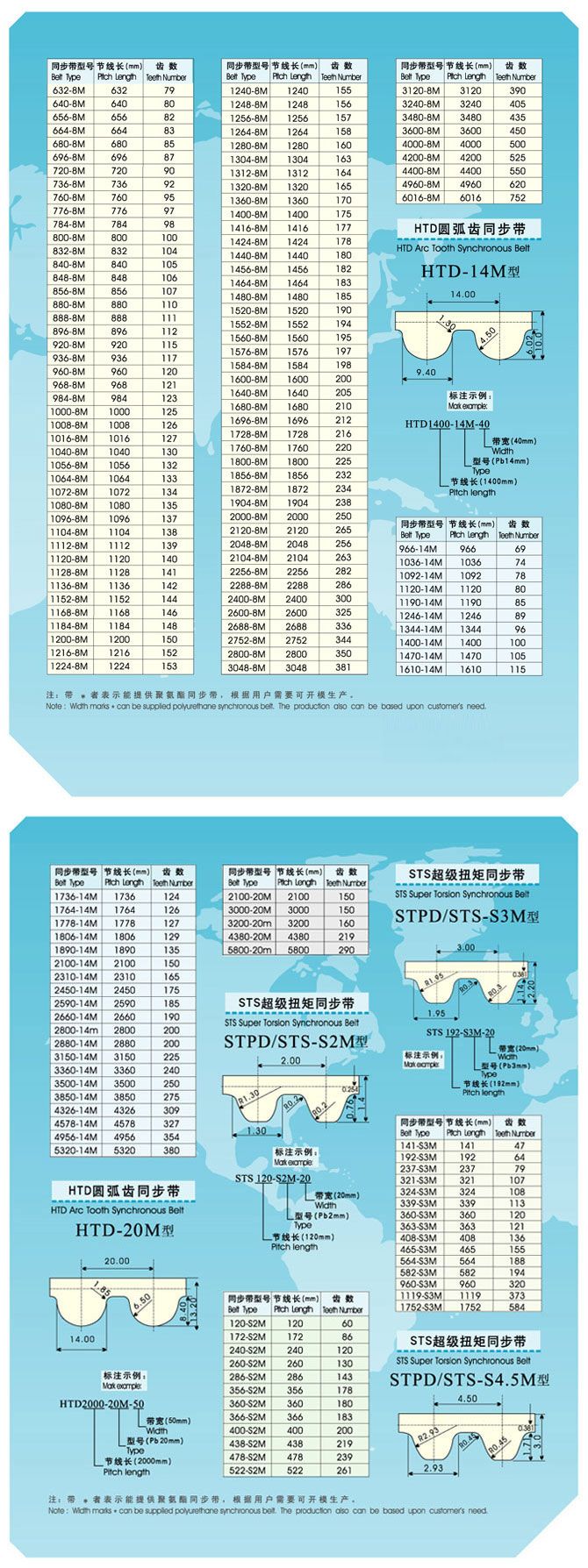

Physical and mechanical properties| TYPE | 3M | 5M | 8M | 14M | 20M |
Double synchronous belt height
hd | 3.20 | 5.30 | 8.20 | 14.90 | 21.20 |
Single synchronous belt height
hs | 2.40 | 3.80 | 6.00 | 10.00 | 13.20 |
| Teeth height ht | 1.22 | 2.06 | 3.38 | 6.02 | 8.40 |
| Pitch Pb | 3.00 | 5.00 | 8.00 | 14.00 | 20.00 |
| Tooth apex Angle ra | 0.87 | 1.49 | 2.46 | 4.50 | 6.50 |
| Fillet radius rr | 0.24~0.30 | 0.40~0.44 | 0.64~0.76 | 1.20~1.35 | 1.77~2.01 |
| Dedendum width S | 1.78 | 3.05 | 5.15 | 9.40 | 14.00 |
Tooth profile Angle
2β≈ | 14° | 14° | 14° | 14° | 14° |
| Section zenith distance δ | 0.381 | 0.572 | 0.686 | 1.397 | 2.160 |
Shanghai Wutong Synchronous Belt Co., Ltd. Was founded in 1988. It has about 260 employees and 25 million fixed assets. The acreage of factory is 35, 000 sq. Metre. The production value of a year gains about 100 million RMB
Our factory specialized in producing transmission belt and transmission pulley.
The main products are synchronous notched belt, ribbed belt, cut side V-belt, nylon based belt, light conveyer belt, rubber flat belt, open end variable speed belt, subminiature V-belt, nylon sericin belt and differents of rubber productions. We also supply types of transmission pulley. Our productions can be widely applied in various fields of transmission. For example, automobile, tobacco, lift, textile, electricity, chemistry, electron, iron and steel industry exc...Our customers are almost extended to everywhere in word. And our technology is one-up at home.
Our course is that quality is life, and our arm is satisfying every customer. We continually empolder new productions, and hope to enter new fields. Strict management system of current enterprise and tropical service attitude make our company stronger and more activated.
From 1993 our company is appraised for model unit of Shanghai suburb system. From 1999 our company is appraised for Shanghai model unit. Our company passed ISO 9002 authentication of International Product Quality in Jan. 1999. However, we also passed authentication of ISO9001 (2000) in DEC. 2001.
