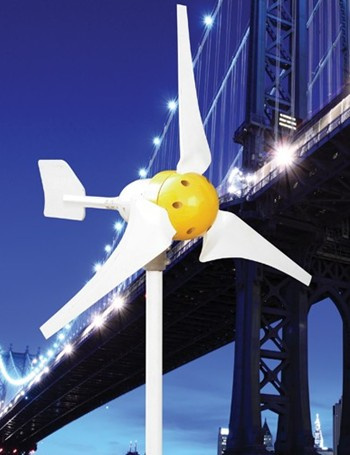

1)200W wind turbine system
2)1m/s start-up wind speed
3)Light in weight: 39Kg
4)Max power is 400W
5)Widely used for street lightIing
|
Parameter |
|
Model |
Guangmang |
|
Max power(W) |
400 |
|
Rated voltage(V) |
12/24 |
|
Max current (A) |
33/17 |
|
Rotor diameter(m) |
1.5 |
|
Start-up wind speed (m/s) |
1.5 |
|
Rated wind speed(m/s) |
35 |
|
Blade NO. ( piece) |
3 |
|
Blade material |
Glass fiber reinforced plastic |
|
Generator life (year) |
15-20 |
|
Generator gross(kg) |
15 |
|
Tower height (m) |
6 |
Shenzhou Wind-driven Generator Co., Ltd is one of the most professional manufactures which has been involved in middle &small horizontal wind turbine business for more than 15 years.
In order to suit the individual needs from different clients, we developed three different series of products:
M-300(100W) & S-600( 600W)
Light in weight and good appearance, dedicated to wind-solar hybrid lighting system use.
2. E-series (1kw-5kw)
Simple structure, which is dedicated to home and farm use. (Can be used in both off-grid and on-grid system, but forgive for we can not provide battery and on-grid inverter. )
3. D-series (10kw-30kw)
High technology with intelligent control system, hydraulic yaw and hydraulic brake keep the security. (Can be used in both off-grid and on-grid system, but forgive for we can not provide battery and on-grid inverter. )
4. G-series (30kw&50kw)
Only dedicated to on-grid use. It has high technology with intelligent control system, and full set of protection system. (No need separate on-grid inverter).
And till know, our products have already taken the leading role in the line of manufacturing small wind turbine generators in China. And also, we've been exported more than 40 countries, and received high affection and reputation from the users.
