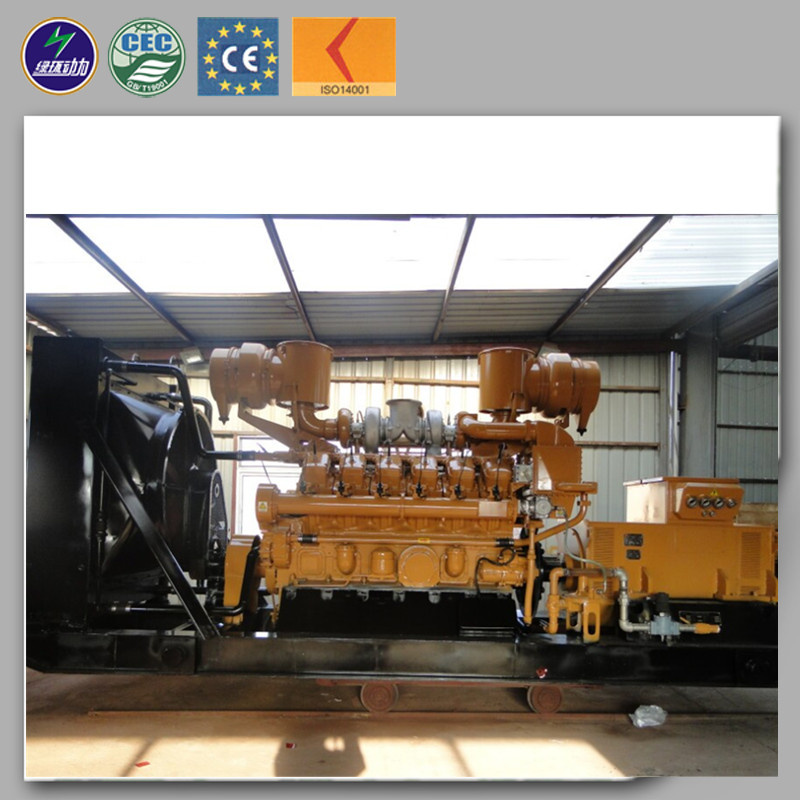

Lvhuan Power 500kw Natural Gas Generator 3 Phase Generator

Lvhuan Power 500kw Natural Gas Generator 3 Phase Generator
Price: US $ 124990/Set
Trade Terms: FOB,CIF,EXW
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Lvhuan power 500kw natural gas generator 3 phase generator

We have a sales staff can speak in Russian, If you from  Russia, Kazakhstan , Ukraine, Belarus,
Uzbekistan, and other countries,you can visit our Russian website: www.lvhuanpower.ru.

Natural gas engine generator general description:
This type of generator is choose gas as power. Gas will be burned directly inside of engine's cylinders, then give machinery force to alternator to produce electricity power.
There are mainly 3 parts on one generator set: gas engine,alternator and radiator. The generated power
can be connect to national grid, or for daily use and industrial use.

Natural gas engine generator simple description:
Manufacturer supply
Capacity: 3.0-4.0kw/h per Cubic meter gas
Power supply range:10KW-1100kw
More than 1 set can be parallelled
Continuous power supply range: 8-880kw
Standard componient and assembly
Multi-option of control panel
With CE and ISO certificate


Parameter of Natural Gas Generator Set
Model Number (Engine Type)LHNG500
Brand NameLVHUAN
Prime Power/Standby Power400KW/500KW
Rated Speed1000/1200RPM
Rated Frequency50/60Hz
Rated Voltage400V/230V
PhaseAC 3-Phase, 4 wire
Voltage Stability≤±2%
Voltage transient≤±10%
Voltage Stable time≤1s
Heat consumption≤11mj/kw.h
Lubricant Consumption≤1.0g/kw.h
Engine Capacity71.4L
Cylinder Number12-V
Cylinder Bore190mm
Stroke210mm
Starting SystemDC 24V electric motor
Cooling methodwater cooler
Lubricant methodPassive and flying lubricant
Isolation classH
ProtectionIP23
AlternatorSiemens
Power Factor0.8 lagging
Exciting methodbrushless
Colouryour choice
CertificatesISO 9001:2008, CE
Warranty1 year or 1000 running hours which arrives first
TypeOpen
Control systemAutomatic alarm system
Size6200x2100x2800mm
Weight12500kg


Machine supply details:
Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,
including:magneto,high-tension coil,sparking plug.
Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.
Pressure charging system:Pulse Mixed-flow  supercharger, compression ration is  1:8,meet engine's  requirement   for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.
Full automatic system for optional: ATS for automatic switch form national grid power to generated power, double direction.
Low voltage cables between generator set and control room: available if needed.

Features of our biomass generator:

1.Pure copper water tank for best cooling effect
2.Famous component brand to ensure overall quality, Eg. Siemens,Standard, Stamford.
3.Expansion fitting combined with shrinking fitting give high tightness to the system.
4.Safety guarantee form electromagnetic valve as well as back-fire relief valve
5.Residual heat CHP recycle system available for choice.

FAQ:

1.How to choose the right model?
   A: It depends on continuous output power, Voltage, Frequency and fuel type.  Please tell me what fuel
(natural gas, biogas, biomass gas,wood syngas, methane,coal gas) or raw material(like wood, grass,
nutshell and so on) The right model of generator will be recommend soon.
Me and our engineers are always available at your service.

 2.What is the oil consumption and capacity per hour?
  A: 1.0-1.63g of lubricant oil consumption per hour.
1.0 Cubic meter gas can produce 1.5-3.0kw/h power. The capacity depends on gas energy(Kcal). E.g 1.0 Cubic meter natural gas produce
about 3.0-4.0kw/h

3.What is the overhaul?
   A: About 30000 working hours. A week is enough to finish.  We offer manual for weekly, monthly and
overhaul maintenance.

4. What is the warranty?
    A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts
are not free. What's more, a set of spare parts will be shipped together with generator set free of charge.

5. How is the after sale service and maintenance?
A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime.
Our before-sale, in-sale and after-sale service are all trustable, you can name it.

6. What products we offer?
Biomass gasifier,Biomass/syngas generator,biogas generator,Natural gas(CNG,LNG) / methane generator,
Coal gas generator,Diesel generator.
Generators can parallel together to form large power, E.g. 5 sets 400kw biomass generator form 2000kw
biomass generator system.

Our Services :
1.Pre-sale service:
A.Our engineers are available for onsite prospect before installation free to charge.
B. Foundation drawing and detailed Dimension free form us.

2.In-sale service:
A. Onsite overall guide installation,operation and maintenance training .
B. Assistance and instruction of trial running.

3.After-sale service:
A. 24 hours online or in person after sale service.
B.12 months warranty. We take care of all errors/breakdowns in this period.

4.Spare parts service:
A.All spares parts on our gensets supplied by us.
B. Free spare parts together with genset when shipping.

Please feel free to ask question and quotation.
Prod Model: LHNG500
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine Capacity: 71.4L
Cylinder Number: 12-V
Cylinder Bore: 190mm
Stroke: 210mm
Starting System: DC 24V Electric Motor
Gas Source: Natural Gas
Power: 500kw/400kw
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.

Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.

We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.

Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
