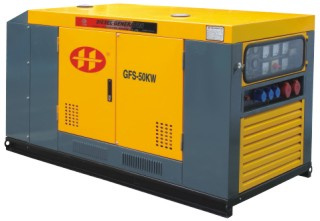

Gf3 Series Lownoise Diesel Generating Sets:
With a compact structure of small size and light weight soundproof shield which has an elegant appearance is easy to be assembled or disassembled and reduces noise level effectively. The sets are operated conveniently.
It use famous brand engine, advanced generator made designs of ones own and completely sealed automatic voltage regulator(AVR). The performance in which is excellent, the running is reliable. Technical parameter of low noise diesel generating sets rated voltage 400V. rated speed 1500r/min. rated frequency 50Hz. Rated power factor 0.8 (lagging).
| Type | GFS-8 | GFS-10 | GFS-12 | GFS-15 | GFS-20 | GFS-24 | GFS-30 | GFS-40 |
| Rated output(kw) | 8 | 10 | 12 | 15 | 20 | 24 | 30 | 40 |
| Rated voltage(v) | 230/115 | 230/115 | 400/230 | 400/230 | 400/230 | 400/230 | 400/230 | 400/230 |
| Rated current(a) | 52/104 | 65/130 | 36.1 | 43.3 | 54.1 | 72.1 | 90.2 | 135.3 |
| Type | 295AD | 295AD | 295AD | 395AD | 495D | 495AD | 495AZD | 4315D |
| 12h power (kw) | 15 | 15 | 15 | 22 | 28.5 | 28.5 | 28.5 | 60 |
| Fuel consumption (g/kw.h) | 245 | 245 | 245 | 245 | 235 | 233 | 233 | 233 |
| Starting type | Electric starting (DC12/24V) |
| Type | ST-8 | STC-10 | STC-12 | STC-15 | STC-20 | STC-24 | STC-30 | STC-40 |
| Rated power (kw) | 8 | 10 | 12 | 15 | 20 | 24 | 30 | 40 |
| Excitation mode | TRIPLE HARMONIC EXCITING |
| Insulation class | F |
| Insulation class | IMB35 OR IMB35 With FLANGE |
| Outside dimension(mm) | 1500 | 1500 | 1700 | 2000 | 2350 | 2350 | 2520 | 2860 |
| 700 | 700 | 800 | 900 | 950 | 950 | 50 | 1330 |
| 900 | 900 | 1000 | 1040 | 1165 | 1165 | 1190 | 1560 |
| Net weight(kg) | 700 | 700 | 900 | 1000 | 1480 | 1950 | 2400 | 2500 |
