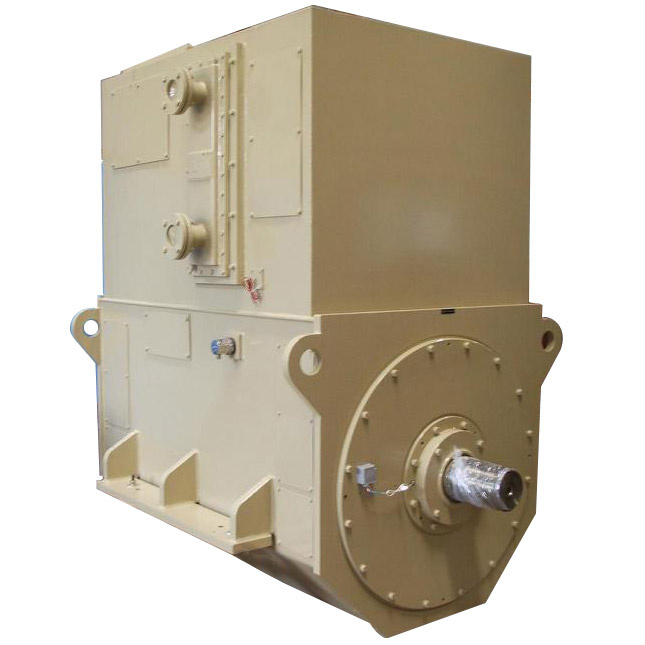

Our company is the agent for selling Marine special&low speed generators that made by CSIC Electrical Machinery Science&Technology Co., Ltd. On Siemens technology.
1\Basic technical requirement
* Requirements IEC 60034
* Relating China's national standard and departmental standard
* Relating standards of matching equipment plant
* Enterprise standard
Dimension and weight measures with international measurement, voltage with 110~11, 000V, current with 40~6850A, capacity with 170~6000kVA
* Specification and Ambient temperature 40º C~50º C
* Rated output 120~6000kVA
* Rated Voltage and Connection 110~11000V / 3P/4W
* Rated Current 170~6850A
* Rated Power factor 0.8(lagging)
* Rated Fequency 50/60Hz
* Rated Speed 1500 / 1800 rpm
* Direction of rotation CCW / DCW (face to DE)
* Insulation class F
* Temperature rise class F
* Load general load
* Operation Single / sustained parallel operation
* Voltage adjustment range ± 10%
* Efficiency 94.2%
4\Mechanical data
* Length× Width× Height According to the outline drawing
* High of shaft center according to the outline drawing
* Type of construction IMB20
* Moment of inertia of rotor according to the shaft drawing
* Location and direction of terminal box according to user
* Cable gland according to user
* Weight of machine according to drawing
* Radio interference suppression degree N (VDE standard)
* Type of protection
Generator IP23
Terminal box IP44
6\Bearing
* Bearing Rolling bearing / Sliding bearing
Our company was set up in 1997. We own consummate one technology engineer team. We concentrate efforts on generators&diesel parts selling. We own many country patent technologies. In almost annual short time, our products of generators parts&diesel were enter a lot of important Chinese field and arrives at world everywhere outlet already. Rely on fine quality and reputation our products have gained very good valuation in the world.
One, our generators parts main following,
A, Various different accessory of Siemens 1FC2, 1FC4, 1FC5, 1FC6 series alternators. That made by Germany Siemens, CSIEM-CSIC China and HYUNDAI Korea.
B, AVRs(Automatic Voltage Regulator) and many kinds of genuine parts for STAMFORD alternators (BC, UC, HC, LV6 series) that Made in UK or China mainland.
C, AVRs(Automatic Voltage Regulator) for Marathon(USA) & LEROY SOMER (France) generators.
D, All kinds of genuine parts for CUMMINS, Volvo PENT, MAN and
DALHATSU diesels. Main is Electrical governors and actuators.
Also we can provide the technology hold out for free if you order our products.
We will provide the perfect service and technology hold out for free if you order our products.
Our quality control system has already pass United Kingdom international mass attestation centre ISO9001: 2000 UKAS quality system certification. Now they are used the different in many important field. Our valves have exported to a lot of countries of the world already. Such as Asia, Europe, America and Africa. They are very welcomed for high quality and best price.
Since using the advanced technology and science manage, we can provide the world first-rate the quality product and consummate service. The customer is our god.
