Regis's all-new directional valves are available in two-way, three-way configurations in port sizes from M5 to 1/2". Select either a direct-acting poppet or solenoid-controlled pilot operated balanced spool design. Spool valves are body ported but can be bolted to a parallel circuit manifold.
These electronic valves offer high flow in a small package, and are constructed of aluminum, stainless steel and thermoplastic materials. The four-way valves are also available in 3 position versions with either pressure center, closed center or exhaust center spool options.
Materials: Aluminum, Stainless Steel, Thermoplastic
Maximum Pressure: Vacuum to 150 psig (direct acting only); 20 to 125 psig (spool valves)
Response Time: Less than 20 ms
Mounting: Manifold standard.
Manual Override: Locking or non-locking
Electrical Connection: DIN terminal with LED Indicator or Wire Lead
Temperature Range: 0 to 65°C (32° to 150°F)
Seals: Buna-N
------------------------------------------------------------------------------------------

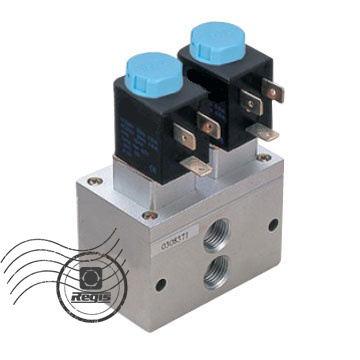

Low pressure 4/2 Solenoid valve for Medical Use
Two Position Four Way
Technical Data
Model | MP-08 |
| Type | Four Way-Two Position |
| Working Medium | Air(40um Micron Filtered) |
| Acting Type | Internally Piloted Type |
| Working Pressure | 0.035~0.35MPa |
| Working Temperature | -5~80ºC |
| Insulation Grade | IP65 |
