Longfian Scitech Co. Ltd is a professional manufacturer specializing in producing medical serial oxygen concentrator & its spare parts. Our products have exported to more than 60 countries and won a good reputation in the international market.

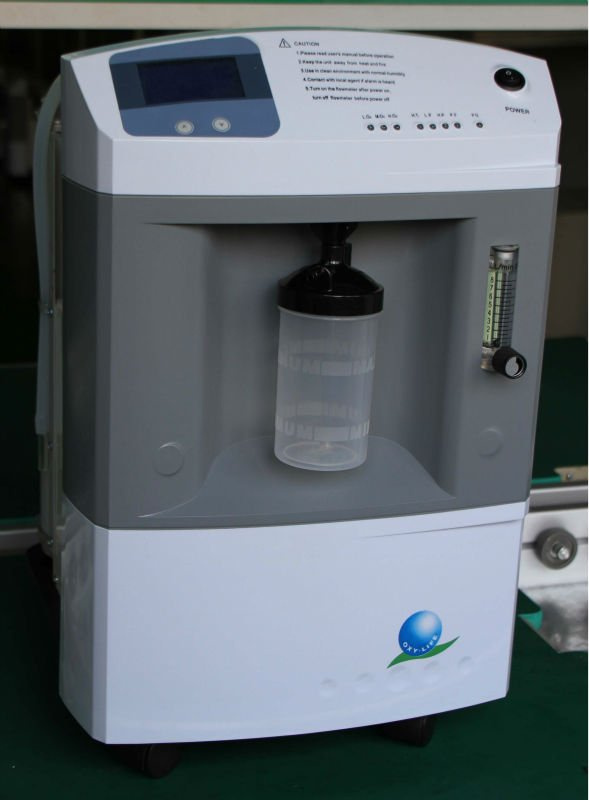

Low Noise & High Efficiency 5L Oxygen Concentrator
CE approval
Oxygen flow: 0-5 L/min
Oxygen concentration: 93%± 3%
Easy and automatic operation
Constant oxygen concentration output
Usage: It is widely used for home care, hospitals, clinics, beauty salon and sports, etc.
Model |
JAY-5Q |
Flow Rate |
0-5L/min |
Purity |
93±3% |
Outlet Pressure (Mpa) |
0.04-0.07 |
Sound Level |
≤40db |
Power |
AC220V±10%, 50/60±1Hz; AC110V±10%, 50/60±1Hz |
Power Consumption |
≤350W |
Timer |
Present Working Time, Accumulating Time, Presetting Time from 10mins to 40hours |
Alarm |
Power failure alarm, High&Low pressure alarm |
Net Weight |
21Kgs |
Size (mm) |
365×375×600mm |
Optional: |
*Nebulizer |
*Low purity alarm: when oxygen purity is above 82%, it will give green light; when the purity is blow 82%( 82% not included), it will give red light |
*Maintenance alarm: alarm for maintenance after 3000 hours operation |
*Alarm for high temperature inside systems above 50 degree. |
*Pulse oximeter: fingertip pulse oximeter is available for monitoring patient oxygen saturation on site. |
*Small LCD display: accumulating time; present working time presetting time. *Dual Flows |
Longfian Scitech Co., Ltd, located in Longxing Building A(413), 77 Longxing Road, 071051 Baoding China, The company has first-class professional management personnel and research&development technical team, with their own product development capabilities, mainly engaged in medical molecular sieve oxygen concentrator as well as assorting the development of electronic products, now has a variety of standard models and a variety of uses oxygen concentrator, has successfully developed JAY-1, JAY-2, JAY-3, JAY-5, JAY-6, JAY-8, JAY-10 type normal pressure medical oxygen concentrator, JAY-10-4.0, JAY-15-4.0, JAY-20-3.5 with 0.14 ~ 4KG pressure of high-pressure oxygen concentrator, industrial oxygen concentrator and ozone generator etc.; The product has got EU's CE certificate, ISO certificate and FDA certificate, and exported to the United States, France, Spain, Germany, Russia, India, Singapore, Turkey, Thailand etc. More than 60 countries and regions, enjoy a high reputation in Foreign markets
In recent years, the company has joined OEM companies and developed some related medical products for the demands of market, especially for pulse oximeter, SpO2&Blood pressure monitor, SpO2&ECG monitor, syringe pump, infusion pump, etc.
Our goal is "PROFESSIONAL IN QUALITY, FOCUS ON RESPIRATORY PRODUCTS ", to meet the demands of various specialists of medical field and continue to bring you not just the innovative equipment but also the most reliable, long-lasting & quality products.
