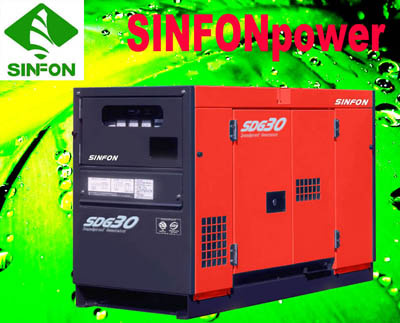

Low Noise Diesel Generator Set (SDG30)
Cummins silent diesel generator set
low noise diesel Generator Set (SDG30)
Power by cummins diesel engine. This type is stable and delicate, suitable for industrial use.
Terms of payment: T/T or L/C
| Model | SDG30 | SDG40 | SDG50 | SDG60 | SDG80 |
| Prime power(Kw/Kva) | 20/25 | 30/37.5 | 34/42.5 | 40/50 | 50/62.5 |
| Standby power(Kw/Kva) | 22/27.5 | 33/41 | 37.5/47 | 44/55 | 55/69 |
| Engine Type | 4B-3.9G | 4BT-3.9G | 4BTA-3.9G | 4BTA-3.9G | 4BTA-3.9G |
| Displacement (L) |
3.9
super silent low noise diesel Generator Set (SDG30)
| 3.9 | 3.9 | 3.9 | 3.9 |
| Bore* Stroke (mm) | 102*120 | 102*120 | 102*120 | 102*120 | 102*120 |
| Cylinder Number | 4-In Line | 4-In Line | 4-In Line | 4-In Line | 4-In Line |
| Governor Type | Electric | Electric | Electric | Electric | Electric |
| Alternator Type | STAMFORD/ BCI184F1 | STAMFORD/ BCI184H1 | STAMFORD/ UCI224C1 | STAMFORD/ UCI224D1 | STAMFORD/ UCI224D1 |
| Connecting method | 3 Phase and 4 Wires, “Y” type connecting | 3 Phase and 4 Wires, “Y” type connecting | 3 Phase and 4 Wires, “Y” type connecting | 3 Phase and 4 Wires, “Y” type connecting | 3 Phase and 4 Wires, “Y” type connecting |
| Exciting Type | Brushless, Self-exciting | Brushless, Self-exciting | Brushless, Self-exciting | Brushless, Self-exciting | Brushless, Self-exciting |
| Insulation class | H | H | H | H | H |
| Fuel Consumption (L/H) | ≤6.3 | ≤8.8 | ≤10 | ≤10 | ≤14.2 |
| Low-Noise Level(db in 7m) | 70 | 70 | 70 | 70 | 70 |
| Net/Gross weight(kg) | 750 | 780 | 820 | 820 | 1100 |
| Packing Size(mm) | 1920*750*1400 | 1920*750*1400 | 1950*750*1500 | 1950*750*1500 | 1950*750*1500 |
Sinfon Power was founded in 1985 with more than 20 years of rich experience in manufacturing generating sets. In terms of technology or scope, Sinfon always keeps ahead of the domestic competitors even the competitors from the world.
With a fixed asset of RMB 200 million and a total area of 50, 000 square meters, Sinfon is a leading manufacturer providing complete solutions for diesel generating sets, gas generating sets, biotic energy generating sets, solar photovoltaic generating sets and the related matching equipments. Its yearly annual capacity has reached 2, 000 sets above.
Sinfon has been appointed as O. E. M. Partner by internationally reputed engine providers including VOLVO PENTA, PERKINS, CUMMINS and renowned alternator makers NEWAGE STAMFORD. We have obtained the ISO2000 Quality Management Approval and CE certificate.
It is the earliest domestic manufacturer to have attained Access License for oil field system and Network License for telecom devices issued by the IT industry department. It is also one of the earliest manufacturers to have executed production standards ISO8528 for diesel generating sets.
