PV Controller
Charge current: 10A
Rated charging voltage: 12VDC
Compulsive charging voltage: 14.8V
Balanced charging voltage: 14.4V
Floating charging voltage: 13.8V
Recovery charging voltage: 13.3V
Battery overvoltage protection/recovery: 16.5V/15V
Protection function: Reverse connection, short circuit, overcharge, anti charge protection
Display: LED

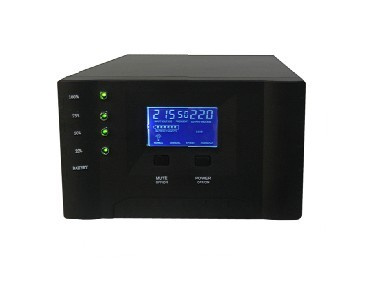

PV Inverter
Rated Capacity: 350W/500W
DC voltage: 12V
Under-voltage protection: 10.5V
Inverter structure: Power frequency structure
Mains input: 100V/110V/120V/127V/220V/230V/240V(± 25%)
Inverter output: 100V/110V/120V/127V/220V/230V/240V(± 2%)
Mains input charging current: 10A
Conversion time: 4ms
Conversion efficiency: ≥ 80%
Output waveform: Pure sine wave
Display: LCD
Output waveform distortion: ≤ ± 0.3%
Product Size(mm): 320× 210× 125mm
G. W(KG): 7KG/9KG
Shenzhen Boruifeng Technology Co., Ltd. Was established in 2003; Is a professional enterprise engaged in the R&D, sales and manufacturing of inverter products such as solar charge controllers, solar off-grid solar inverters, a variety of pure sine wave power inverters, modified wave inverters, household inverters, communications inverters, solar photovoltaic power generation systems, DC/DC converter power supplies and battery chargers, etc. Our products are widely used in solar power generation supply, industrial and household power inverter supply, communication and shipping, refrigerator trucks, mining, railroad locomotives and other areas of inverter and transforms power supply industry manufacturing enterprises.
Our products are widely sold in Europe and United States and other oversea areas. Our service objective is to pursue zero defect and competitive prices for the majority of customers to provide high quality services. The main products are: DC12V, 24V, 36V, 48V, 60V, 72V to AC220V, 110V, 240V, etc. Covering 75W to 3000W various types of power inverters. All products have pass UL, CE, PSE, CCC and other security approvals.
