Key advantages:
1. CPU intelligent management,
2. All wires use copper
3. Circuit board with three sections(dust-proof. Insect proof, moistureproof)
4. Latest American technical inverter,
5. Adopted best electronic components, stable quality, long-life,
6. The high conversion efficiency( 90%-99%),
7. Low power consumption, 1W~6W under sleep state.

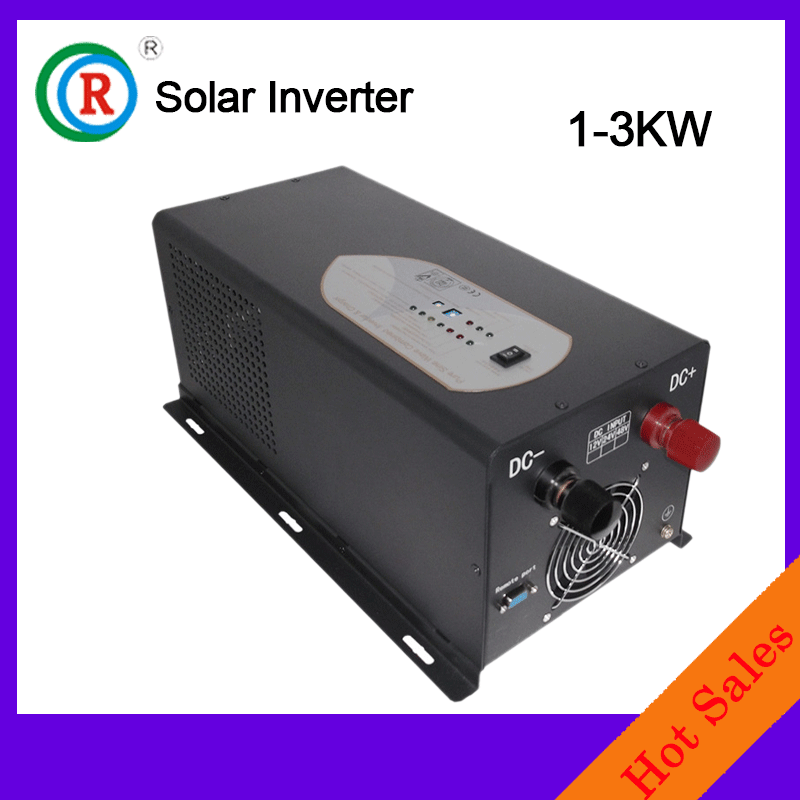

The product features of Solar / wind power inverter
<1>. Pure sine wave output;
<2. > Built-in transfer switch automatically transfers between inverter power and incoming AC power.
<3>. CPU management, intelligent control, module design.
<4>. LED/LCD display function;
<5>. High conversion efficiency (between 90%-98%)\/ low no load consumption.
<6>. Can match with all kinds of batteris, such as sealed lead acid battery, open lead acid battery, gel battery and kinds of lithium batteries.
<7>. Three-step intelligent charging mode available. It charges all kinds of batteries intelligently. And the maximum charging current is adjustable.
It also can be used as a charger.
<8>. This series inverter is also called dynamic inverter according to the advantage of strong overload capacity. For example, 1KW model can drive 1P air conditioning. 2KW can drive 2P air conditioning, 3KW can drive3P air conditioning etc.
<9>. With adopting latest American low frequency circuit design, and new electronic materials, the whole system is more stable, low malfunction rate, long-life. It is no problem to use for more than 8 years under the normal use.
<10>. One year warranty plus life-time service.
Protection: High voltage protection
Under-voltage protection
Low-temperature shutdown
Automatic overload protection
Short-circuit protection
Payment: T/T in advance
| Model | Specification |
| 1012 | 1024 | 2012 | 2024 | 3012 | 3024 | 3048 | 4024 | 4048 | 5024 | 5048 | 6024 | 6048 |
| Input voltage | 110Vac/120Vac/220Vac/230Vac |
| Input voltage range | 88~127Vac/165~255Vac |
| Output voltage | Depend on the batter type |
| Charge current | 35A | 20A | 65A | 35A | 75A | 45A | 30A | 35A | 35A | 35A | 40A | 75A | 50A |
| Charging the inverter for intelligent charging; , The size of the charge current is determined by the: The regulation of the inverter\Capacity of the battery at\battery voltage |
| Charge current correction | ± 5A |
| Initial Charge Voltage | Normal batteryvoltage 9.0 ~ 15.7V / 18.0 ~ 31.4V / 36.0 ~ 62.8V |
| Charger short-circuit protection | Circuit Breaker |
| Circuit breaker | 10A | 20A | 30A | 40A |
| Over voltage protection | When the battery voltage > 15.7Vdc/31.4Vdc/62.8Vdc, every second sounds 0.5 second, it breaks down after 60 seconds. |
| model | Net weight
(KG) | gross weight
(KG) | product size
(L*W*H)MM | package size
(L*W*H)MM |
|
| 1KW | 12 | 13 | 358*188*168 | 480*330*285 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| For reference only, if there is a change without notice |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
