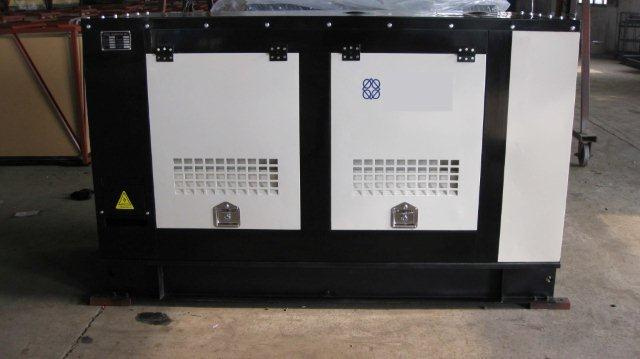

Lovol Diesel Generator 72kw/90kVA (ADP72L)

Lovol Diesel Generator 72kw/90kVA (ADP72L)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Composed of LOVOL diesel engine and Stamford or Leroy somer alternator

Oil and fuel filter fitted, water separator

Lube-oil drain valve fitted

Electric Starter Charge motor 24 VD.C

Water-cooled

8-hours operation base tank

Auto start

Optional soundproof and weatherproof canopy

3 pole MCCB Delixi breaker

Operation & Maintenance manual

Special Integrated Steel Base tank and sprayed overall in gloss enamel paint

Voltage Regulation:

Voltage regulation maintanined within ±0.5%

Between 0.8 and 1.0 lagging and unity

From no load to full load

At speed droop variation upto 4.5%

Frequency Adjustable Ratio:

Change load from 0-100%, within 1.0%( electric speed regulator), within 4.5%( mechanical speed regulator)

Frequency Undulation:

Load from 0-100%, frequency undulation within 0.25%

No load wire volts max undulation ration\ within 1.8% Three Phrase balanced load in the order of 5%

Effect factor of Telecom

TIF better than 50

THF to IEC60034 Part 40 better than 2%

Generating Sets Optional Features

Low fuel level alarm shutdown

Automatic Fuel Filling System ΔEngine oil feeding and drain pump Auto Transfter Switch( ATS)

Parallel control panels

Circuit Breaker MCCB & ACB

Remote Control Panel

Weatherproof/soundproof Canopy

Trailer type Gensets

Quality Standards

ISO9001:2000, ISO14000, ISO3046

ISO8528 BS4999

BS5514, AS1359, ICE34

CE Compliance

Gensets Dimensions & Weight

Open type:LxWxH (mm) Net Weight Kgs

2350X820X1650, 1040KGS

Open type:LxWxH (mm) Net Weight Kgs

2900X1080X1750, 1250KGS
POWER RATING                                                                                                    PRIME                          STANDBY

POWER
kVA 90 100
kW 72 80
Rated Speed r. p. m 1500
Standard Voltage V 400
Available Voltages V 400/230 - 230/132 - 230 V
Rated at power factor Cos Phi 0.8
ENGINE                                                                                                                                      PRP                              STANDBY
Rated Output kW 84.3 92.7
Manufacturer   LOVOL
Model   1006TG1A
No. of Cylindirs and Build   4 Cycle; In-line; 6 Cylinder Diesel

Aspiration and Cooling

Turbocharged
Bore/Stroke mm 100X127
Compress the ratio   17.5: 1
Cooling system   Water-cooled
Engine Speed/Frequency rpm/Hz 1500/50HZ
Coolant Capacity L 29.5
Starting System   Electric 24 volt DC
Displacement L 5.99
Lubricant system Capacity L 16.1
Battery Volatge / Capacity   24VDC
Governing Type Type Mechanical
Air Filter Type Dry

Fuel Consumption
Load 100% 75% 50% 25%
L/h 16.0


ALTERNATOR BRAND                                                              LEROY SOMER      STAMFORD
Model   LSA44.2VS3 UCI274C
Exciter System   Self-excited, brushless
Poles Num 4
Cooling Fan   Cast alloy aluminum
Bearing   Single, double shielded
Windings   100% copper
Connection Type   Reconnectable
Insulation Type Class Class H
Pitch   2/3
Amortisseur Winding   Full
Voltage Regulator   A. V. R. (Electronic)
Steady Voltage Precision   ± 1%
Underspeed Protection   Standard
Overexcitation Protection   IP23

TIF (1960 Weightings)

< 50
Prod Model: ADP72L
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type: AC Three Phase
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Micro-Computer Control Automatic Diesel Generator
